111-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN IC SKT DBL

Part	Current Rating (Amps)	Contact Resistance	Material Flammability Rating	Termination Post Length	Termination Post Length	Contact Material - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Post	Mounting Type	Features	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [y]	Pitch - Post	Pitch - Post	Operating Temperature [Min]	Operating Temperature [Max]	Type	Type	Type	Pitch - Mating	Pitch - Mating	Housing Material	Contact Finish - Mating	Termination	Type [custom]	Type [custom]	Number of Positions or Pins (Grid)
Mill-Max Manufacturing Corp. 111-43-950-61-001000	3 A	10 mOhm	UL94 V-0	0.125 in	3.18 mm	Beryllium Copper	200 µin	5.08 µm	Brass Alloy	Through Hole	Open Frame	Tin	0.76 Ám	30 Áin	2	50	25	0.1 in	2.54 mm	-55 C	125 °C	DIP	22.86 mm	0.9 in	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder
Mill-Max Manufacturing Corp. 111-43-628-61-001000	3 A	10 mOhm	UL94 V-0	0.125 in	3.18 mm	Beryllium Copper	200 µin	5.08 µm	Brass Alloy	Through Hole	Open Frame	Tin	0.76 Ám	30 Áin				0.1 in	2.54 mm	-55 C	125 °C	DIP			0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder	15.24 mm	0.6 in	28
Mill-Max Manufacturing Corp. 111-43-308-61-001000	3 A	10 mOhm	UL94 V-0	0.125 in	3.18 mm	Beryllium Copper	200 µin	5.08 µm	Brass Alloy	Through Hole	Open Frame	Tin	0.76 Ám	30 Áin	2		4	0.1 in	2.54 mm	-55 C	125 °C	DIP	7.62 mm	0.3 in	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder			8
Mill-Max Manufacturing Corp. 111-43-624-61-001000	3 A	10 mOhm	UL94 V-0	0.125 in	3.18 mm	Beryllium Copper	200 µin	5.08 µm	Brass Alloy	Through Hole	Open Frame	Tin	0.76 Ám	30 Áin	12		2	0.1 in	2.54 mm	-55 C	125 °C	DIP			0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder	15.24 mm	0.6 in	24

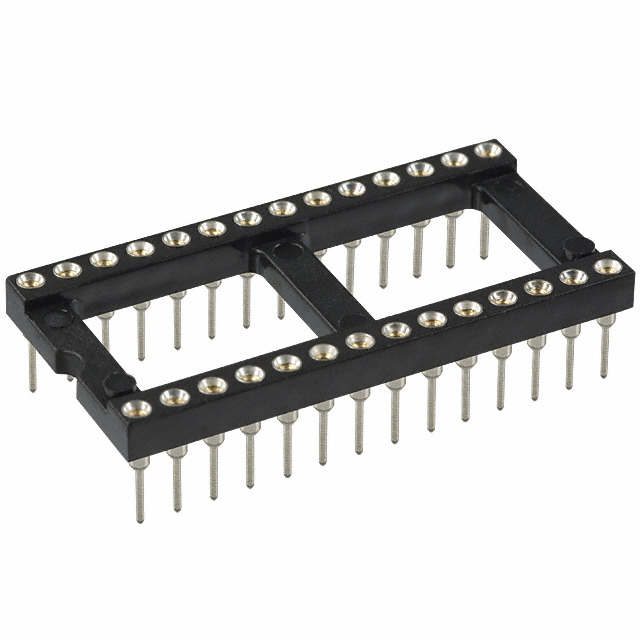

Mill-Max Manufacturing Corp. 111-43-628-41-001000	3 A			0.125 in	3.18 mm	Beryllium Copper	200 µin	5.08 µm	Brass Alloy	Through Hole	Open Frame	Tin	0.76 Ám	30 Áin				0.1 in	2.54 mm	-55 C	125 °C	DIP			0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder	15.24 mm	0.6 in	28
Mill-Max Manufacturing Corp. 111-43-314-61-001000	3 A	10 mOhm	UL94 V-0	0.125 in	3.18 mm	Beryllium Copper	200 µin	5.08 µm	Brass Alloy	Through Hole	Open Frame	Tin	0.76 Ám	30 Áin				0.1 in	2.54 mm	-55 C	125 °C	DIP	7.62 mm	0.3 in	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder			14

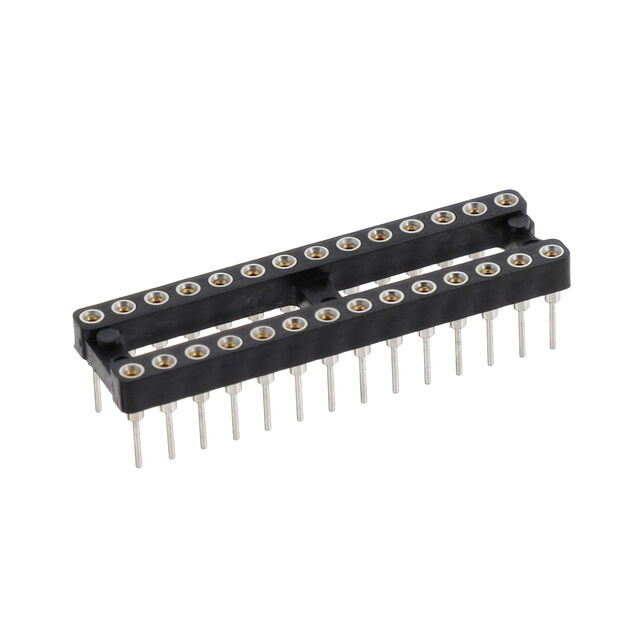

Mill-Max Manufacturing Corp. 111-43-328-41-001000	3 A	10 mOhm	UL94 V-0	0.17 in	4.32 mm	Beryllium Copper	200 µin	5.08 µm	Brass Alloy	Through Hole	Open Frame	Tin	0.76 Ám	30 Áin				0.1 in	2.54 mm	-55 C	125 °C	DIP	7.62 mm	0.3 in	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder			28
Mill-Max Manufacturing Corp. 111-43-424-61-001000	3 A	10 mOhm	UL94 V-0	0.125 in	3.18 mm	Beryllium Copper	200 µin	5.08 µm	Brass Alloy	Through Hole	Open Frame	Tin	0.76 Ám	30 Áin	12		2	0.1 in	2.54 mm	-55 C	125 °C	DIP		0.4 in	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder			24
Mill-Max Manufacturing Corp. 111-43-422-61-001000	3 A	10 mOhm	UL94 V-0	0.125 in	3.18 mm	Beryllium Copper	200 µin	5.08 µm	Brass Alloy	Through Hole	Open Frame	Tin	0.76 Ám	30 Áin	2		11	0.1 in	2.54 mm	-55 C	125 °C	DIP		0.4 in	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder			22
Mill-Max Manufacturing Corp. 111-43-322-61-001000	3 A	10 mOhm	UL94 V-0	0.125 in	3.18 mm	Beryllium Copper	200 µin	5.08 µm	Brass Alloy	Through Hole	Open Frame	Tin	0.76 Ám	30 Áin	2		11	0.1 in	2.54 mm	-55 C	125 °C	DIP	7.62 mm	0.3 in	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder			22
