5182-4PG Series

Catalog

MULTI-CON CABLE-CABLE #12 SOLDER

Part	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Primary Material	Features	Ingress Protection	Color	Contact Material	Orientation	Mounting Type	Fastening Type	Voltage Rating	Backshell Material, Plating	Contact Finish - Mating	Shielding	Connector Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]
SWITCHCRAFT/CONXALL 5182-4PG-318	4.57 mm	0.18 "	0.2 "	5.08 mm	Plastic	Backshell	Weathertight	Black	Brass	Keyed	Free Hanging (In-Line)	Bayonet Lock	600 V	Nylon Polyamide (PA)	Gold	Unshielded	Receptacle Male Pins	4	115 °C	-40 C
SWITCHCRAFT/CONXALL 5182-4PG-524	6.1 mm	0.24 "	0.27 "	6.86 mm	Plastic	Backshell Cable Clamp	Weathertight	Black	Brass	Keyed	Free Hanging (In-Line)	Bayonet Lock	600 V	Nylon Polyamide (PA)	Gold	Unshielded	Receptacle Male Pins	4	115 °C	-40 C
SWITCHCRAFT/CONXALL 5182-4PG-518	4.57 mm	0.18 "	0.2 "	5.08 mm	Plastic	Backshell Cable Clamp	Weathertight	Black	Brass	Keyed	Free Hanging (In-Line)	Bayonet Lock	600 V	Nylon Polyamide (PA)	Gold	Unshielded	Receptacle Male Pins	4	115 °C	-40 C
SWITCHCRAFT/CONXALL 5182-4PG-530	7.62 mm	0.3 in	0.32 in	8.13 mm	Plastic	Backshell Cable Clamp	Weathertight	Black	Brass	Keyed	Free Hanging (In-Line)	Bayonet Lock	600 V	Nylon Polyamide (PA)	Gold	Unshielded	Receptacle Male Pins	4	115 °C	-40 C
SWITCHCRAFT/CONXALL 5182-4PG-515	3.81 mm	0.15 "	0.17 in	4.32 mm	Plastic	Backshell Cable Clamp	Weathertight	Black	Brass	Keyed	Free Hanging (In-Line)	Bayonet Lock	600 V	Nylon Polyamide (PA)	Gold	Unshielded	Receptacle Male Pins	4	115 °C	-40 C

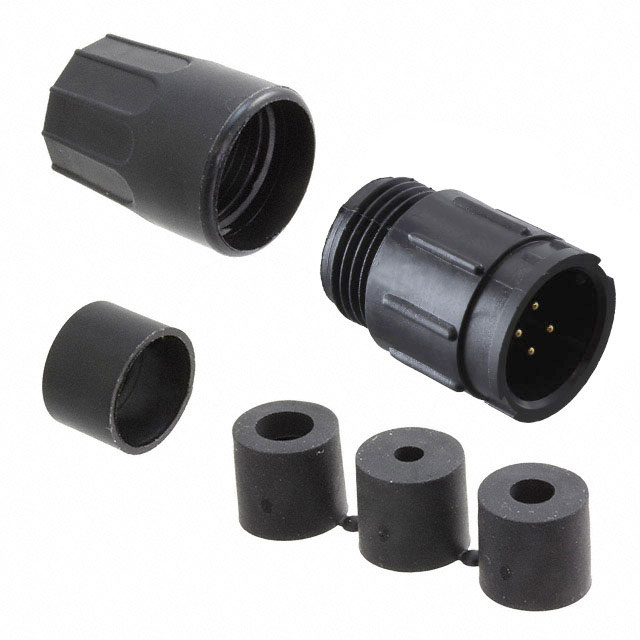

SWITCHCRAFT/CONXALL 5182-4PG-3DC					Plastic	Backshell	Weathertight	Black	Brass	Keyed	Free Hanging (In-Line)	Bayonet Lock	600 V	Nylon Polyamide (PA)	Gold	Unshielded	Receptacle Male Pins	4	115 °C	-40 C
SWITCHCRAFT/CONXALL 5182-4PG-321	5.33 mm	0.21 in	0.23 in	5.84 mm	Plastic	Backshell	Weathertight	Black	Brass	Keyed	Free Hanging (In-Line)	Bayonet Lock	600 V	Nylon Polyamide (PA)	Gold	Unshielded	Receptacle Male Pins	4	115 °C	-40 C
