1571563 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Operating Force	Switch Travel	Actuator Material	Circuit	Mounting Type	Mechanical Life	Termination Style	Switch Function	Outline [y]	Outline [x]	Actuator Type	Illumination	Actuator Orientation	Actuator Height off PCB, Vertical	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]
TE Connectivity Raychem Cable Protection 1571563-2	70 gf	0.25 mm	Nylon Polyamide (PA)	SPST-NO	Surface Mount	1000000 Cycles	Gull Wing	Off-Mom	6 mm	6 mm	Standard	Non-Illuminated	Top Actuated	5 mm	-35 °C	85 °C	0.05 A 24 VDC

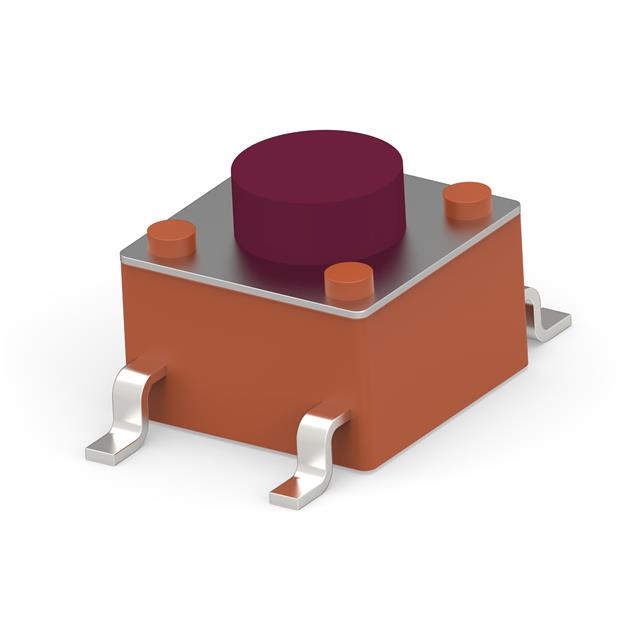

TE Connectivity Raychem Cable Protection 1571563-1	70 gf	0.25 mm	Nylon Polyamide (PA)	SPST-NO	Surface Mount	1000000 Cycles	Gull Wing	Off-Mom	6 mm	6 mm	Standard	Non-Illuminated	Top Actuated	5 mm	-35 °C	85 °C	0.05 A 24 VDC
TE Connectivity Raychem Cable Protection 1571563-5	260 gf	0.25 mm	Nylon Polyamide (PA)	SPST-NO	Surface Mount	100000 Cycles	Gull Wing	Off-Mom	6 mm	6 mm	Standard	Non-Illuminated	Top Actuated		-35 °C	85 °C	0.05 A 24 VDC	13 mm
TE Connectivity Raychem Cable Protection 1571563-8	100 gf	0.25 mm	Polyphenylene Sulfide (PPS)	SPST-NO	Surface Mount	1000000 Cycles	Gull Wing	Off-Mom	6 mm	6 mm	Standard	Non-Illuminated	Top Actuated	5 mm	-35 °C	85 °C	0.05 A 24 VDC

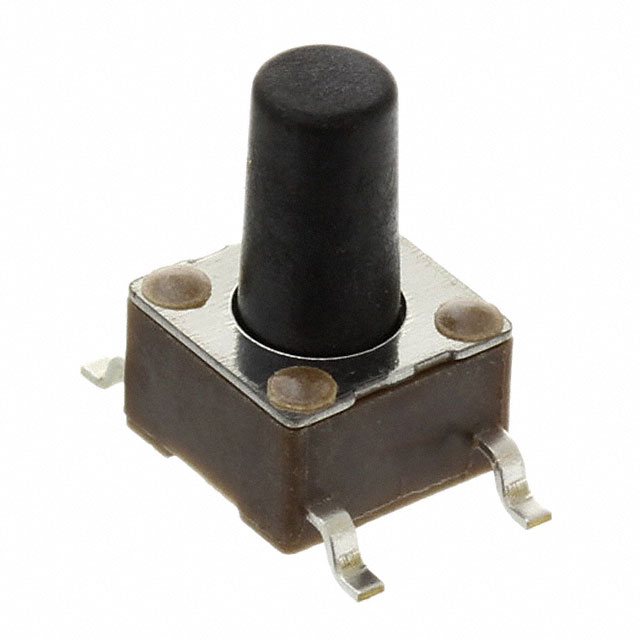

TE Connectivity Raychem Cable Protection 1571563-9		0.25 mm	Polyphenylene Sulfide (PPS)	SPST-NO	Surface Mount	100000 Cycles	Gull Wing	Off-Mom	6 mm	6 mm	Standard	Non-Illuminated	Top Actuated	9.5 mm	-35 °C	85 °C	0.05 A 24 VDC
