RAC03-GB Series

Catalog

AC/DC POWER MODULES 3W 85-305VIN 3.3VOUT 910MA SINGLE OUT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Approval Agency	Current - Output (Max) [Max]	Power (Watts)	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Mounting Type	Number of Outputs	Package / Case	Load Regulation	Weight [custom]	Weight [custom]	Line Regulation
Recom Power RAC03-3.3SGB	-40 °C	85 °C	Enclosed	CE cURus	910 mA	3 W	ITE (Commercial)	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	70 %	305 VAC	85 VAC	3.3 V	Through Hole	1	16-DIP Module 5 Leads

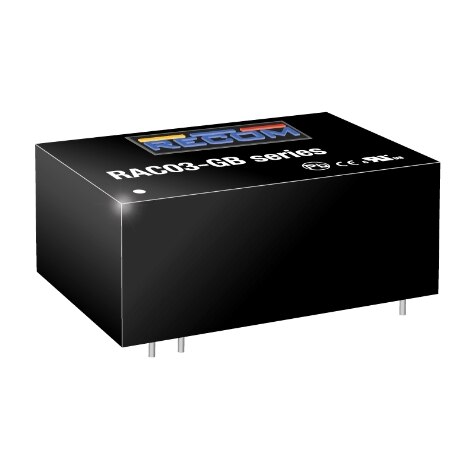

Recom Power RAC03-15SGB	-40 °C	85 °C	Enclosed	CE cURus	200 mA	3 W	ITE (Commercial)	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	78 %	305 VAC	85 VAC	15 V	Through Hole	1	16-DIP Module 5 Leads
Recom Power RAC03-12SGB	-40 °C	85 °C	Enclosed	CE cURus	250 mA	3 W	ITE (Commercial)	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	78 %	305 VAC	85 VAC	12 V	Through Hole	1	16-DIP Module 5 Leads	0.5 %	0.044 lb	19.96 g	0.5 %

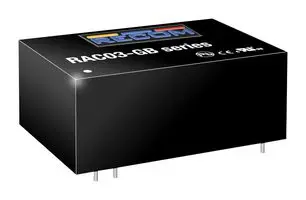

Recom Power RAC03-05SGB	-40 °C	85 °C	Enclosed	CE cURus	600 mA	3 W	ITE (Commercial)	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	72 %	305 VAC	85 VAC	5 V	Through Hole	1	16-DIP Module 5 Leads
Recom Power RAC03-09SGB	-40 °C	85 °C	Enclosed	CE cURus	330 mA	3 W	ITE (Commercial)	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	77 %	305 VAC	85 VAC	9 V	Through Hole	1	16-DIP Module 5 Leads	0.5 %			0.5 %
Recom Power RAC03-24SGB	-40 °C	85 °C	Enclosed	CE cURus	130 mA	3 W	ITE (Commercial)	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	80 %	305 VAC	85 VAC	24 V	Through Hole	1	16-DIP Module 5 Leads
