10250 Series

Catalog

D SUB CONNECTOR, 50 CONTACTS, RECEPTACLE, IDC / IDT, 102 SERIES

Part	Number of Rows [custom]	Connector Style	Mounting Type	Termination	Number of Positions	Flange Feature	Features	Contact Finish	Connector Type	Contact Finish Thickness	Contact Finish Thickness

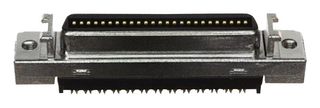

3M Electronic Specialty 10250-0210EC	2	Outer Shroud Contacts	Free Hanging (In-Line)	IDC	50	Housing/Shell (M2.6)	Shielded	Gold	Receptacle	30 Áin	0.76 Ám
3M Electronic Specialty 10250-55G3PC	2	Outer Shroud Contacts	Panel Mount Right Angle Through Hole	Solder	50	Housing/Shell (M2.6)	Board Lock Shielded	Gold	Receptacle	30 Áin	0.76 Ám
3M Electronic Specialty 10250-55H3VC	2	Outer Shroud Contacts	Panel Mount Right Angle Through Hole	Solder	50	Housing/Shell (4-40) Latchblocks	Board Lock Shielded	Gold	Receptacle	30 Áin	0.76 Ám

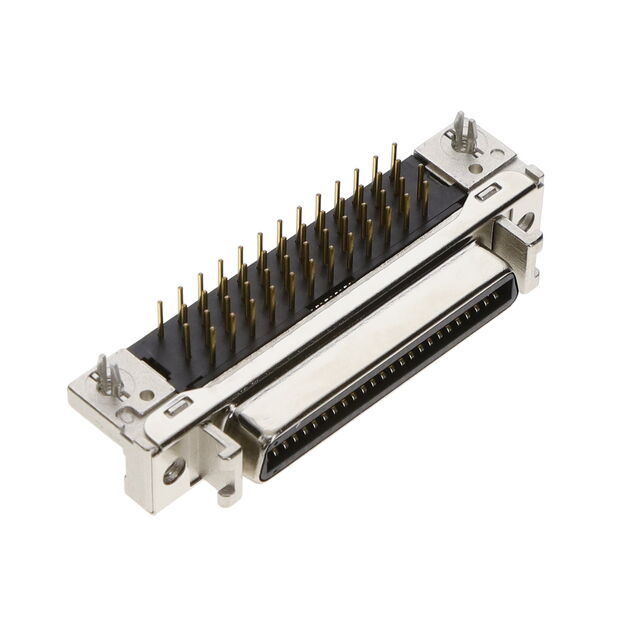

3M Electronic Specialty 10250-52B2PL

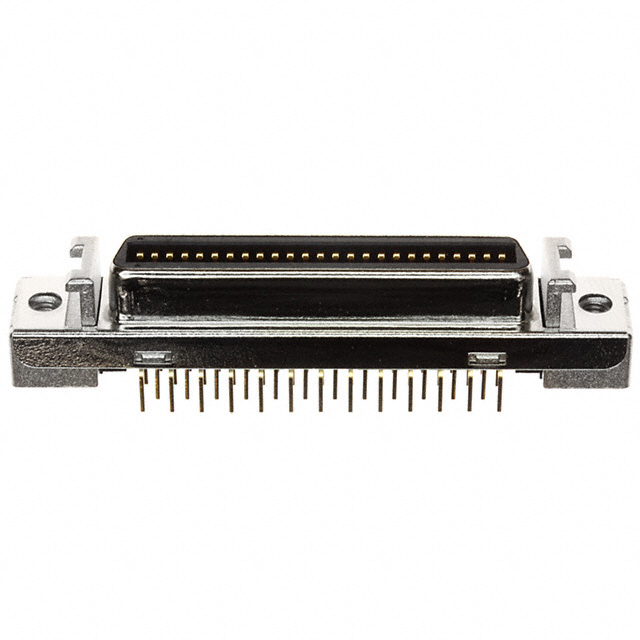

3M Electronic Specialty 10250-6212PC	2	Outer Shroud Contacts	Panel Mount Through Hole	Solder	50	Housing/Shell (M2.6)	Shielded	Gold	Receptacle	30 Áin	0.76 Ám
3M Electronic Specialty 10250-52A2PL	2			Solder				Gold	Receptacle	7.87 Áin	0.2 µm

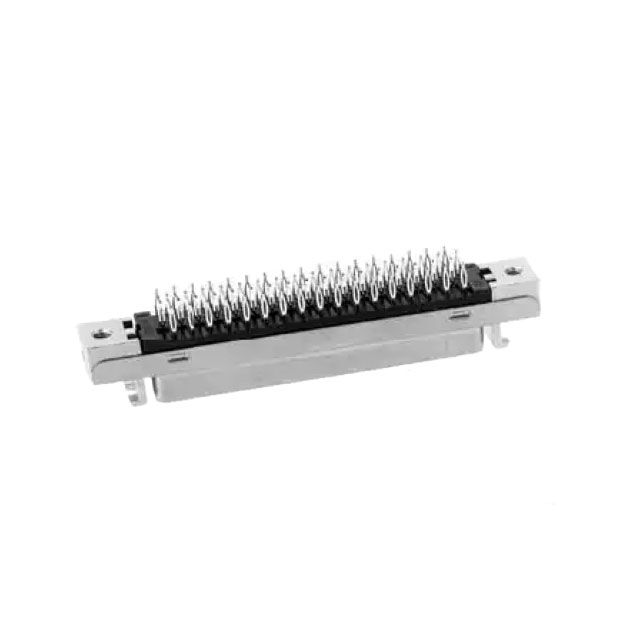

3M Electronic Specialty 10250-R21TS	2	Outer Shroud Contacts	Panel Mount Through Hole	Press-Fit	50	Housing/Shell (M2.6)	Shielded	Gold	Receptacle	30 Áin	0.76 Ám
3M Electronic Specialty 10250-52B2VE	2	Outer Shroud Contacts	Right Angle Through Hole	Solder	50	Housing/Shell (M2.6)	Board Lock Shielded	Gold	Receptacle	20 µin	0.51 µm
3M Electronic Specialty 10250-55F3PC	2	Outer Shroud Contacts	Panel Mount Right Angle Through Hole	Solder	50	Housing/Shell (M2.6)	Board Lock Shielded	Gold	Receptacle	30 Áin	0.76 Ám
3M Electronic Specialty 10250-6212PL	2	Outer Shroud Contacts	Panel Mount Through Hole	Solder	50	Housing/Shell Latchblocks	Shielded	Gold	Receptacle	7.87 Áin	0.2 µm
