PCA9539 Series

Catalog

IC XPND 400KHZ I2C SMBUS 24TSSOP

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Grade	Output Type	Clock Frequency	Current - Output Source/Sink [custom]	Current - Output Source/Sink [custom]	Package / Case	Package / Case	Interface	Qualification	Mounting Type
Freescale Semiconductor - NXP PCA9539PW/Q900,118	5.5 V	3 V	POR	16	125 °C	-40 °C	24-TSSOP	Automotive	Push-Pull	400 kHz	10 mA	25 mA	24-TSSOP	0.173 in 4.4 mm	I2C SMBus	AEC-Q100	Surface Mount

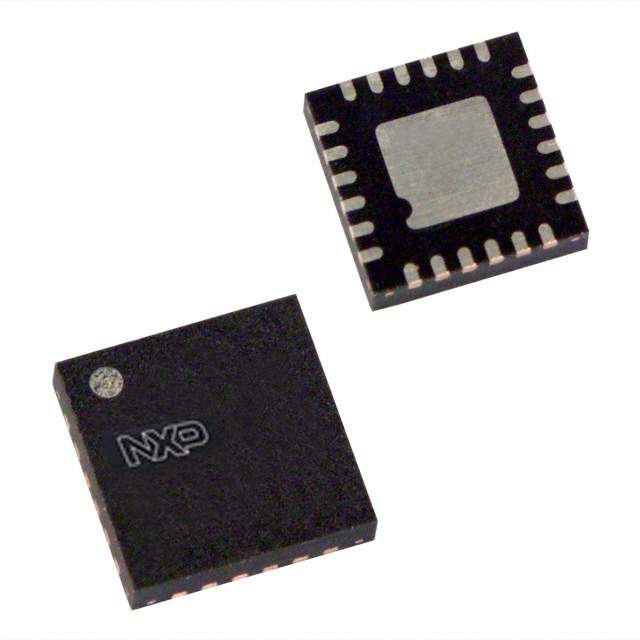

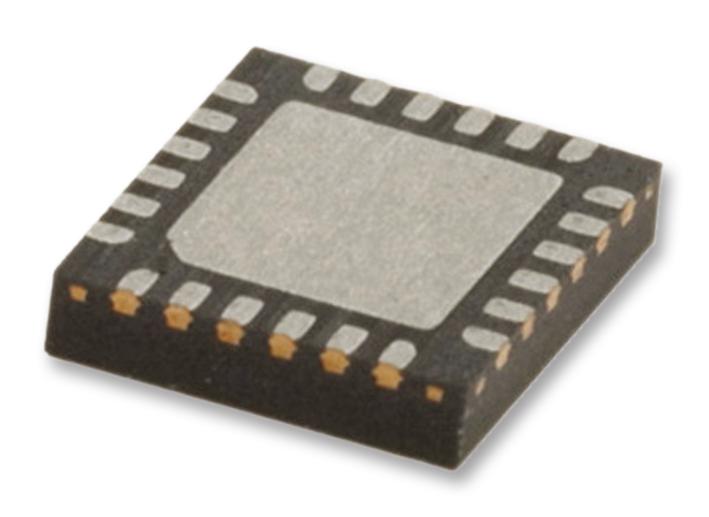

Freescale Semiconductor - NXP PCA9539BS,118	5.5 V	2.3 V	POR	16	85 °C	-40 °C	24-HVQFN (4x4)		Push-Pull	400 kHz	10 mA	25 mA	24-VFQFN Exposed Pad		I2C SMBus		Surface Mount
Freescale Semiconductor - NXP PCA9539BS,115	5.5 V	2.3 V	POR	16	85 °C	-40 °C	24-HVQFN (4x4)		Push-Pull	400 kHz	10 mA	25 mA	24-VFQFN Exposed Pad		I2C SMBus		Surface Mount
Freescale Semiconductor - NXP PCA9539AHF,128	5.5 V	1.65 V	POR	16	85 °C	-40 °C	24-HWQFN (4x4)		Push-Pull	400 kHz	10 mA	25 mA	24-WFQFN Exposed Pad		I2C SMBus		Surface Mount
