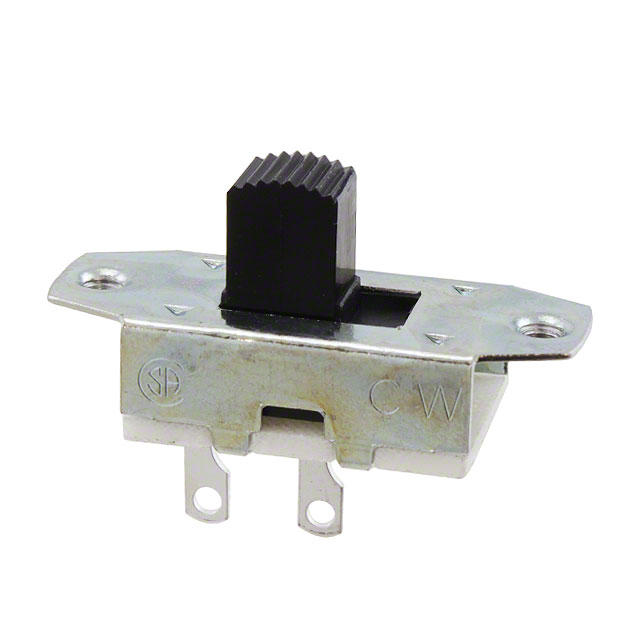

GF-323 Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH SLIDE SPST 3A 125V
| Part | Switch Travel | Mechanical Life | Electrical Life | Actuator Material | Contact Finish | Contact Material | Voltage Rating - DC | Circuit | Contact Timing | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Actuator Length [x] | Switch Function | Voltage Rating - AC | Mounting Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 4.01 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | Silver | Copper | 125 VDC | SPST | Not Specified | Standard | -10 °C | 104 °C | Solder Lug | 19.05 mm | On-Off | 125 V | Panel Mount | 3 A 500 mA |
CW Industries | 4.01 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | Silver | Copper | 125 VDC | SPST | Not Specified | Standard | -10 °C | 104 °C | Wire Wrap | 19.05 mm | On-Off | 125 V | Panel Mount | 3 A 500 mA |
CW Industries | 4.01 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | Silver | Copper | 125 VDC | SPST | Not Specified | Standard | -10 °C | 104 °C | Wire Wrap | 15.88 mm | On-Off | 125 V | Panel Mount | 3 A 500 mA |
 CW Industries | 3.89 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | Silver | Copper | 125 VDC | SPST | Not Specified | Standard | -10 °C | 104 °C | Solder Lug | 8.74 mm | On-Off | 125 V | Panel Mount | 3 A 500 mA |
CW Industries | 4.01 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | Silver | Copper | 125 VDC | SPST | Not Specified | Standard | -10 °C | 104 °C | PC Pin | 8.74 mm | On-Off | 125 V | Panel Mount | 3 A 500 mA |
CW Industries | 4.01 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | Silver | Copper | 125 VDC | SPST | Not Specified | Screwdriver Slot | -10 °C | 104 °C | Solder Lug | 0.79 mm | On-Off | 125 V | Panel Mount | 3 A 500 mA |
