CC6-2412 Series

Catalog

DC DC CNVRTR +/-12V TO +/-15V 6W

Part	Type	Current - Output (Max)	Applications	Voltage - Input (Min) [Min]	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Output 2 [Max]	Voltage - Output 2 [Min]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Control Features	Mounting Type	Current - Output (Max) [Max]

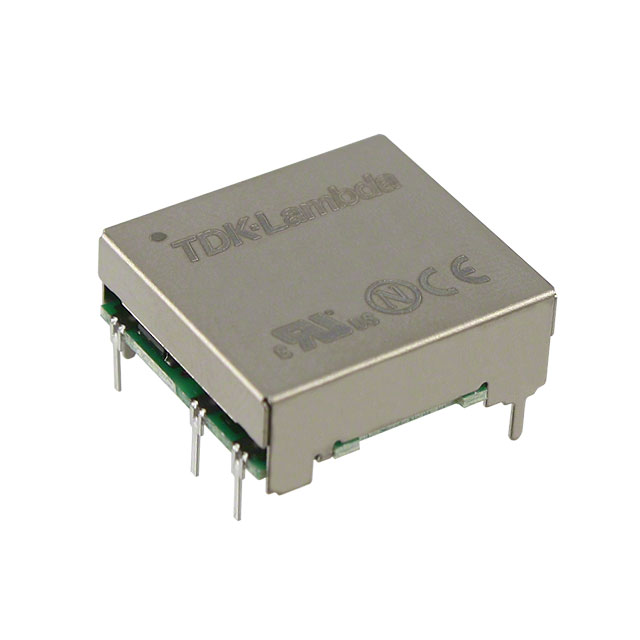

TDK Corporation CC6-2412DF-E	Isolated Module	250 mA	ITE (Commercial)	18 V	2	22.9 mm	21.1 mm	8.5 mm	0.83 "	0.34 in	0.9 in	15 V	12 V	6 W	36 V	-15 V	-12 V	500 V	85 °C	-40 C	7-DIP Module	Active Low Enable	Through Hole
TDK Corporation CC6-2412SF-E	Isolated Module		ITE (Commercial)	18 V	1	22.9 mm	21.1 mm	8.5 mm	0.83 "	0.34 in	0.9 in	15 V	12 V	6 W	36 V			500 V	85 °C	-40 C	7-DIP Module	Active Low Enable	Through Hole	500 mA

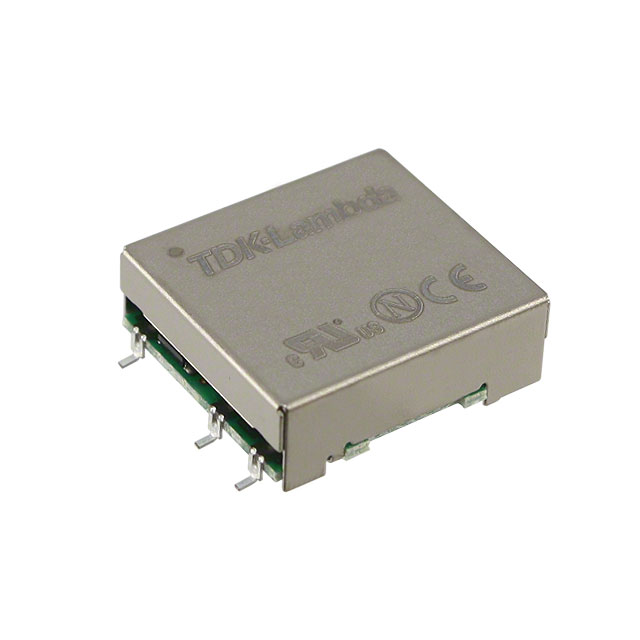

TDK Corporation CC6-2412DR-E	Isolated Module	250 mA	ITE (Commercial)	18 V	2	22.9 mm	21.1 mm	8.8 mm	0.83 "	0.35 in	0.9 in	15 V	12 V	6 W	36 V	-15 V	-12 V	500 V	85 °C	-40 C	7-SMD Module	Active Low Enable	Surface Mount
