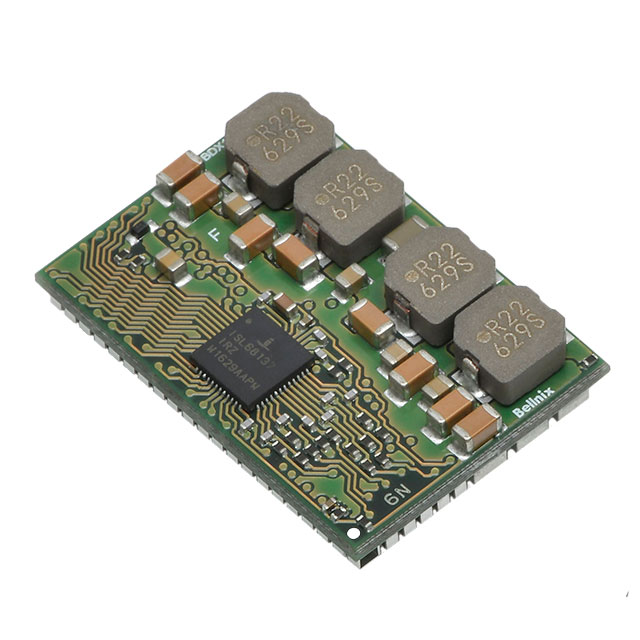

BDX12 Series
Manufacturer: Bellnix Co., Ltd.
Beta
⌘K
DC DC CONVERTER 1V
| Part | Voltage - Input (Max) [Max] | Package / Case | Current - Output (Max) [Max] | Voltage - Output 1 | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Applications | Mounting Type | Voltage - Input (Min) [Min] | Type | Number of Outputs | Features | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bellnix Co., Ltd. | 14 V | 41-SMD Module | 100 A | 1 V | 0.28 " | 7 mm | 1.29 in | 32.8 mm | 23 mm | 0.91 in | ITE (Commercial) | Surface Mount | 8 V | Non-Isolated PoL Module Digital | 1 | Adjustable Output PMBus™ Remote On/Off Remote Sense | -40 °C | 85 °C | 89 % | Active High Enable |
 Bellnix Co., Ltd. | 14 V | 20-SMD Module | 50 A | 1 V | 0.16 in | 4 mm | 1.06 " | 27 mm | 16.5 mm | 0.65 " | ITE (Commercial) | Surface Mount | 8 V | Non-Isolated PoL Module Digital | 1 | Adjustable Output PMBus™ Remote On/Off Remote Sense | -40 °C | 85 °C | 89 % | Active High Enable |
