CMD69423P Series

Antennas Omni,Dband,300mm,NF 698-4200MHz,LoPIM

Manufacturer: TE Connectivity AMP Connectors

Catalog

Antennas Omni,Dband,300mm,NF 698-4200MHz,LoPIM

Catalog

Antennas Omni,Dband,300mm,NF 698-4200MHz,LoPIM

Part	RF Family/Standard	VSWR	Frequency Group	Applications	Power - Max [Max]	Frequency Range [Min]	Frequency Range [Max]	Antenna Type	Termination	Frequency (Center/Band)	Number of Bands	Features	Gain	Height (Max) [x]	Height (Max) [x]	Mounting Type

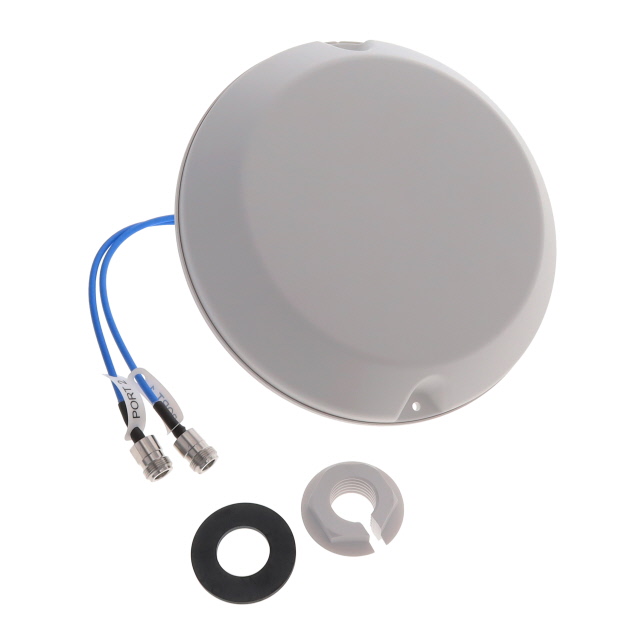

TE Connectivity AMP Connectors CMD69423P-B30NF	Cellular	2	Wide Band	5G GPRS	50 W	1.35 GHz 1.69 GHz 2.3 GHz 3.3 GHz 698 MHz 824 MHz	2.18 GHz 2.7 GHz 4.2 GHz 806 MHz 960 MHz 1550 MHz	Flat Panel	N Type Female	1.45 GHz 1.935 GHz 2.5 GHz 3.75 GHz 752 MHz 892 MHz	6	Cable - 300mm	3.9 dBi 5.3 dBi 6 dBi 6.1 dBi 6.7 dBi 6.8 dBi	43.5 mm	1.713 in	Panel Mount

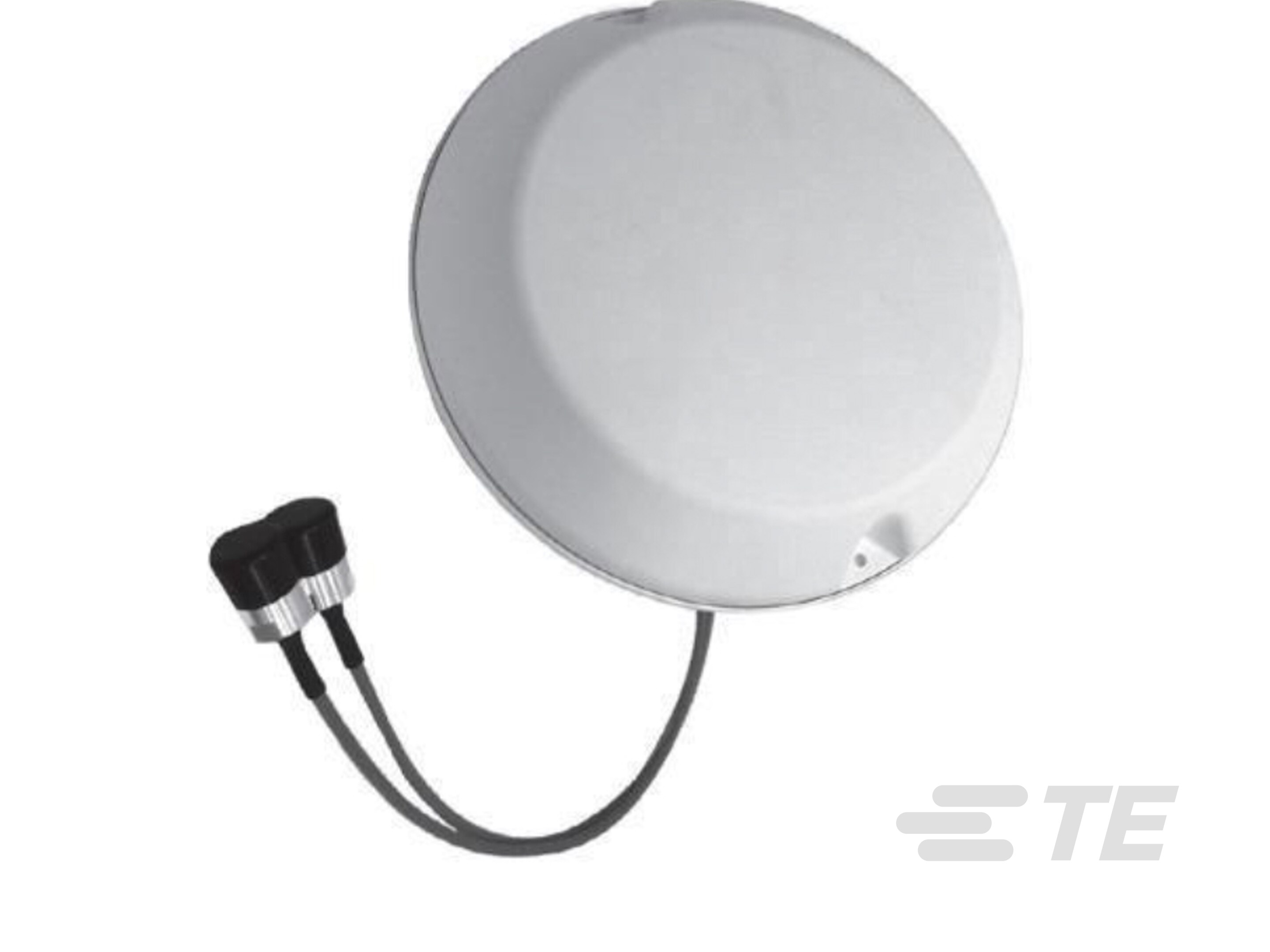

TE Connectivity AMP Connectors CMD69423P-30D43F	Cellular	2	Wide Band	5G	50 W	1.35 GHz 1.69 GHz 2.3 GHz 3.3 GHz 698 MHz 824 MHz	2.18 GHz 2.7 GHz 4.2 GHz 806 MHz 960 MHz 1550 MHz	Flat Panel	4.3/10 Female	1.45 GHz 1.935 GHz 2.5 GHz 3.75 GHz 752 MHz 892 MHz	6	Cable - 300mm	3.9 dBi 5.3 dBi 6 dBi 6.1 dBi 6.7 dBi 6.8 dBi	43.5 mm	1.713 in	Panel Mount
TE Connectivity AMP Connectors CMD69423P-B30NF	Cellular	2	Wide Band	5G GPRS	50 W	1.35 GHz 1.69 GHz 2.3 GHz 3.3 GHz 698 MHz 824 MHz	2.18 GHz 2.7 GHz 4.2 GHz 806 MHz 960 MHz 1550 MHz	Flat Panel	N Type Female	1.45 GHz 1.935 GHz 2.5 GHz 3.75 GHz 752 MHz 892 MHz	6	Cable - 300mm	3.9 dBi 5.3 dBi 6 dBi 6.1 dBi 6.7 dBi 6.8 dBi	43.5 mm	1.713 in	Panel Mount
TE Connectivity AMP Connectors CMD69423P-30D43F	Cellular	2	Wide Band	5G	50 W	1.35 GHz 1.69 GHz 2.3 GHz 3.3 GHz 698 MHz 824 MHz	2.18 GHz 2.7 GHz 4.2 GHz 806 MHz 960 MHz 1550 MHz	Flat Panel	4.3/10 Female	1.45 GHz 1.935 GHz 2.5 GHz 3.75 GHz 752 MHz 892 MHz	6	Cable - 300mm	3.9 dBi 5.3 dBi 6 dBi 6.1 dBi 6.7 dBi 6.8 dBi	43.5 mm	1.713 in	Panel Mount
