MATEnet Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
HD MATENET 1+12 TAB HSG ASSY, GRP E
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Features | Mounting Type | Number of Positions | Insulation Material | Color | Connector Type | Pitch | Pitch | Number of Rows [custom] | Contact Type | Contact Termination | Row Spacing | Row Spacing | Accessory Type | For Use With/Related Products | Ingress Protection | Pitch - Mating | Pitch - Mating | Row Spacing - Mating | Row Spacing - Mating | Voltage Rating | Contact Material | Style | Termination | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Number of Positions Loaded | Current Rating (Amps) | Insulation Color | Material Flammability Rating | Contact Finish - Post | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 125 °C | -40 C | Push-Pull | Sealed | Free Hanging (In-Line) | 14 | Polybutylene Terephthalate (PBT) Glass Filled | Gray | Plug | 4 mm | 0.157 in | 2 | Tab | Crimp | 6 mm | 0.236 in | |||||||||||||||||||||
 TE Connectivity AMP Connectors | Plug | Heavy Duty Sealed Connector Series | |||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | 125 °C | -40 C | Free Hanging (In-Line) | 14 | Polybutylene Terephthalate (PBT) Glass Filled | Black | Plug | Tab | Crimp | 6 mm | 0.236 in | ||||||||||||||||||||||||||

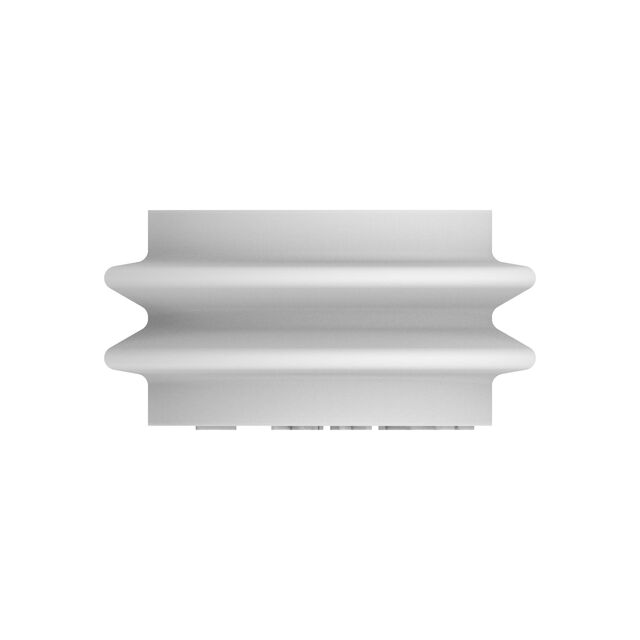

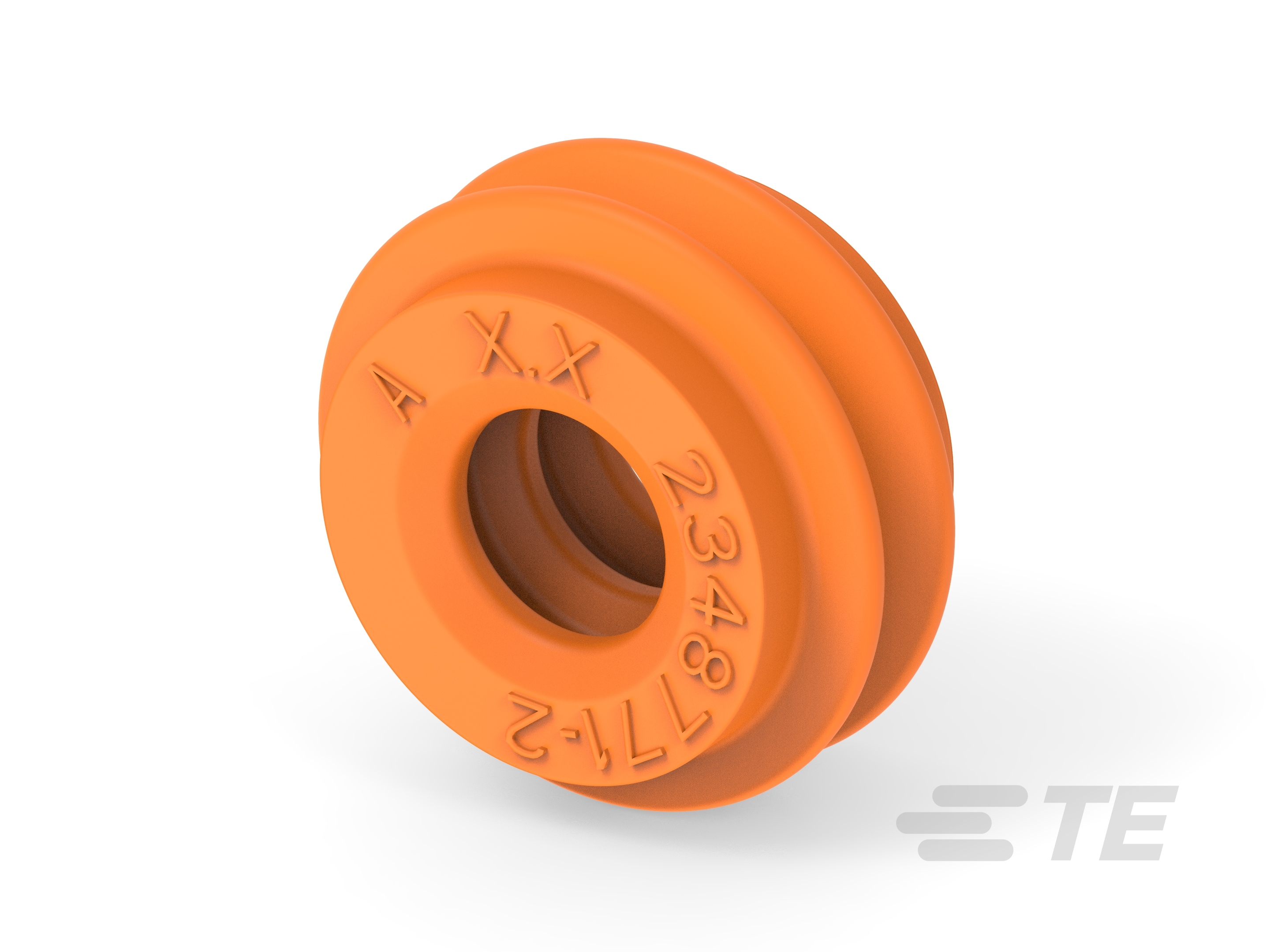

 TE Connectivity AMP Connectors | 1 | Wire Seal | Heavy Duty Sealed Connector Series | ||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | 1 | Wire Seal | Heavy Duty Sealed Connector Series | ||||||||||||||||||||||||||||||||||

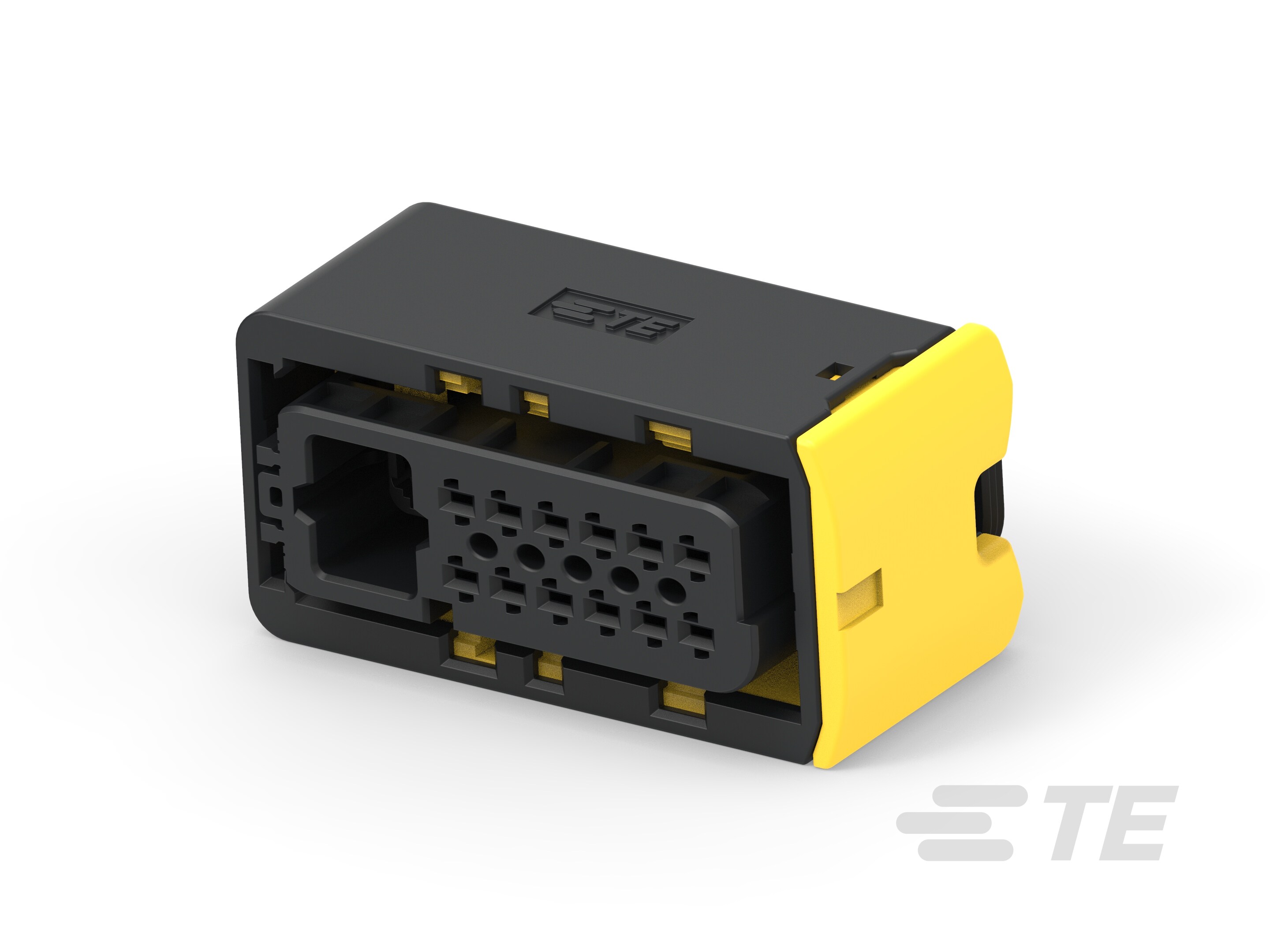

 TE Connectivity AMP Connectors | 125 °C | -40 C | Free Hanging (In-Line) | 14 | Polybutylene Terephthalate (PBT) Glass Filled | Black | Receptacle | 4 mm | 0.157 in | 2 | Female Socket | Crimp | 6 mm | 0.236 in | |||||||||||||||||||||||
 TE Connectivity AMP Connectors | Cap (Cover) | Heavy Duty Sealed Connector Series | |||||||||||||||||||||||||||||||||||

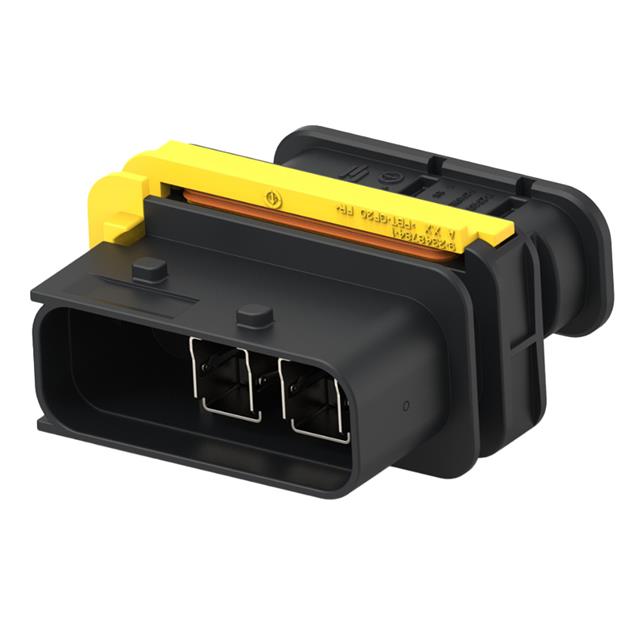

 TE Connectivity AMP Connectors | 125 °C | -40 C | Free Hanging (In-Line) | 10 | Polybutylene Terephthalate (PBT) Glass Filled | Black | Plug | 2 | Tab | Crimp | 6 mm | 0.236 in | |||||||||||||||||||||||||

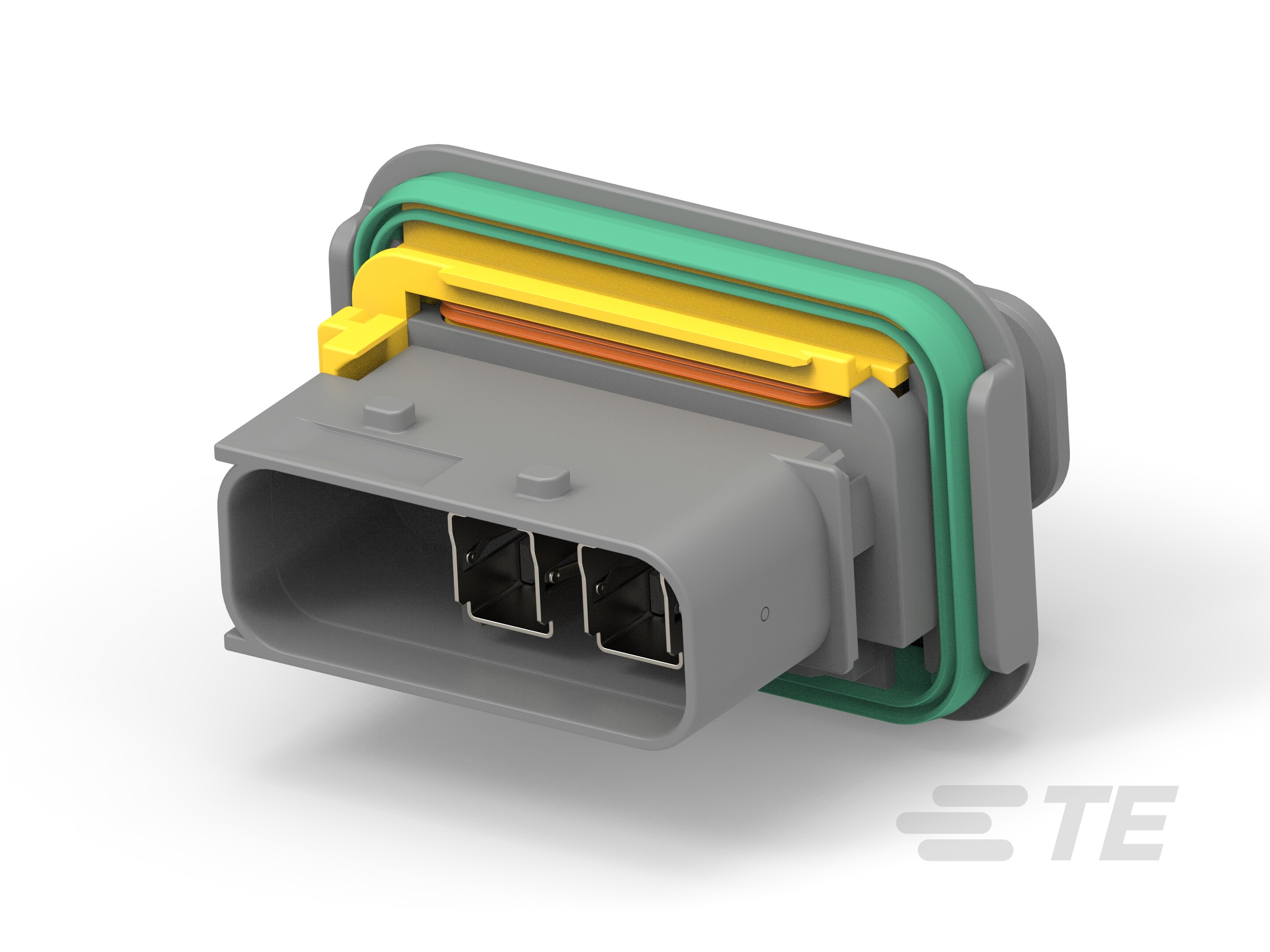

 TE Connectivity AMP Connectors | 125 °C | -40 C | Push-Pull | Free Hanging (In-Line) | 10 | Polybutylene Terephthalate (PBT) Glass Filled | Gray | Plug | 2 | Tab | Crimp | 6 mm | 0.236 in | ||||||||||||||||||||||||
TE Connectivity AMP Connectors | 125 °C | -40 C | Push-Pull | Right Angle Through Hole | 8 | Polybutylene Terephthalate (PBT) Glass Filled | Header | 2 | Male Pin | IP67/IP69K | 4 mm | 0.157 in | 4 mm | 0.157 " | 60 VDC | Copper Alloy | Board to Cable/Wire | Solder | Shrouded - 4 Wall | 118.1 µin | 3 µm | Rectangular | All | 20 A | Black | UL94 V-0 | Tin | Silver |
