T41335 Series
Manufacturer: TE Connectivity AMP Connectors

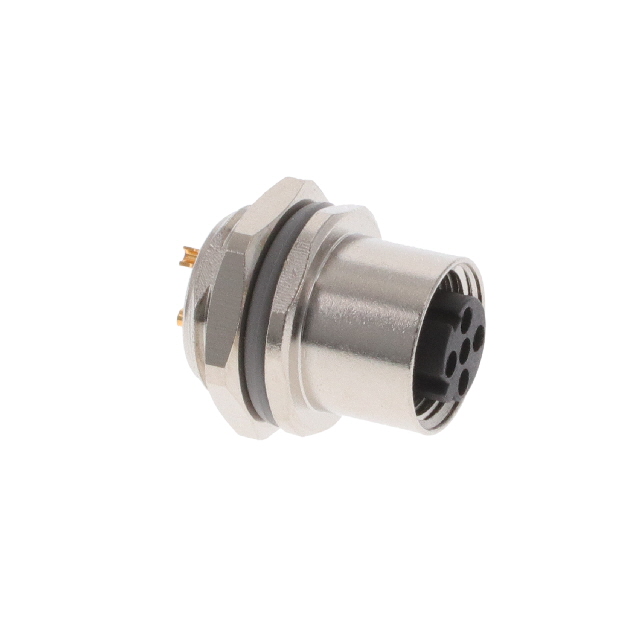

M12,FRONT MOUNT,FEMALE,D,3P,SOLDER WIRE
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Contact Material | Insert Material | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Current Rating (Amps) | Mounting Feature | Material Flammability Rating | Contact Finish - Mating | Fastening Type | Voltage Rating | Primary Material | Shell Material | Orientation | Mounting Type | Color | Shell Size - Insert | Shielding | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors | 0.076 µm | 3 µin | Industrial | Copper Alloy | Nylon 6/6 Polyamide (PA66) | IP67 - Dust Tight Waterproof | 85 °C | -40 C | Nickel | 4 A | Bulkhead - Rear Side Nut | UL94 V-0 | Gold | Threaded | 250 V | Metal | Copper Alloy | D | Panel Mount | Silver | M12-3 | Unshielded | Plug Female Sockets |
