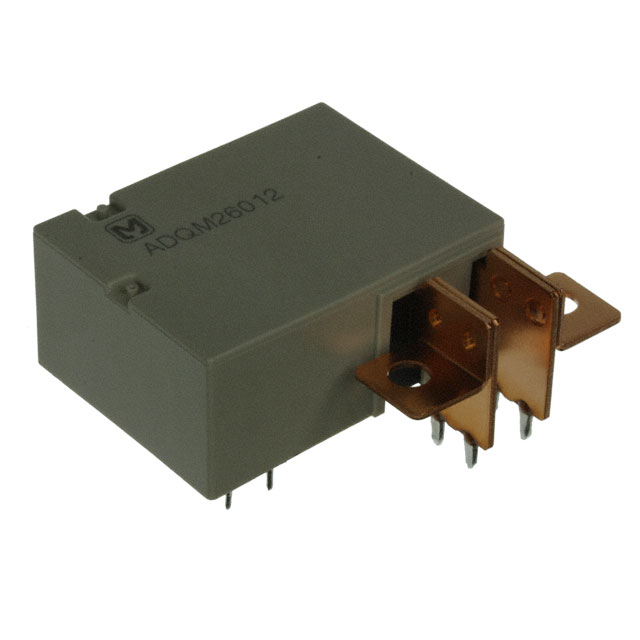

ADQM26 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY GEN PURPOSE SPST 60A 12V
| Part | Coil Resistance | Contact Material | Switching Voltage [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Coil Type | Contact Form | Relay Type | Coil Current | Load - Max Switching | Coil Voltage | Mounting Type | Operate Time | Contact Rating (Current) | Termination Style | Release Time | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 144 Ohms | Silver Alloy Cadmium Free | 250 VAC | 70 °C | -40 C | 9.6 VDC | Dual Coil Latching | SPST-NO (1 Form A) | General Purpose | 83.3 mA | 15000 VA | 12 VDC | Through Hole | 20 ms | 60 A | PC Pin | 20 ms | Sealed - Flux Protection |
Panasonic Electronic Components | 20.3 Ohms | Silver Alloy Cadmium Free | 250 VAC | 70 °C | -40 C | 3.6 VDC | Dual Coil Latching | SPST-NO (1 Form A) | General Purpose | 222 mA | 15000 VA | 4.5 VDC | Through Hole | 20 ms | 60 A | PC Pin | 20 ms | Sealed - Flux Protection |
Panasonic Electronic Components | 576 Ohms | Silver Alloy Cadmium Free | 250 VAC | 70 °C | -40 C | 19.2 VDC | Dual Coil Latching | SPST-NO (1 Form A) | General Purpose | 41.7 mA | 15000 VA | 24 VDC | Through Hole | 20 ms | 60 A | PC Pin | 20 ms | Sealed - Flux Protection |
