SDDC Series

Catalog

WIRE-TO-BOARD TERMINAL BLOCK, SKEDD, 3.5 MM, 2 POSITIONS, 24 AWG, 16 AWG, 1.5 MM², PUSH IN

Part	Housing Material	Contact Material - Plating	Number of Levels	Positions Per Level	Color	Pitch	Pitch	Mating Orientation	Voltage	Wire Gauge [Max]	Wire Gauge [Min]	Wire Termination	Features	Mounting Type	Current	Positions Per Level [custom]

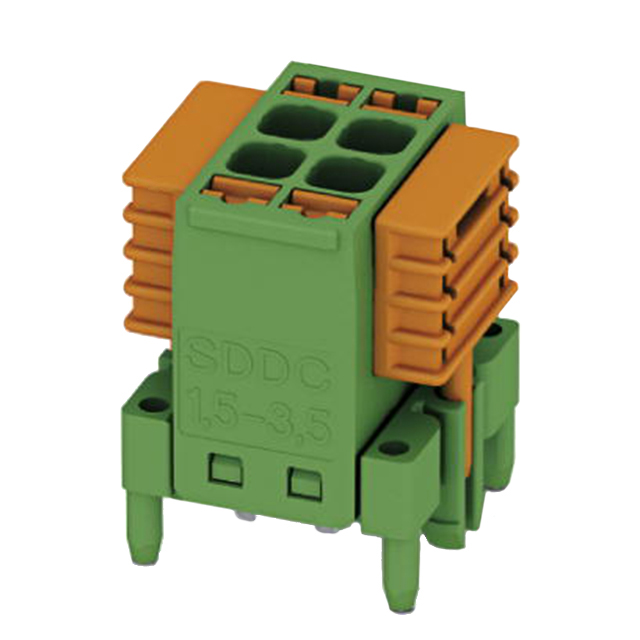

Phoenix Contact 1848642	Polyamide (PA) Nylon	Tin Plated	2	2	Green	3.5 mm	0.138 "	Vertical with Board	300 VDC	24 AWG	16 AWG	Leg Spring Push-In Spring	Board Lock	SKEDD Through Hole	8 A
Phoenix Contact 1848707	Polyamide (PA) Nylon	Tin Plated	2	8	Green	3.5 mm	0.138 "	Vertical with Board	300 VDC	24 AWG	16 AWG	Leg Spring Push-In Spring	Board Lock	SKEDD Through Hole	8 A
Phoenix Contact 1848697			2		Green	3.5 mm	0.138 "	Vertical with Board	300 VDC	24 AWG	16 AWG	Leg Spring Push-In Spring	Board Lock	SKEDD Through Hole	8 A	7
