EN3P5M Series

Catalog

CIRCULAR CONNECTOR, EN3 SERIES, PCB MOUNT RECEPTACLE, 5 CONTACTS, PCB PIN, THERMOPLASTIC BODY

Part	Mounting Type	Color	Contact Finish - Mating	Fastening Type	Applications	Orientation	Current Rating (Amps)	Voltage Rating	Ingress Protection	Contact Material	Shielding	Mounting Feature	Primary Material	Connector Type	Termination	Number of Positions	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating
SWITCHCRAFT/CONXALL EN3P5MRAPCBN	Panel Mount Right Angle Through Hole	Black	Gold	Bayonet Lock	General Purpose Instrumentation Marine Medical	Keyed	4 A	250 VAC	IP66 IP68	Copper Alloy	Unshielded	Bulkhead - Front Side Nut	Plastic	Receptacle Male Pins	Circuit Board Solder	5	Elastomer	-40 C	65 °C	UL94 V-0
SWITCHCRAFT/CONXALL EN3P5MPX	Panel Mount Through Hole	Black	Gold	Bayonet Lock	General Purpose Instrumentation Marine Medical	Keyed	7.5 A	250 VAC	IP66 IP68	Copper Alloy	Unshielded	Bulkhead - Front Side Nut	Plastic	Receptacle Male Pins	Solder	5	Elastomer	-40 C	65 °C	UL94 V-0

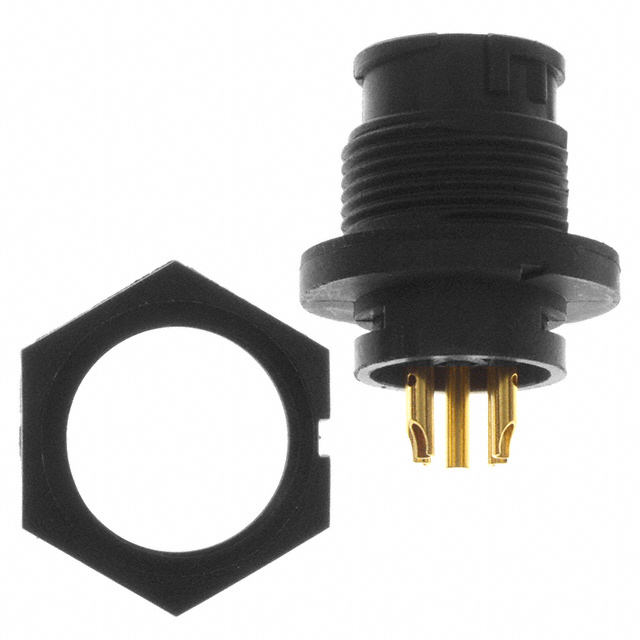

SWITCHCRAFT/CONXALL EN3P5MX	Panel Mount	Black	Gold	Bayonet Lock	General Purpose Instrumentation Marine Medical	Keyed	7.5 A	250 VAC	IP66 IP68	Copper Alloy	Unshielded	Bulkhead - Front Side Nut	Plastic	Receptacle Male Pins		5	Elastomer	-40 C	65 °C	UL94 V-0
SWITCHCRAFT/CONXALL EN3P5MRAPCBW	Panel Mount Right Angle Through Hole	Black	Gold	Bayonet Lock	General Purpose Instrumentation Marine Medical	Keyed	4 A	250 VAC	IP66 IP68	Copper Alloy	Unshielded	Bulkhead - Front Side Nut	Plastic	Receptacle Male Pins	Circuit Board Solder	5	Elastomer	-40 C	65 °C	UL94 V-0
SWITCHCRAFT/CONXALL EN3P5MRAPC	Panel Mount Right Angle Through Hole	Black	Gold	Bayonet Lock	General Purpose Instrumentation Marine Medical	Keyed	4 A	250 VAC	IP66 IP68	Copper Alloy	Unshielded	Bulkhead - Front Side Nut	Plastic	Receptacle Male Pins	Solder	5	Elastomer	-40 C	65 °C	UL94 V-0
