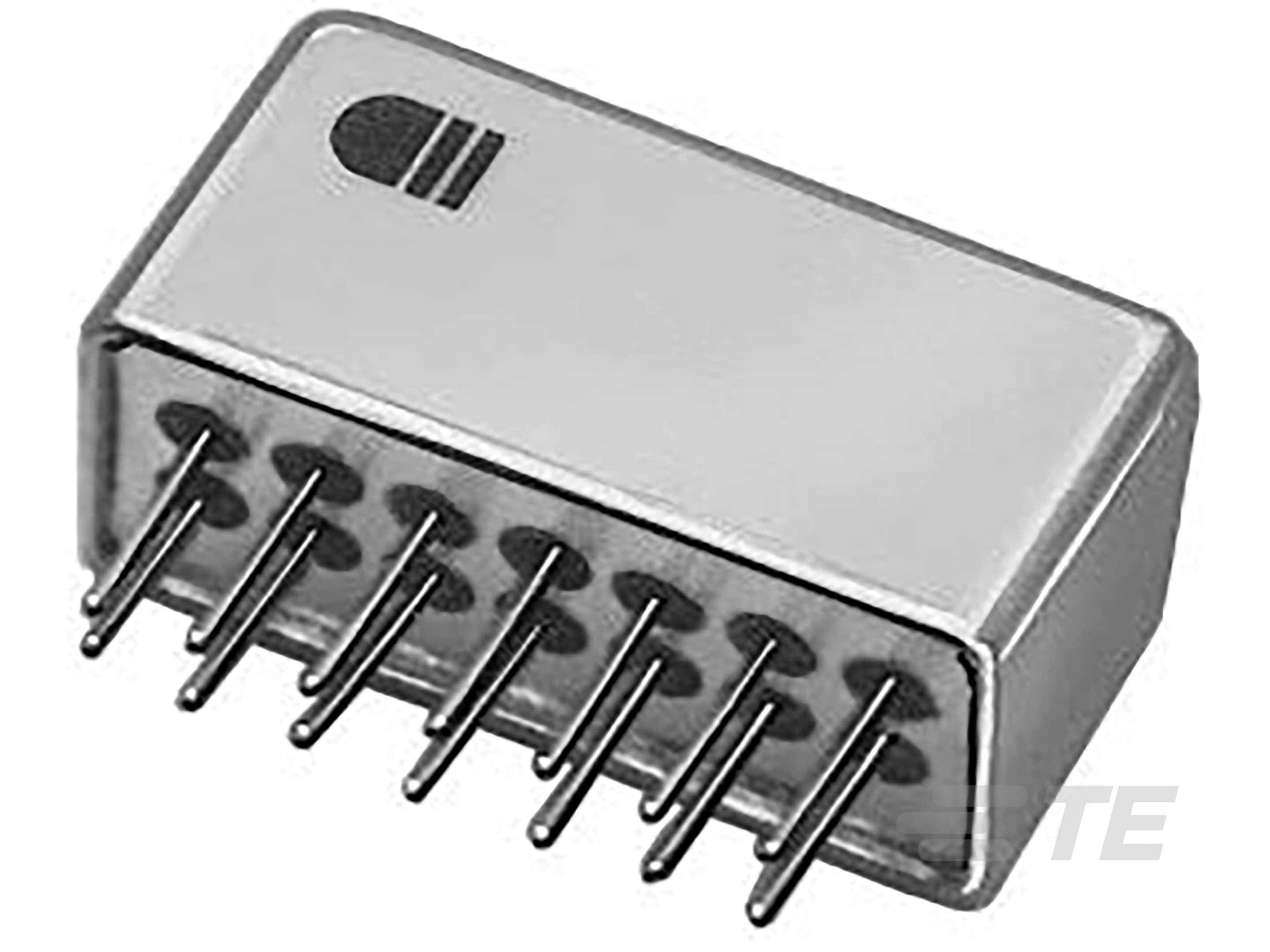

CII SR Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE 4PDT 2A 26.5V
| Part | Coil Resistance | Must Operate Voltage | Relay Type | Seal Rating | Mounting Type | Operate Time | Contact Material | Coil Current | Release Time | Contact Form | Coil Voltage | Must Release Voltage | Termination Style | Coil Type | Contact Rating (Current) | Operating Temperature [Min] | Operating Temperature [Max] | Qualification | Switching Voltage | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 390 Ohms | 14 VDC | General Purpose | Sealed - Hermetically | Through Hole | 5 ms | Gold (Au) Silver (Ag) | 67.9 mA | 5 ms | 4PDT (4 Form C) | 26.5 VDC | 1.8 VDC | PC Pin | Non Latching | 2 A | -65 ░C | 125 °C | |||
 TE Connectivity AMP Connectors | 3.2 VDC | General Purpose | Chassis Mount | 7 ms | 240 mA | 7 ms | 4PDT (4 Form C) | Solder Hook | Non Latching | 2 A | -65 ░C | 125 °C | MIL-R-39016/40 | 28 VDC | Military | |||||
TE Connectivity AMP Connectors | ||||||||||||||||||||
TE Connectivity AMP Connectors | 14 VDC | General Purpose | Chassis Mount | 7 ms | 68 mA | 7 ms | 4PDT (4 Form C) | 26.5 VDC | 1.4 VDC | Solder Hook | Non Latching | 2 A | -65 ░C | 125 °C | MIL-R-39016/40 | 28 VDC | Military | |||
TE Connectivity AMP Connectors | General Purpose | Sealed - Hermetically | 5 ms | Gold (Au) Silver (Ag) | 5 ms | 2 A | -65 ░C | 125 °C | MIL-R-39016/40 | Military | ||||||||||
TE Connectivity AMP Connectors | General Purpose | Sealed - Hermetically | 5 ms | Gold (Au) Silver (Ag) | 5 ms | 2 A | -65 ░C | 125 °C | MIL-R-39016/40 | Military | ||||||||||
TE Connectivity AMP Connectors | 14 VDC | General Purpose | Chassis Mount | 7 ms | 68 mA | 7 ms | 4PDT (4 Form C) | 26.5 VDC | 1.4 VDC | Solder Hook | Non Latching | 2 A | -65 ░C | 125 °C | MIL-R-39016/40 | 28 VDC | Military |
