BSB104 Series
Manufacturer: INFINEON
Beta
⌘K
OPTIMOS™ 3 N-CHANNEL POWER MOSFET 80 V ; DIRECTFET™ M PACKAGE; 10.4 MOHM;

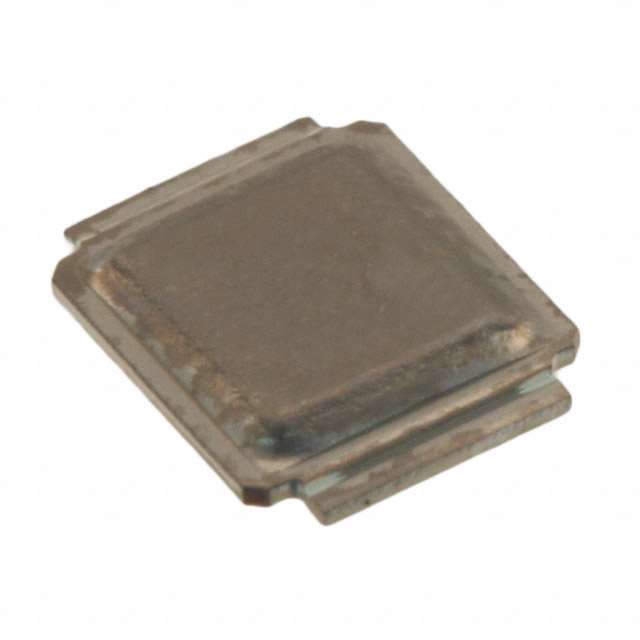

| Part | Input Capacitance (Ciss) (Max) @ Vds [Max] | Current - Continuous Drain (Id) @ 25°C | Vgs (Max) | Operating Temperature [Min] | Operating Temperature [Max] | Technology | Gate Charge (Qg) (Max) @ Vgs | Vgs(th) (Max) @ Id | Drive Voltage (Max Rds On, Min Rds On) | Drain to Source Voltage (Vdss) | Power Dissipation (Max) | Mounting Type | Package / Case | FET Type | Supplier Device Package | Rds On (Max) @ Id, Vgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 2100 pF | 13 A 50 A | 20 V | -40 °C | 150 °C | MOSFET (Metal Oxide) | 31 nC | 3.5 V | 10 V | 80 V | 2.8 W 42 W | Surface Mount | 3-WDSON | N-Channel | CanPAK M™ MG-WDSON-2 | 10.4 mOhm |
