MP2-SS096 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

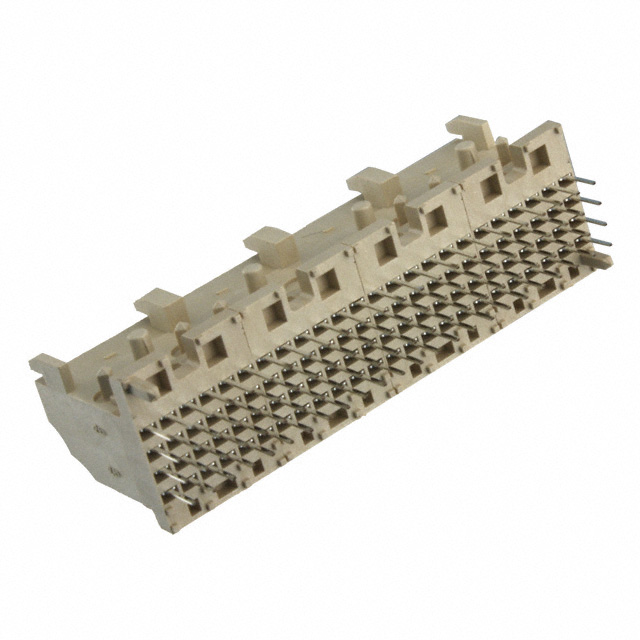

CONN RCPT FUTUREBUS+ 96P EDGE MT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Current Rating (Amps) | Connector Style | Features | Color | Mounting Type | Number of Positions | Number of Positions Loaded | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Pitch [x] | Pitch [x] | Connector Usage | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | -55 C | 125 °C | UL94 V-0 | 1.5 A | Futurebus+® | Board Guide Spacer | Beige | Board Edge Right Angle Through Hole | 96 | All | Receptacle Female Sockets | 3 µin | 0.076 Ám | Gold | 0.079 in | 2 mm | Backplane | Solder |
