OA2547AP Series
Manufacturer: ORION FANS
Beta
⌘K

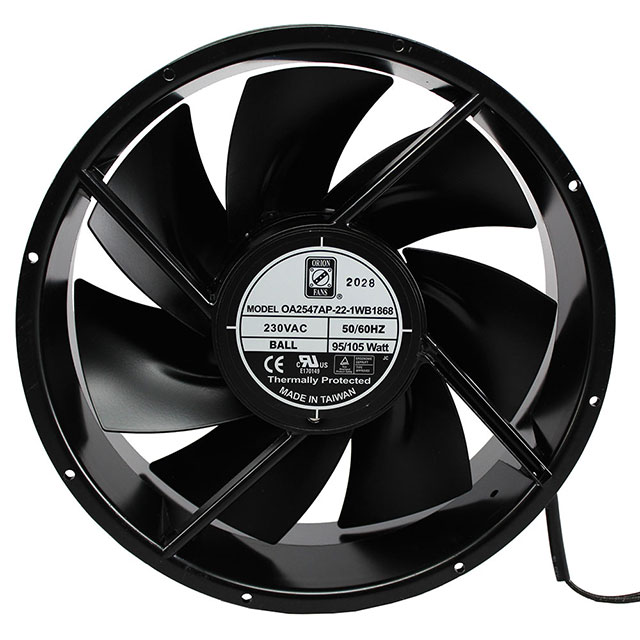

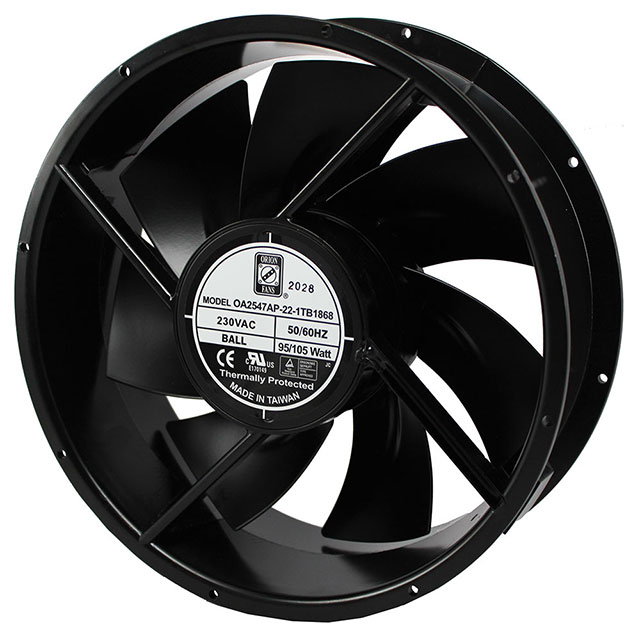

AC FANS TUBEAXIAL FAN, 254X254X89MM, 230VAC, 1000CFM, 105W, 70DBA, BALL, WIRE, IP69K
| Part | Lifetime @ Temp. | Material - Blade | Material - Frame | Static Pressure | Static Pressure | Power (Watts) | Approval Agency | Fan Type | Weight | Weight | Voltage - Rated | RPM | Bearing Type | Termination | Size / Dimension | Size / Dimension [diameter] | Ingress Protection | Features | Air Flow | Air Flow | Width [y] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 50000 Hrs | Steel | Aluminum | 0.6 in H2O | 149.5 Pa | 105 W | CE cURus TUV UR | Tubeaxial | 5.6 lbs | 2.5 kg | 230 VAC | 3250 RPM | Ball | 2 | Round | 10 in | IP69K | Capacitor Thermal Overload Protector (TOP) | 28 mł/min | 1000 CFM | 89 mm | |
 ORION FANS | 50000 Hrs | Steel | Aluminum | 0.6 in H2O | 149.5 Pa | 105 W | CE cURus TUV UR | Tubeaxial | 5.6 lbs | 2.5 kg | 115 VAC | 3250 RPM | Ball | 2 | Round | 10 in | IP68 - Dust Tight Waterproof | Capacitor Thermal Overload Protector (TOP) | 28 mł/min | 1000 CFM | 89 mm | |
 ORION FANS | 50000 Hrs | Steel | Aluminum | 0.6 in H2O | 149.5 Pa | 105 W | CE cURus TUV UR | Tubeaxial | 5.6 lbs | 2.5 kg | 230 VAC | 3250 RPM | Ball | Round | 10 in | IP68 - Dust Tight Waterproof | Capacitor Thermal Overload Protector (TOP) | 28 mł/min | 1000 CFM | 89 mm | 2 Wire Leads | |
 ORION FANS | 50000 Hrs | Steel | Aluminum | 0.6 in H2O | 149.5 Pa | 105 W | CE cURus TUV UR | Tubeaxial | 5.6 lbs | 2.5 kg | 115 VAC | 3250 RPM | Ball | Round | 10 in | IP69K | Capacitor Thermal Overload Protector (TOP) | 28 mł/min | 1000 CFM | 89 mm | 2 Wire Leads | |
ORION FANS | 50000 Hrs | Steel | Aluminum | 0.6 in H2O | 149.5 Pa | 105 W | CE cURus TUV UR | Tubeaxial | 5.6 lbs | 2.5 kg | 115 VAC | 3250 RPM | Ball | 2 | Round | 10 in | IP69K | Capacitor Thermal Overload Protector (TOP) | 28 mł/min | 1000 CFM | 89 mm | |
 ORION FANS | 50000 Hrs | Steel | Aluminum | 0.6 in H2O | 149.5 Pa | 105 W | CE cURus TUV UR | Tubeaxial | 5.6 lbs | 2.5 kg | 115 VAC | 3250 RPM | Ball | Round | 10 in | IP68 - Dust Tight Waterproof | Capacitor Thermal Overload Protector (TOP) | 28 mł/min | 1000 CFM | 89 mm | 2 Wire Leads | |
ORION FANS | 50000 Hrs | Steel | Aluminum | 0.6 in H2O | 149.5 Pa | 105 W | CE cURus TUV UR | Tubeaxial | 5.6 lbs | 2.5 kg | 230 VAC | 3250 RPM | Ball | Round | 10 in | IP69K | Capacitor Thermal Overload Protector (TOP) | 28 mł/min | 1000 CFM | 89 mm | 2 Wire Leads | |
 ORION FANS | 50000 Hrs | Steel | Aluminum | 0.6 in H2O | 149.5 Pa | 105 W | CE cURus TUV UR | Tubeaxial | 5.6 lbs | 2.5 kg | 230 VAC | 3250 RPM | Ball | 2 | Round | 10 in | IP68 - Dust Tight Waterproof | Capacitor Thermal Overload Protector (TOP) | 28 mł/min | 1000 CFM | 89 mm |
