854-006 Series
Manufacturer: NorComp Inc.
Beta
⌘K

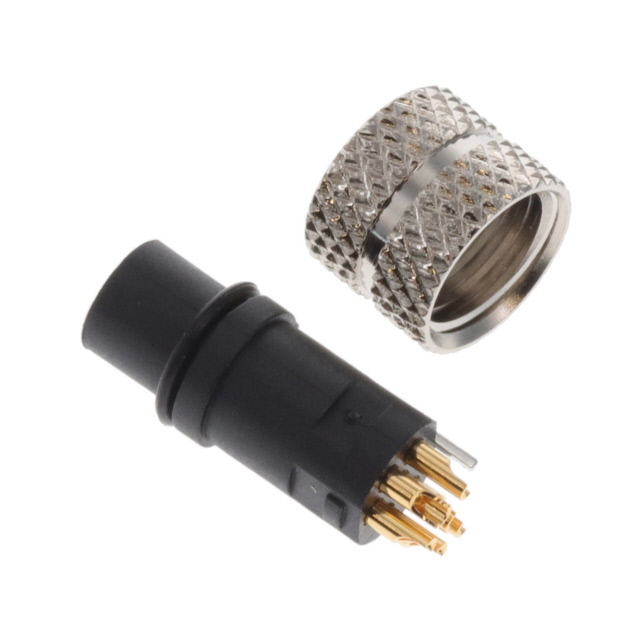

CONN PLUG FMALE 6P GOLD SLDR CUP
| Part | Connector Type | Insert Material | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Shell Size - Insert | Mounting Type | Ingress Protection | Shell Finish | Contact Material | Applications | Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Features | Material Flammability Rating | Voltage Rating | Number of Positions | Fastening Type | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Plug Female Sockets | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -40 C | 1.5 A | 6 mm 8 mm | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | Nickel | Phosphor Bronze | Industrial Medical | Black Silver | 0.25 µm | 10 µin | Gold | Coupling Nut Ground | UL94 V-0 | 30 VDC | 6 | Threaded | Metal |
