89124 Series

Catalog

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 24 CONTACTS, CABLE MOUNT

Part	Contact Type	Pitch	Pitch	Number of Rows [custom]	Row Spacing	Row Spacing	Cable Termination	Features	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Color	Wire Type	Number of Positions
3M Electronic Specialty 89124-0103	Female Socket	0.1 "	2.54 mm	2	2.54 mm	0.1 "	IDC	Feed Through Polarizing Key Strain Relief	Gold	Free Hanging (In-Line)	30 Áin	0.76 Ám	Receptacle	Gray	Ribbon Cable	24
3M Electronic Specialty 89124-0101	Female Socket	0.1 "	2.54 mm	2	2.54 mm	0.1 "	IDC	Feed Through Polarizing Key	Gold	Free Hanging (In-Line)	30 Áin	0.76 Ám	Receptacle	Gray	Ribbon Cable	24

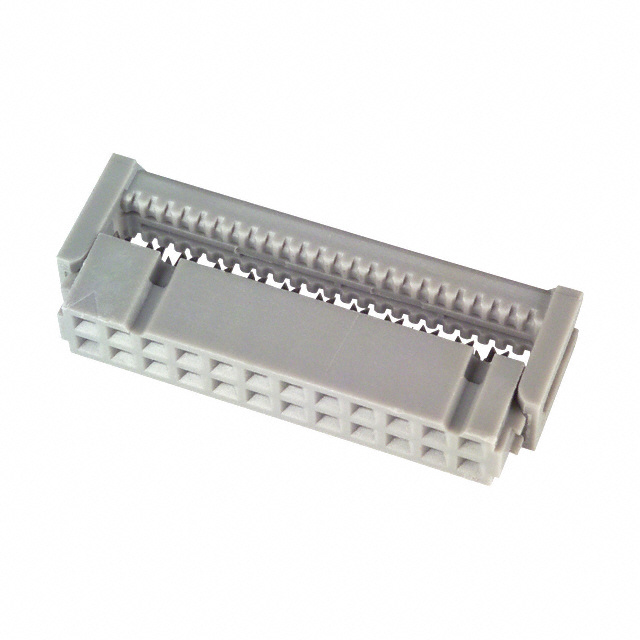

3M Electronic Specialty 89124-0001	Female Socket	0.1 "	2.54 mm	2	2.54 mm	0.1 "	IDC	Feed Through	Gold	Free Hanging (In-Line)	30 Áin	0.76 Ám	Receptacle	Gray	Ribbon Cable	24
