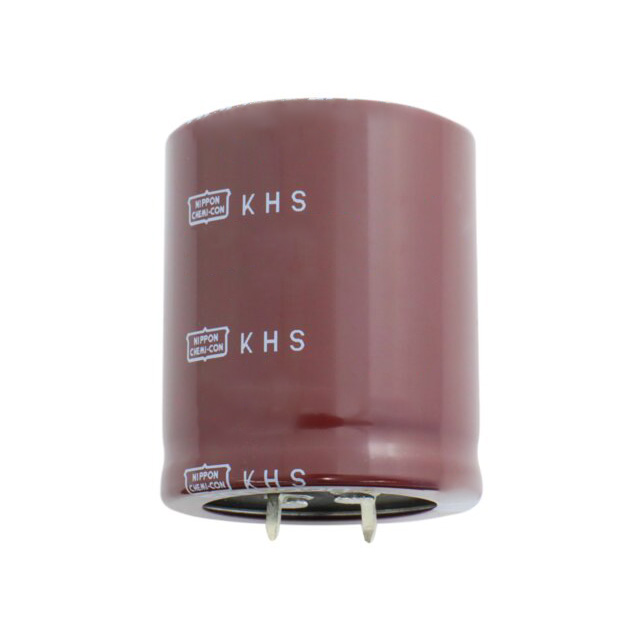

KHS Series

Manufacturer: Chemi-Con

Catalog

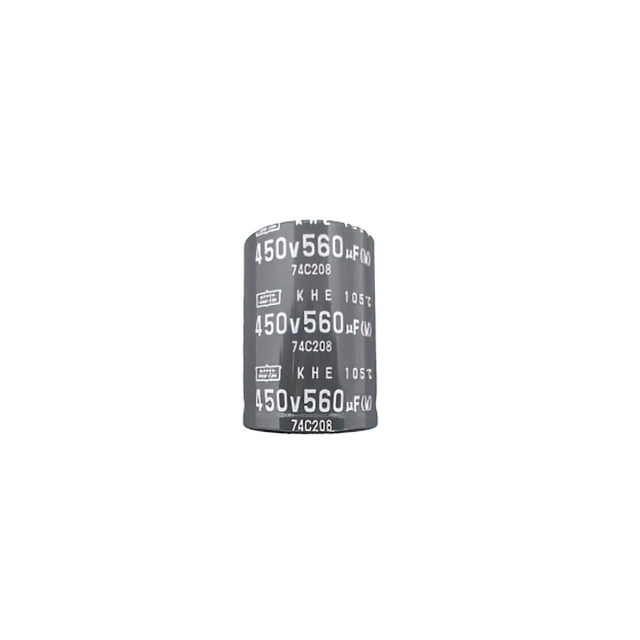

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 560UF 450V

Part	Ripple Current @ High Frequency	Size / Dimension	Size / Dimension [diameter]	Capacitance	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Tolerance	Polarization	Mounting Type	Package / Case	Voltage - Rated	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con EKHS451VSN561MR45S	2.8743 A	30 mm	1.181 "	560 µF	General Purpose	47.5 mm	1.87 in	-40 C	105 ░C	2.01 A	0.394 in	10 mm	3000 Hrs	20 %	Polar	Through Hole	Radial Can - Snap-In	450 V
Chemi-Con EKHS501VSN221MP60S	1.8733 A		0.866 "	220 µF	General Purpose			-25 °C	105 ░C	1.31 A	0.394 in	10 mm	3000 Hrs	20 %	Polar	Through Hole	Radial Can - Snap-In	500 V	22 mm	60 mm	2.362 in
Chemi-Con EKHS501VSN820MQ25S	1.0296 A		1 "	0.082 mF	General Purpose			-25 °C	105 ░C	720 mA	0.394 in	10 mm	3000 Hrs	20 %	Polar	Through Hole	Radial Can - Snap-In	500 V	25.4 mm	25 mm	0.984 in

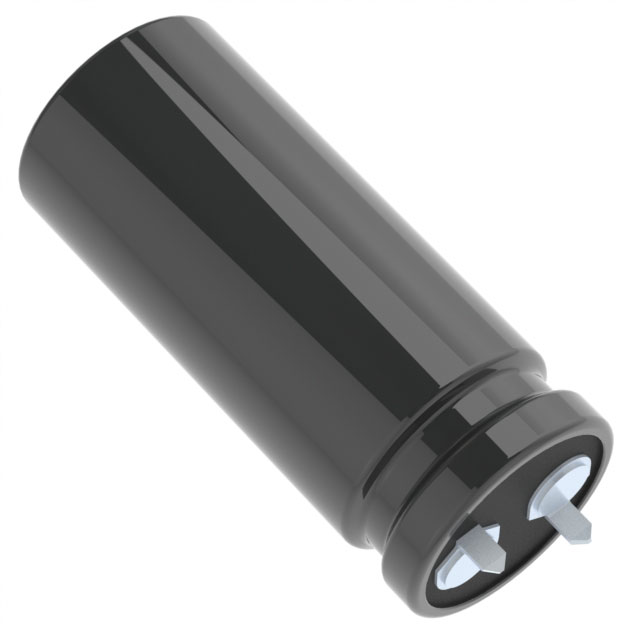

Chemi-Con EKHS451VSN271MP50S	1.9019 A		0.866 "	270 µF	General Purpose			-40 C	105 ░C	1.33 A	0.394 in	10 mm	3000 Hrs	20 %	Polar	Through Hole	Radial Can - Snap-In	450 V	22 mm	52.5 mm	2.067 in
Chemi-Con EKHS451VSN181MQ25S	1.4586 A		1 "	180 µF	General Purpose	27.5 mm	1.083 in	-40 C	105 ░C	1.02 A	0.394 in	10 mm	3000 Hrs	20 %	Polar	Through Hole	Radial Can - Snap-In	450 V	25.4 mm
Chemi-Con EKHS451VSN221MP45S	1.6731 A		0.866 "	220 µF	General Purpose	47.5 mm	1.87 in	-40 C	105 ░C	1.17 A	0.394 in	10 mm	3000 Hrs	20 %	Polar	Through Hole	Radial Can - Snap-In	450 V	22 mm
Chemi-Con EKHS4H1VSN161MP35S	1.3699 A		0.866 "	160 µF	General Purpose	37.5 mm	1.476 in	-40 C	105 ░C	1.03 A	0.394 in	10 mm	3000 Hrs	20 %	Polar	Through Hole	Radial Can - Snap-In	475 V	22 mm
Chemi-Con EKHS501VSN101MP35S	1.1297 A		0.866 "	100 µF	General Purpose			-25 °C	105 ░C	790 mA	0.394 in	10 mm	3000 Hrs	20 %	Polar	Through Hole	Radial Can - Snap-In	500 V	22 mm	35 mm	1.378 "
Chemi-Con EKHS501VSN271MQ60S	2.1593 A		1 "	270 µF	General Purpose			-25 °C	105 ░C	1.51 A	0.394 in	10 mm	3000 Hrs	20 %	Polar	Through Hole	Radial Can - Snap-In	500 V	25.4 mm	60 mm	2.362 in
Chemi-Con EKHS501VSN181MR30S	1.5873 A	30 mm	1.181 "	180 µF	General Purpose	30 mm	1.181 "	-25 °C	105 ░C	1.11 A	0.394 in	10 mm	3000 Hrs	20 %	Polar	Through Hole	Radial Can - Snap-In	500 V
