88949 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

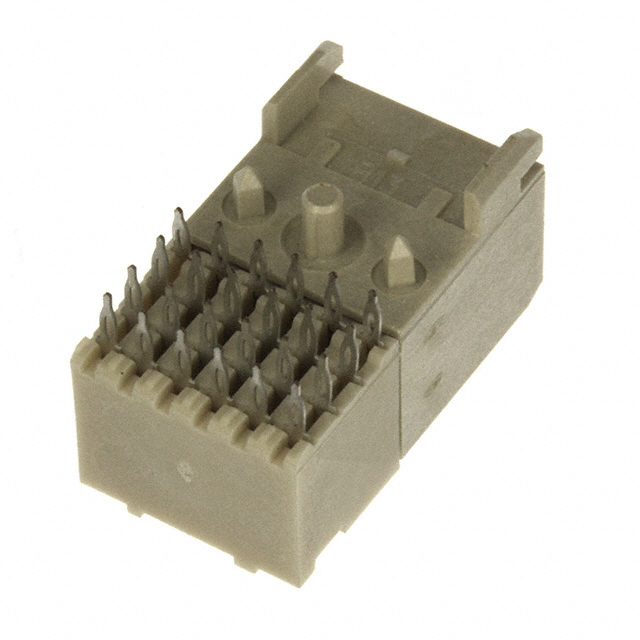

CONN RCPT BLADE PWR 8POS EDGE MT
| Part | Voltage Rating | Material Flammability Rating | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Layout, Typical | Current Rating (Amps) | Color | Number of Positions Loaded | Connector Style | Features | Connector Type | Mounting Type | Number of Positions | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 1000 VDC | UL94 V-0 | Press-Fit | 105 ░C | -55 °C | 8 Power | 3 A | Natural | All | Blade Power | Board Guide Spacer | Receptacle Female Blade Sockets | Board Edge Right Angle Through Hole | 8 | |||
Amphenol ICC (FCI) | 1000 VDC | UL94 V-0 | Press-Fit | 105 ░C | -55 °C | 8 Power | 3 A | Natural | All | Blade Power | Board Guide Spacer | Receptacle Female Blade Sockets | Board Edge Right Angle Through Hole | 8 | Gold | 0.76 Ám | 30 Áin |
 Amphenol ICC (FCI) | 1000 VDC | UL94 V-0 | Press-Fit | 105 ░C | -55 °C | 8 Power | 3 A | Natural | All | Blade Power | Board Guide Spacer | Receptacle Female Blade Sockets | Board Edge Right Angle Through Hole | 8 | Gold | 0.76 Ám | 30 Áin |
