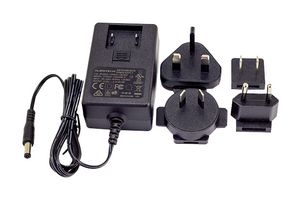

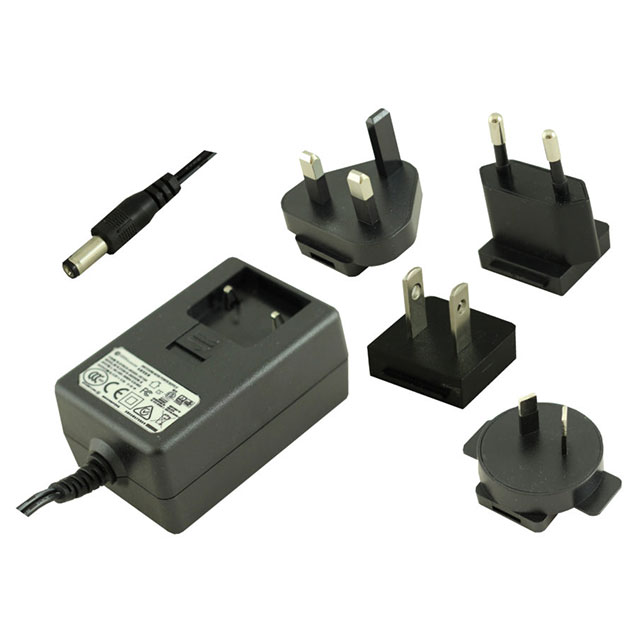

ADAPTER, AC-DC, 1 O/P, 24V, 2.1A ROHS COMPLIANT: YES
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Output Connector O.D. | Output Connector | Output Connector Length | Output Connector I.D. | Polarization | No Load Power Consumption (Max) | Region Utilized | Cord Length | Input Connector | Efficiency | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Input Type | Approval Agency | Power (Watts) | Size / Dimension Height | Size / Dimension Length | Size / Dimension Width | Current - Output (Max) | Form | Applications | Standard Number | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ideal Power Ltd. | 40 °C | 0 °C | 5.5 mm | Barrel Plug | 12 mm | 2.1 mm | Positive Center | 210 mW | International | 47.2 in | Multi-Blade (Included) | 88 % | 90 V | 264 V | Multi-Blade (Included) | CB CCC CE FCC GS RCM TUV | 50 W | 1.38 in | 3.33 in | 2.05 in | 2.1 A | Wall Mount (Class II) | ITE (Commercial) | 60950-1 | 24 V |
 Ideal Power Ltd. | 40 °C | 0 °C | 5.5 mm | Barrel Plug | 12 mm | 2.1 mm | Positive Center | 210 mW | International | 47.2 in | Multi-Blade (Included) | 88 % | 90 V | 264 V | Multi-Blade (Included) | CE GS SAA UL | 50 W | 1.38 in | 3.33 in | 2.05 in | 3.36 A | Wall Mount (Class II) | ITE (Commercial) | 60950-1 | 15 V |
