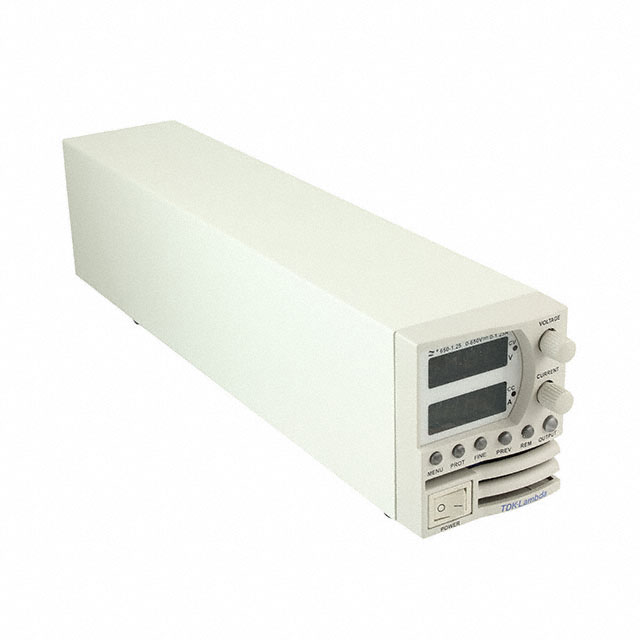

Z650 Series

Catalog

BENCH POWER SUPPLY, NORTH AMERICA LINE CORD, PROGRAMMABLE, 1 OUTPUT, 0 V, 650 V, 0 A, 320 MA

Part	Voltage Regulation - Load	Accuracy - Voltmeter; Ammeter	Weight [custom]	Weight [custom]	Current Regulation - Load	Voltage Regulation - Line	Ripple	Current Regulation - Line	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Number of Outputs	Number of Characters	Number of Characters	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Output [Max]	Type	Current - Output [Max]	Display Type	Features	Power (Watts)
TDK Corporation Z650-0.32-U	0.01 %	0.5% + 1 count	1.9 kg	4.2 lbs	0.09 %	0.01 %	60 mV	0.02 %	83 mm	13.78 in	350 mm	3.268 "	70 mm	2.756 in	1	2	4	85 VAC/DC	265 VAC	650 VDC	Bench (AC to DC)	0.32 A	Digital	Programmable RS232 RS485 USB Interface	208 W
TDK Corporation Z650-0.64-IEEE-U	0.01 %	0.5% + 1 count	2.4 kg	5.3 lbs	0.09 %	0.01 %	60 mV	0.02 %	83 mm	13.78 in	350 mm	3.268 "	105 mm	4.134 in	1	2	4	85 VAC/DC	265 VAC	650 VDC	Bench (AC to DC)	0.64 A	Digital	GPIB Programmable RS232 RS485 USB Interface	416 W
TDK Corporation Z650-0.32-IS510-U	0.01 %	0.5% + 1 count	2.4 kg	5.3 lbs	0.09 %	0.01 %	60 mV	0.02 %	83 mm	13.78 in	350 mm	3.268 "	105 mm	4.134 in	1	2	4	85 VAC/DC	265 VAC	650 VDC	Bench (AC to DC)	0.32 A	Digital	Programmable RS232 RS485 USB Interface	208 W
TDK Corporation Z650-1-IS420-U	0.01 %	0.5% + 1 count	2.4 kg	5.3 lbs	0.09 %	0.01 %	60 mV	0.02 %	83 mm	13.78 in	350 mm	3.268 "	105 mm	4.134 in	1	2	4	85 VAC/DC	265 VAC	650 VDC	Bench (AC to DC)	1 A	Digital	Programmable RS232 RS485 USB Interface	650 W
TDK Corporation Z650-1.25-IS420-U	0.01 %	0.5% + 1 count	2.4 kg	5.3 lbs	0.09 %	0.01 %	60 mV	0.02 %	83 mm	13.78 in	350 mm	3.268 "	105 mm	4.134 in	1	2	4	85 VAC/DC	265 VAC	650 VDC	Bench (AC to DC)	1.25 A	Digital	Programmable RS232 RS485 USB Interface	812 W
TDK Corporation Z650-1-IEEE-U	0.01 %	0.5% + 1 count	2.4 kg	5.3 lbs	0.09 %	0.01 %	60 mV	0.02 %	83 mm	13.78 in	350 mm	3.268 "	105 mm	4.134 in	1	2	4	85 VAC/DC	265 VAC	650 VDC	Bench (AC to DC)	1 A	Digital	GPIB Programmable RS232 RS485 USB Interface	650 W
TDK Corporation Z650-1-IS510-U	0.01 %	0.5% + 1 count	2.4 kg	5.3 lbs	0.09 %	0.01 %	60 mV	0.02 %	83 mm	13.78 in	350 mm	3.268 "	105 mm	4.134 in	1	2	4	85 VAC/DC	265 VAC	650 VDC	Bench (AC to DC)	1 A	Digital	Programmable RS232 RS485 USB Interface	650 W
TDK Corporation Z650-0.32-LAN-U	0.01 %	0.5% + 1 count	1.9 kg	4.2 lbs	0.09 %	0.01 %	60 mV	0.02 %	83 mm	13.78 in	350 mm	3.268 "	70 mm	2.756 in	1	2	4	85 VAC/DC	265 VAC	650 VDC	Bench (AC to DC)	0.32 A	Digital	LAN Programmable RS232 RS485 USB Interface	208 W
TDK Corporation Z650-1.25-LAN-U	0.01 %	0.5% + 1 count	1.9 kg	4.2 lbs	0.09 %	0.01 %	60 mV	0.02 %	83 mm	13.78 in	350 mm	3.268 "	70 mm	2.756 in	1	2	4	85 VAC/DC	265 VAC	650 VDC	Bench (AC to DC)	1.25 A	Digital	LAN Programmable RS232 RS485 USB Interface	812 W
TDK Corporation Z650-0.64-U	0.01 %	0.5% + 1 count	1.9 kg	4.2 lbs	0.09 %	0.01 %	60 mV	0.02 %	83 mm	13.78 in	350 mm	3.268 "	70 mm	2.756 in	1	2	4	85 VAC/DC	265 VAC	650 VDC	Bench (AC to DC)	0.64 A	Digital	Programmable RS232 RS485 USB Interface	416 W
