0326-1 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Tail Type	Termination	Socket Depth	Socket Depth	Length - Overall [x]	Length - Overall [x]	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Board Thickness	Board Thickness
Mill-Max Manufacturing Corp. 0326-1-19-80-06-27-10-0	-55 C	125 °C	0.06 in	1.52 mm	Gold	No Tail	Swage	4.32 mm	0.17 in	6.65 mm	0.262 "	Beryllium Copper	0.051 in	1.3 mm	0.094 "	2.39 mm	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 0326-1-19-01-06-01-10-0	-55 C	125 °C	0.06 in	1.52 mm	Tin-Lead	No Tail	Swage	4.32 mm	0.17 in	6.65 mm	0.262 "	Beryllium Copper	0.051 in	1.3 mm	0.094 "	2.39 mm	200 Áin	5.08 Ám	0.79 mm	0.031 in

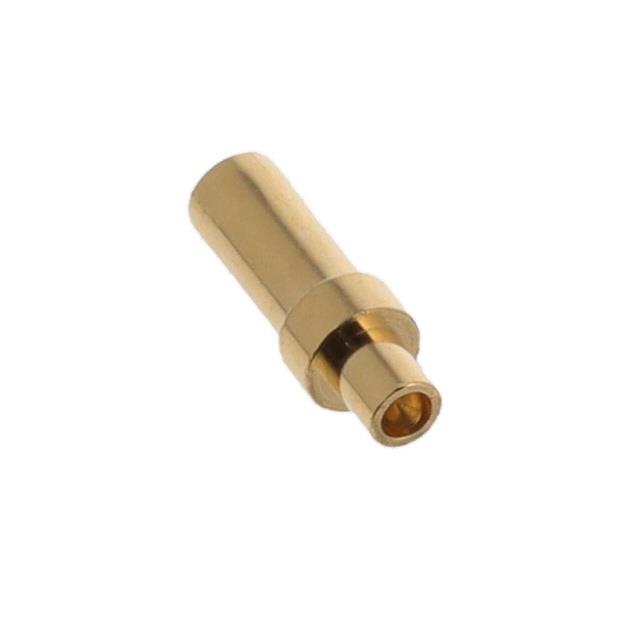

Mill-Max Manufacturing Corp. 0326-1-19-15-06-27-10-0	-55 C	125 °C	0.06 in	1.52 mm	Gold	No Tail	Swage	4.32 mm	0.17 in	6.65 mm	0.262 "	Beryllium Copper	0.051 in	1.3 mm	0.094 "	2.39 mm	30 Áin	0.76 Ám	0.79 mm	0.031 in
Mill-Max Manufacturing Corp. 0326-1-19-80-06-14-10-0	-55 C	125 °C	0.06 in	1.52 mm	Gold	No Tail	Swage	4.32 mm	0.17 in	6.65 mm	0.262 "	Beryllium Copper	0.051 in	1.3 mm	0.094 "	2.39 mm	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 0326-1-19-80-06-80-10-0	-55 C	125 °C	0.06 in	1.52 mm	Tin	No Tail	Swage	4.32 mm	0.17 in	6.65 mm	0.262 "	Beryllium Copper	0.051 in	1.3 mm	0.094 "	2.39 mm	200 Áin	5.08 Ám
