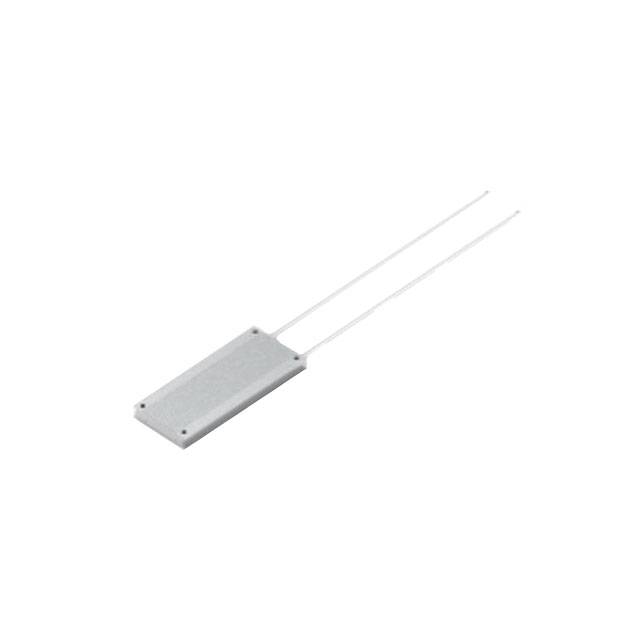

CGS HCF Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

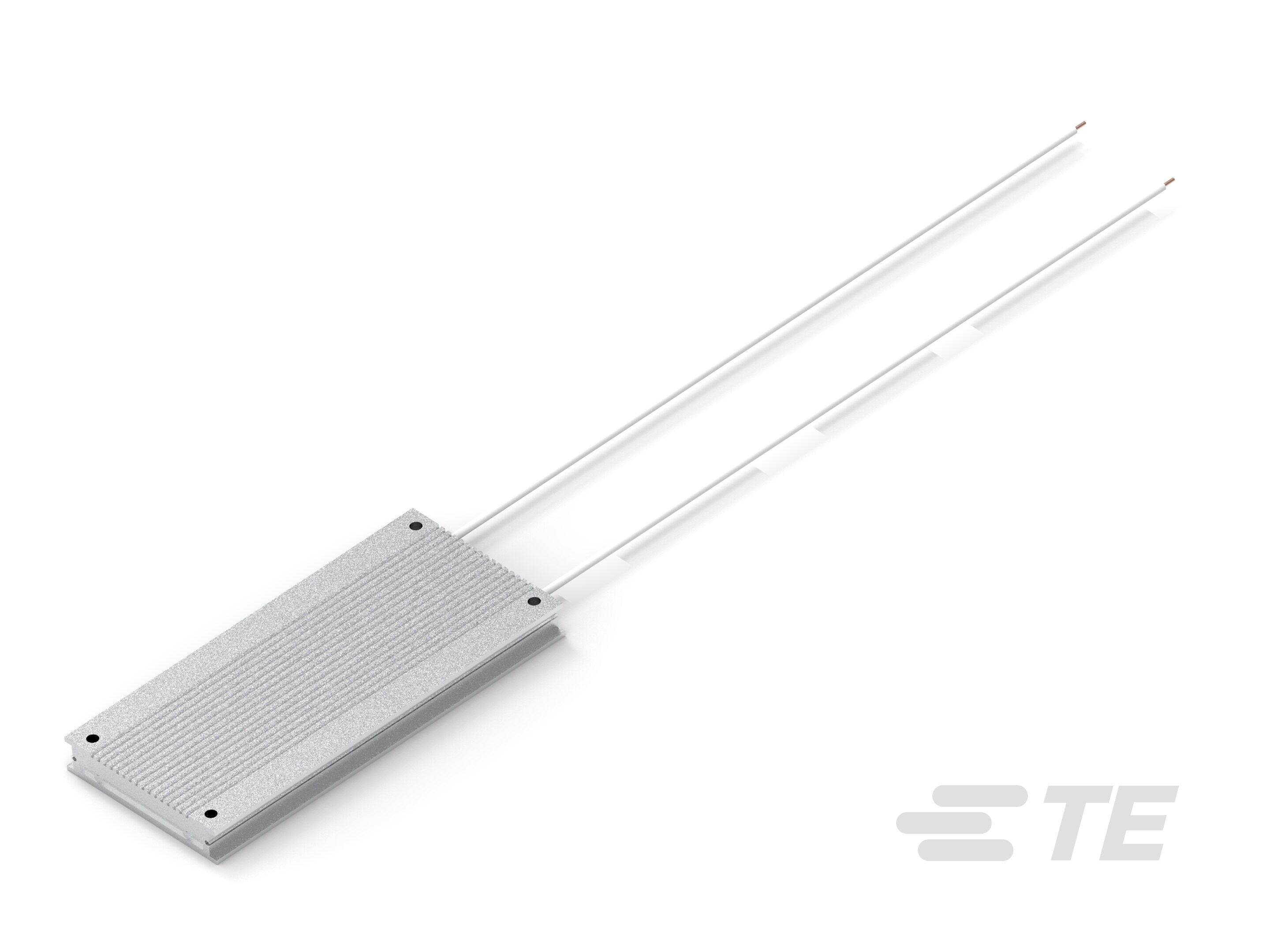

HCF166 160W 680R 5% LEAD

Part	Composition	Power (Watts)	Temperature Coefficient	Resistance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Package / Case	Mounting Feature	Coating, Housing Type	Operating Temperature	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
TE Connectivity AMP Connectors HCF166J680RJ	Wirewound	160 W	200 ppm/°C	680 Ohms	15 mm	0.591 "	5 %	Module	Screw Holes	Aluminum	265 °C	2.992 in	6.535 in	166 mm	76 mm

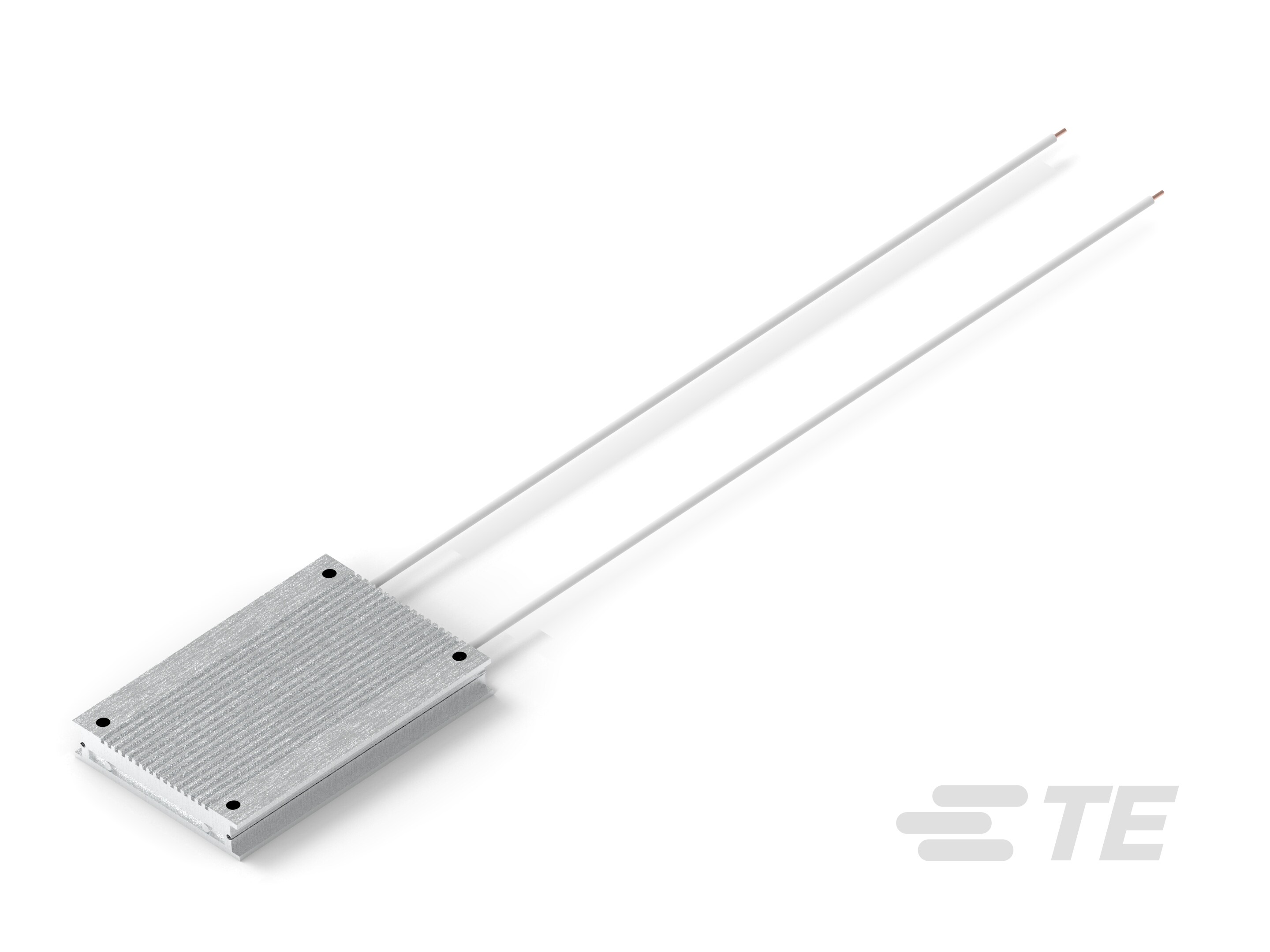

TE Connectivity AMP Connectors HCF110J22RJ	Wirewound	100 W	200 ppm/°C	22 Ohms	15 mm	0.591 "	5 %	Module	Screw Holes	Aluminum	260 °C			4.331 in	2.992 in	76 mm	110 mm
TE Connectivity AMP Connectors HCF110J330RJ	Wirewound	100 W	200 ppm/°C	330 Ohms	15 mm	0.591 "	5 %	Module	Screw Holes	Aluminum	260 °C			4.331 in	2.992 in	76 mm	110 mm
TE Connectivity AMP Connectors HCF110J680RJ	Wirewound	100 W	200 ppm/°C	680 Ohms	15 mm	0.591 "	5 %	Module	Screw Holes	Aluminum	260 °C			4.331 in	2.992 in	76 mm	110 mm
TE Connectivity AMP Connectors HCF166J10RJ	Wirewound	160 W	200 ppm/°C	10 Ohms	15 mm	0.591 "	5 %	Module	Screw Holes	Aluminum	265 °C	2.992 in	6.535 in	166 mm	76 mm
TE Connectivity AMP Connectors HCF80J22RJ	Wirewound	75 W	200 ppm/°C	22 Ohms	15 mm	0.591 "	5 %	Module	Screw Holes	Aluminum	200 °C	2.992 in	3.15 "	80 mm	76 mm
TE Connectivity AMP Connectors HCF166J33RJ	Wirewound	160 W	200 ppm/°C	33 Ohms	15 mm	0.591 "	5 %	Module	Screw Holes	Aluminum	265 °C	2.992 in	6.535 in	166 mm	76 mm
TE Connectivity AMP Connectors HCF216J330RJ	Wirewound	200 Watts	200 ppm/°C	330 Ohms	15 mm	0.591 "	5 %	Module	Screw Holes	Aluminum	275 °C	2.992 in	8.504 in	216 mm	76 mm
TE Connectivity AMP Connectors HCF80J1K0J	Wirewound	75 W	200 ppm/°C	1000 Ohms	15 mm	0.591 "	5 %	Module	Screw Holes	Aluminum	200 °C	2.992 in	3.15 "	80 mm	76 mm
TE Connectivity AMP Connectors HCF110J220RJ	Wirewound	100 W	200 ppm/°C	220 Ohms	15 mm	0.591 "	5 %	Module	Screw Holes	Aluminum	260 °C			4.331 in	2.992 in	76 mm	110 mm
