ALCOSWITCH Tactile FSM JSM Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Mechanical Life	Actuator Material	Switch Travel	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Outline [x]	Outline [y]	Illumination	Termination Style	Contact Rating @ Voltage	Mounting Type	Switch Function	Actuator Orientation	Actuator Type	Actuator Height off PCB, Vertical [z]
TE Connectivity AMP Connectors 1571563-2	1000000 Cycles	Polyamide (PA) Nylon	0.25 mm	70 gf	85 °C	-35 °C	SPST-NO	6 mm	6 mm	Non-Illuminated	Gull Wing	0.05 A 24 VDC	Surface Mount	Off-Mom	Top Actuated	Standard	5 mm
TE Connectivity AMP Connectors 1571563-7				100 gf	85 °C	-35 °C	SPST-NO	6 mm	6 mm	Non-Illuminated	Gull Wing	0.05 A 24 VDC	Surface Mount	Off-Mom	Top Actuated	Standard	5 mm

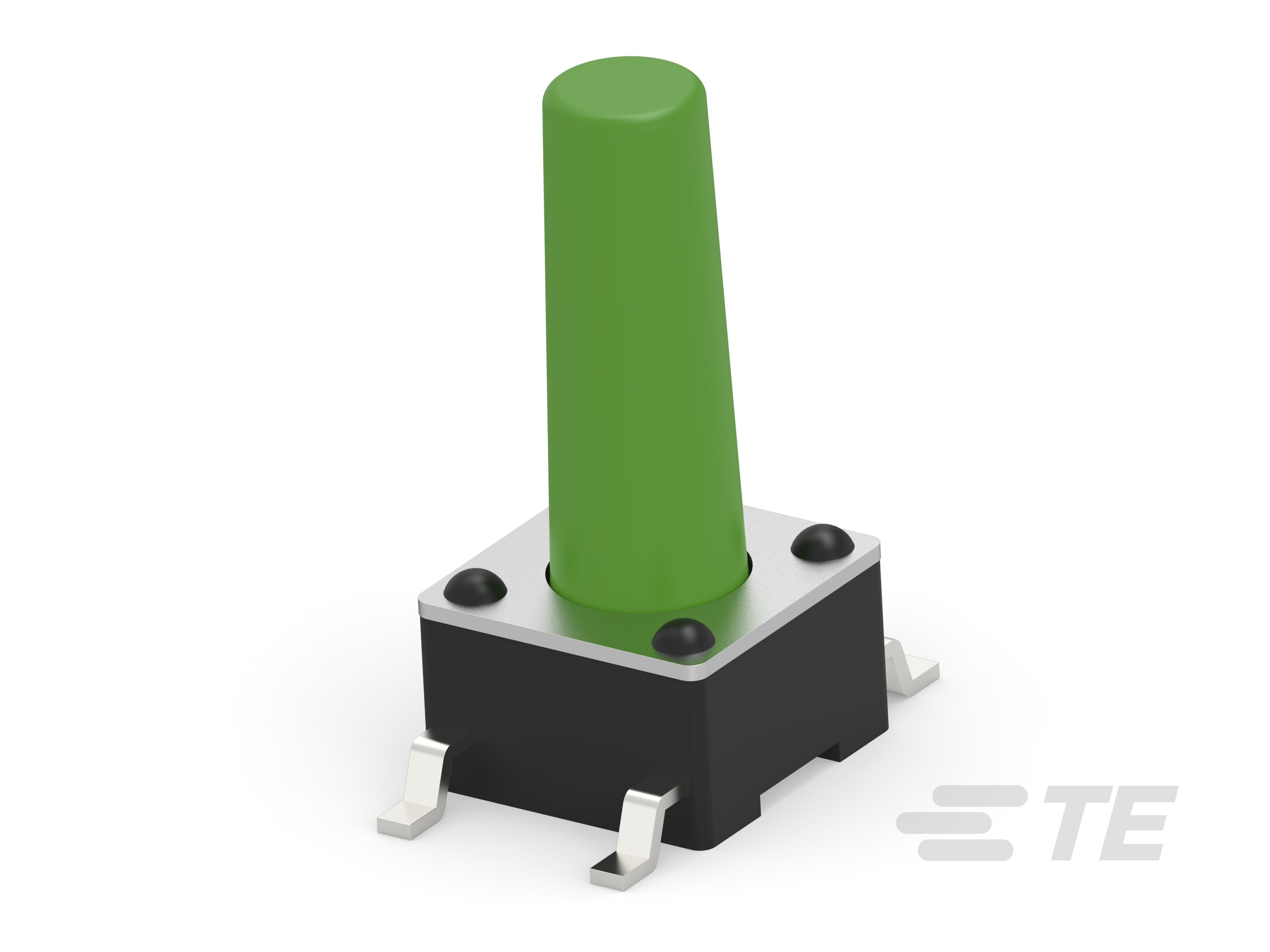

TE Connectivity AMP Connectors FSM14JSMASTR

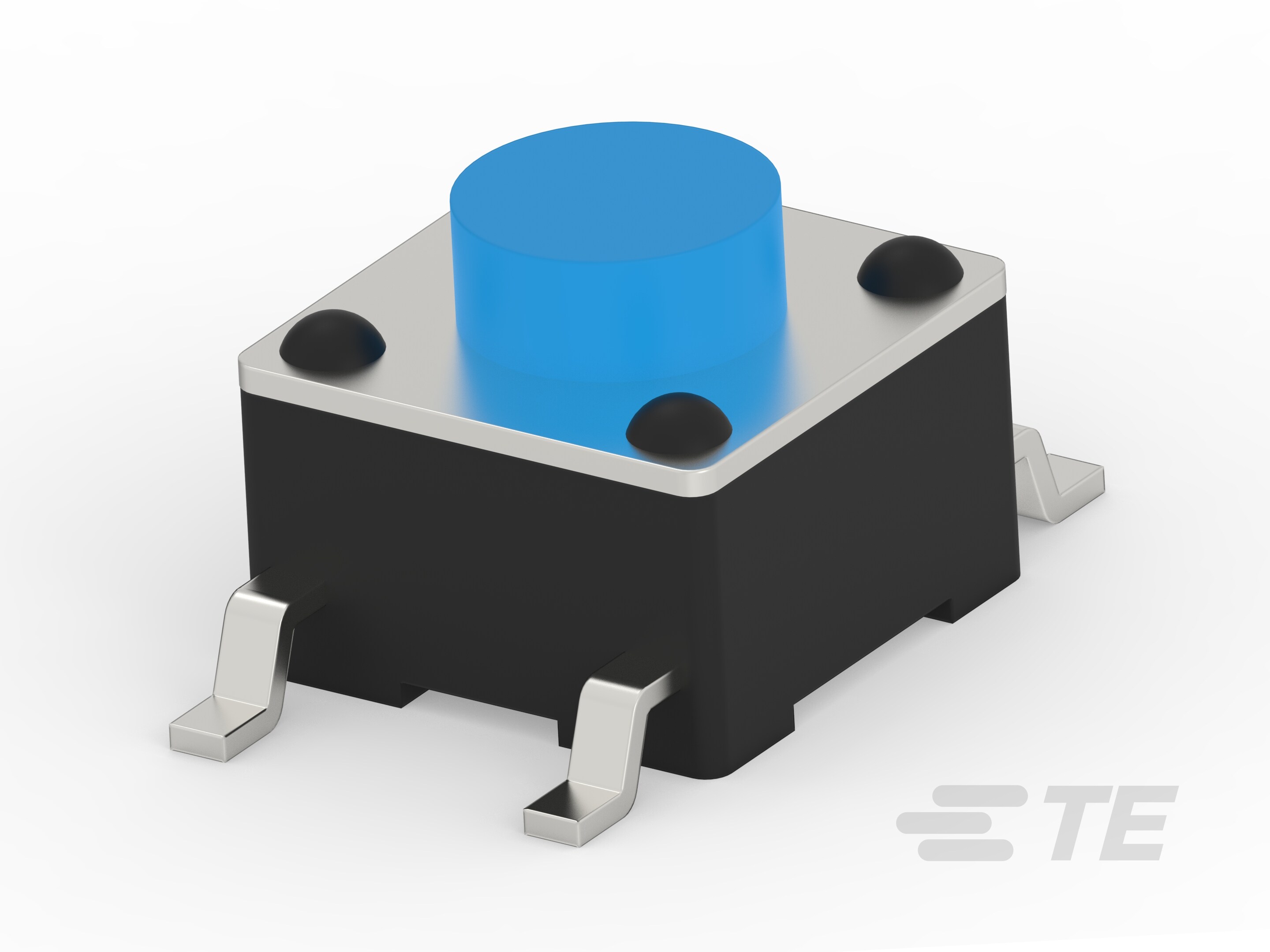

TE Connectivity AMP Connectors 1571563-8	1000000 Cycles	Polyphenylene Sulfide (PPS)	0.25 mm	100 gf	85 °C	-35 °C	SPST-NO	6 mm	6 mm	Non-Illuminated	Gull Wing	0.05 A 24 VDC	Surface Mount	Off-Mom	Top Actuated	Standard	5 mm

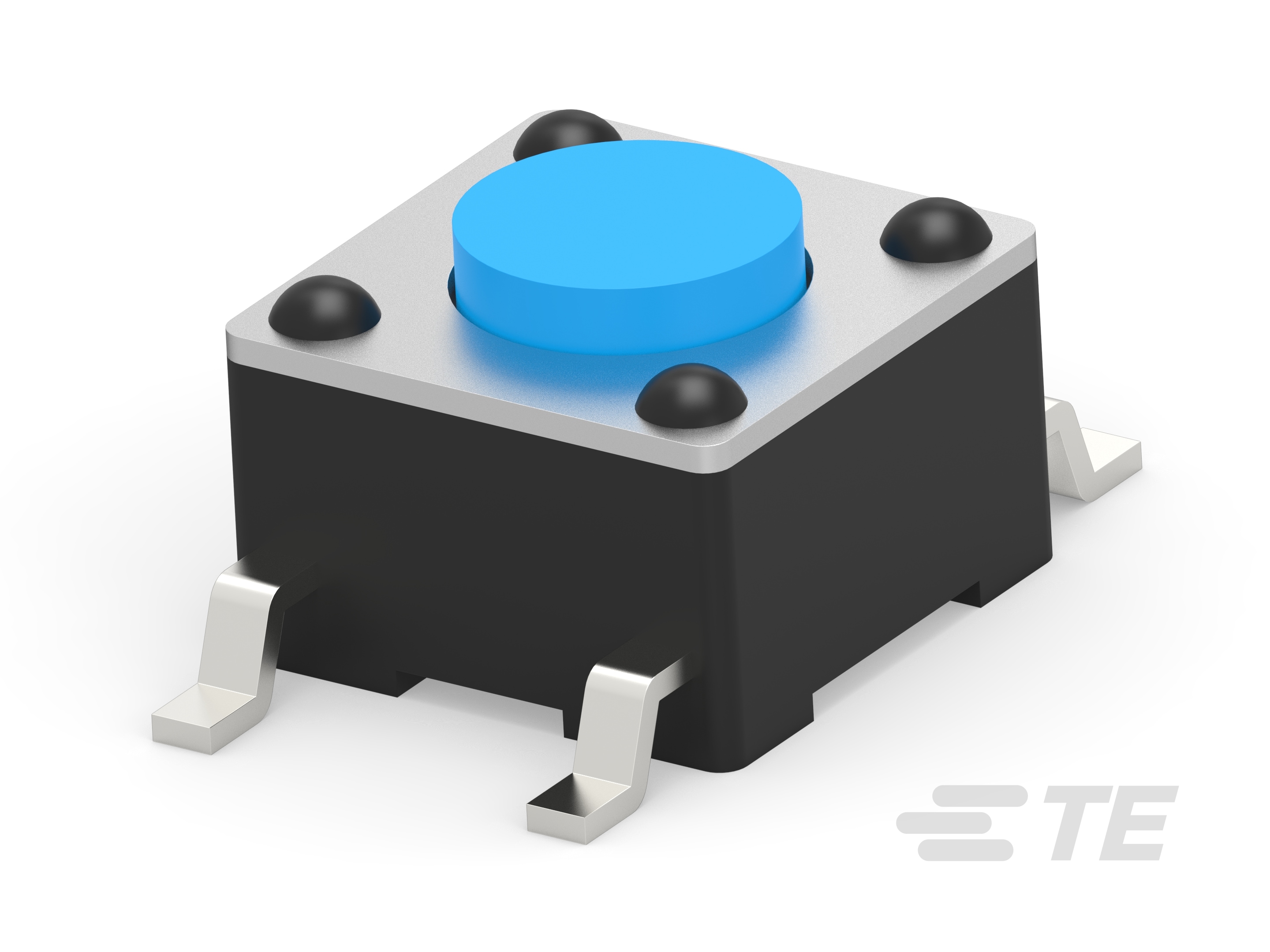

TE Connectivity AMP Connectors 1977223-1				100 gf	105 ░C	-40 C	SPST-NO	6 mm	6 mm	Non-Illuminated	Gull Wing	0.05 A 24 VDC	Surface Mount	Off-Mom	Top Actuated	Standard	4.3 mm
TE Connectivity AMP Connectors 1571563-9	100000 Cycles	Polyphenylene Sulfide (PPS)	0.25 mm	160 gf	85 °C	-35 °C	SPST-NO	6 mm	6 mm	Non-Illuminated	Gull Wing	0.05 A 24 VDC	Surface Mount	Off-Mom	Top Actuated	Standard	9.5 mm
