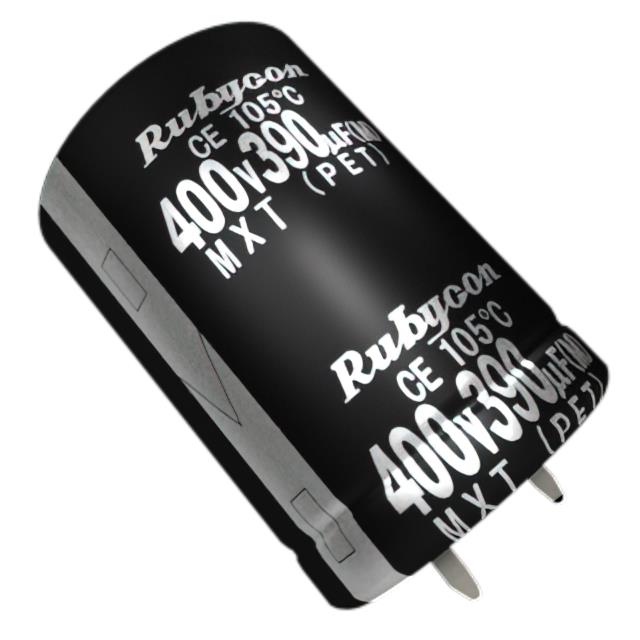

MXT Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 420VDC 390UF 20%

Part	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Size / Dimension	Size / Dimension [diameter]	Tolerance	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency	Applications	Package / Case	Lifetime @ Temp.	Polarization	Mounting Type	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Height - Seated (Max)
Rubycon 420MXT390MEFCSN30X30	0.394 in	10 mm	105 ░C	-25 °C	390 µF	30 mm	1.181 "	20 %	420 V	1.26 in	32 mm	2.128 A	General Purpose	Radial Can - Snap-In	3000 Hrs	Polar	Through Hole	1.52 A
Rubycon 400MXT390MEFCSN22X45	0.394 in	10 mm	105 ░C	-25 °C	390 µF		0.866 "	20 %	400 V			2.324 A	General Purpose	Radial Can - Snap-In	3000 Hrs	Polar	Through Hole	1.66 A	1.85 in	47 mm	22 mm
Rubycon 475MXT270MEFCSN22X45	0.394 in	10 mm	105 ░C	-25 °C	270 µF		0.866 "	20 %	475 V			2.072 A	General Purpose	Radial Can - Snap-In	3000 Hrs	Polar	Through Hole	1.48 A	1.85 in	47 mm	22 mm
Rubycon 475MXT270MEFCSN25X35	0.394 in	10 mm	105 ░C	-25 °C	270 µF		0.984 "	20 %	475 V	1.457 in		1.96 A	General Purpose	Radial Can - Snap-In	3000 Hrs	Polar	Through Hole	1.4 A			25 mm	37 mm
Rubycon 450MXT270MEFCSN22X40	0.394 in	10 mm	105 ░C	-25 °C	270 µF		0.866 "	20 %	450 V	1.654 in	42 mm	1.96 A	General Purpose	Radial Can - Snap-In	3000 Hrs	Polar	Through Hole	1.4 A			22 mm
Rubycon 450MXT1000MEFCSN35X50	0.394 in	10 mm	105 ░C	-25 °C	1000 µF		1.378 "	20 %	450 V			3.57 A	General Purpose	Radial Can - Snap-In	3000 Hrs	Polar	Through Hole	2.55 A	2.047 in	52 mm	35 mm
Rubycon 450MXT680MEFCSN35X40	0.394 in	10 mm	105 ░C	-25 °C	680 µF		1.378 "	20 %	450 V	1.654 in	42 mm	2.94 A	General Purpose	Radial Can - Snap-In	3000 Hrs	Polar	Through Hole	2.1 A			35 mm
