M55342 Series

Catalog

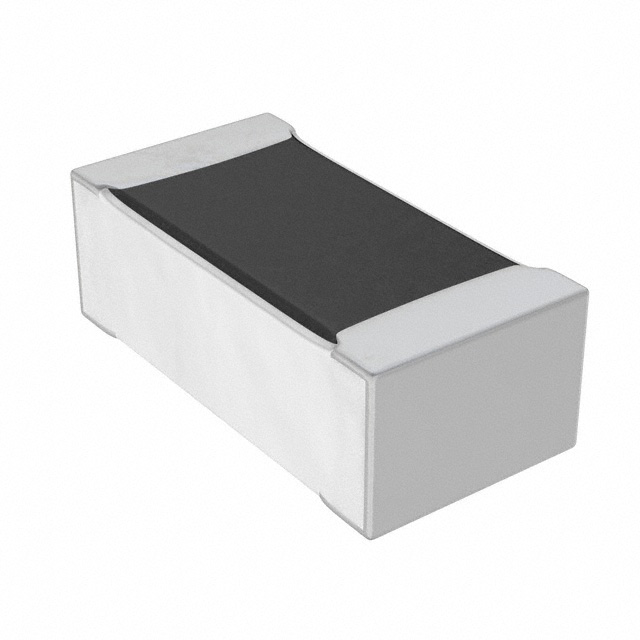

RES SMD 4.7K OHM 0.1% 1/10W 0603

Part	Power (Watts)	Power (Watts)	Temperature Coefficient	Resistance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Package / Case	Tolerance	Composition	Operating Temperature [Min]	Operating Temperature [Max]	Failure Rate	Number of Terminations [custom]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Supplier Device Package
TT Electronics/IRC M55342E12B4B70R	0.1 W	0.1 W	25 ppm/°C	4.7 kOhms	0.031 in	1.6 mm	0.8 mm	0.063 "	0.6 mm	0.024 in	1608 Metric	0603	0.1 %	Thin Film	-55 C	150 °C	R (0.01%)	2

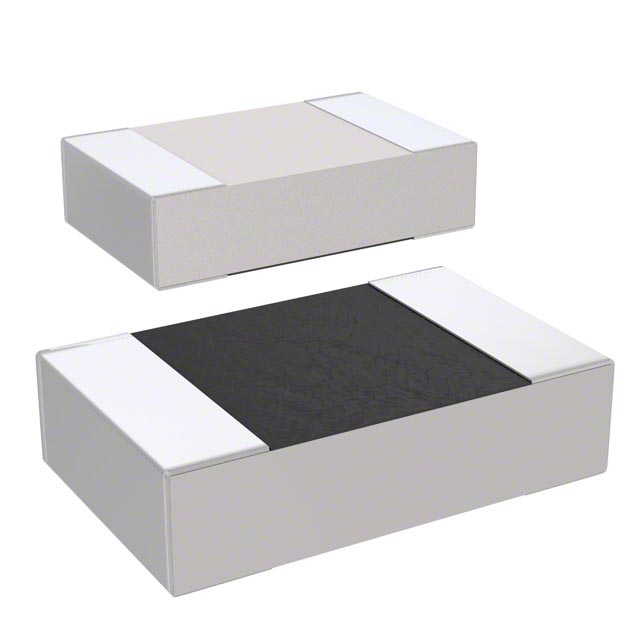

TT Electronics/IRC M55342E06B1B00R	150 mW		25 ppm/°C	1000 Ohms	0.05 in	2.06 mm		0.081 in	0.66 mm			0805	0.1 %	Thin Film	-55 C	150 °C	R (0.01%)	2	1.27 mm	0.026 in	0805
