SLW10 Series

Catalog

CONN CIC BOTTOM 10POS 1MM R/A

Part	Actuator Color	Housing Color	Mating Cycles	Locking Feature	Pitch	Pitch	Voltage Rating	Actuator Material	Flat Flex Type	Number of Positions	Contact Finish	Material Flammability Rating	Housing Material	Mounting Type	Connector/Contact Type	Termination	Cable End Type	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness	Contact Material	Features
Amphenol ICC (FCI) SLW10R-5C7LF	White	Black	20	Slide Lock	1 mm	0.039 in	100 V	Glass Filled Nylon Polyamide (PA)	CIC	10	Tin	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Right Angle Through Hole	Contacts Bottom	Kinked Pin	Tapered	0.157 in	4 mm	-55 C	85 °C	0.3 mm	Phosphor Bronze

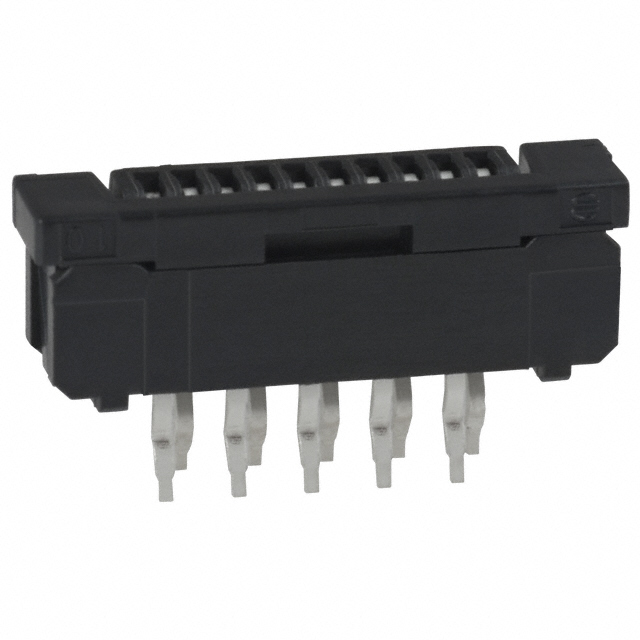

Amphenol ICC (FCI) SLW10S-1C7LF		Black	20	Slide Lock	1 mm	0.039 in	100 V	Glass Filled Nylon Polyamide (PA)	FFC FPC	10	Tin	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Through Hole	Contacts Vertical - 1 Sided	Kinked Pin		0.217 in	5.5 mm	-55 C	85 °C	0.33 mm	Phosphor Bronze

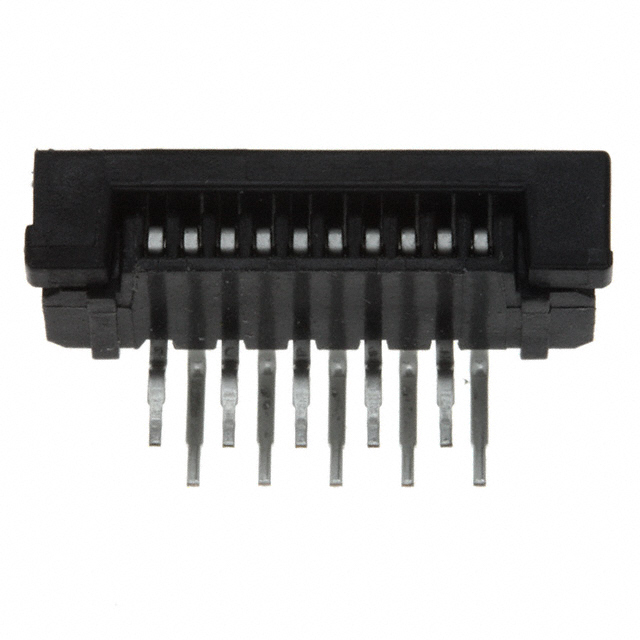

Amphenol ICC (FCI) SLW10R-1C7LF	Black	Black	20	Flip Lock	1 mm	0.039 in	100 V	Glass Filled Nylon Polyamide (PA)	FFC FPC	10	Tin	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Right Angle Through Hole	Contacts Bottom	Solder	Notched Tabbed	0.157 in	4 mm	-55 C	85 °C	0.3 mm	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)
