J1512C Series

Catalog

RELAY GEN PURPOSE DPDT 20A 220V

Part	Coil Resistance	Contact Form	Must Operate Voltage	Must Release Voltage	Operate Time	Contact Material	Features	Coil Current	Mounting Type	Coil Type	Release Time	Relay Type	Load - Max Switching	Coil Voltage	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Switching Voltage [Max]

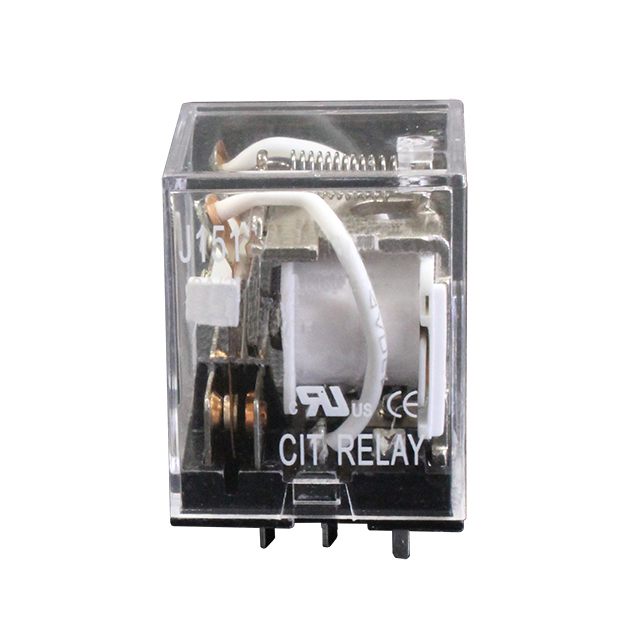

CIT Relay and Switch J1512CP220VAC1.2D	14.4 kOhms	DPDT (2 Form C)	176 VAC	66 VAC	25 ms	Silver Cadmium Oxide (AgCdO)	Lighted Indicator	15.3 mA	Through Hole	Non Latching	25 ms	General Purpose	6000 VA	220 VAC/DC	12 A	85 °C	-40 C	PC Pin	300 VAC

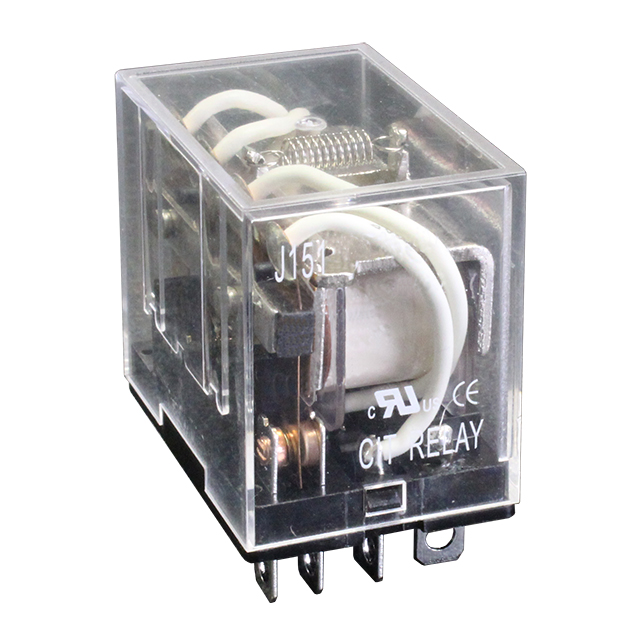

CIT Relay and Switch J1512CT48VAC1.2	735 Ohms	DPDT (2 Form C)	38.4 VAC	14.4 VAC	25 ms	Silver Cadmium Oxide (AgCdO)		65.3 mA	Socketable	Non Latching	25 ms	General Purpose	6000 VA	48 VAC	12 A	85 °C	-40 C	Plug In	300 VAC

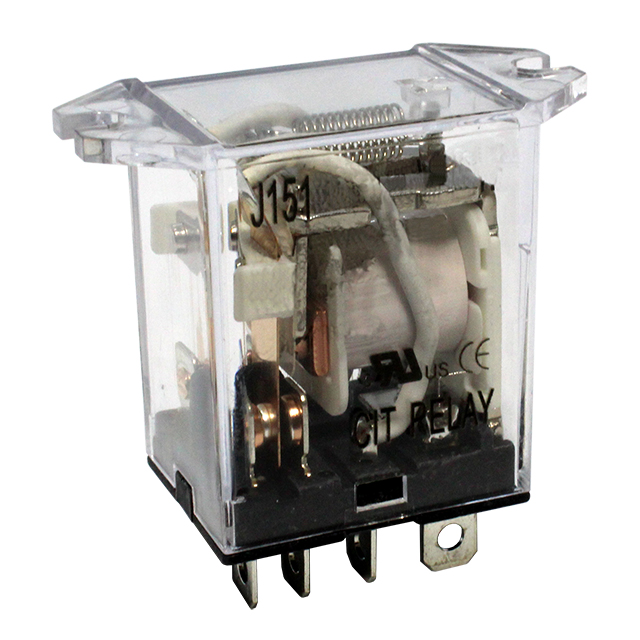

CIT Relay and Switch J1512CF24VDC.9D	650 Ohms	DPDT (2 Form C)	18 VDC	2.4 VDC	25 ms	Silver Cadmium Oxide (AgCdO)	Lighted Indicator	36.9 mA	Chassis Mount	Non Latching	25 ms	General Purpose	6000 VA	24 VDC	12 A	85 °C	-40 C	Plug In	300 VAC
CIT Relay and Switch J1512CF48VAC1.2	735 Ohms	DPDT (2 Form C)	38.4 VAC	14.4 VAC	25 ms	Silver Cadmium Oxide (AgCdO)		65.3 mA	Chassis Mount	Non Latching	25 ms	General Purpose	6000 VA	48 VAC	12 A	85 °C	-40 C	Plug In	300 VAC
CIT Relay and Switch J1512CT220VDC.9D	53.778 kOhms	DPDT (2 Form C)	165 VDC	22 VDC	25 ms	Silver Cadmium Oxide (AgCdO)	Lighted Indicator	4.1 mA	Socketable	Non Latching	25 ms	General Purpose	6000 VA	220 VDC	12 A	85 °C	-40 C	Plug In	300 VAC
CIT Relay and Switch J1512CP110VAC1.2		DPDT (2 Form C)	88 VAC/DC	33 VAC	25 ms	Silver Cadmium Oxide (AgCdO)		28.2 mA	Through Hole	Non Latching	25 ms	General Purpose	6000 VA	110 VAC/DC	12 A	85 °C	-40 C	PC Pin	300 VAC
CIT Relay and Switch J1512CT120VAC1.2	4.55 kOhms	DPDT (2 Form C)	96 VAC	36 VAC	25 ms	Silver Cadmium Oxide (AgCdO)		26.4 mA	Socketable	Non Latching	25 ms	General Purpose	6000 VA	120 VAC	12 A	85 °C	-40 C	Plug In	300 VAC
CIT Relay and Switch J1512CF110VAC1.2D		DPDT (2 Form C)	88 VAC/DC	33 VAC	25 ms	Silver Cadmium Oxide (AgCdO)	Lighted Indicator	28.2 mA	Chassis Mount	Non Latching	25 ms	General Purpose	6000 VA	110 VAC/DC	12 A	85 °C	-40 C	Plug In	300 VAC
CIT Relay and Switch J1512CP12VAC1.2D	46 Ohms	DPDT (2 Form C)	9.6 VAC/DC	3.6 VAC	25 ms	Silver Cadmium Oxide (AgCdO)	Lighted Indicator	260.9 mA	Through Hole	Non Latching	25 ms	General Purpose	6000 VA	12 VAC	12 A	85 °C	-40 C	PC Pin	300 VAC
CIT Relay and Switch J1512CT48VDC.9	2.6 kOhms	DPDT (2 Form C)	36 VDC	4.8 VDC	25 ms	Silver Cadmium Oxide (AgCdO)		18.5 mA	Socketable	Non Latching	25 ms	General Purpose	6000 VA	48 VDC	12 A	85 °C	-40 C	Plug In	300 VAC
