MPCV1060 Series
Manufacturer: KEMET
Beta
⌘K

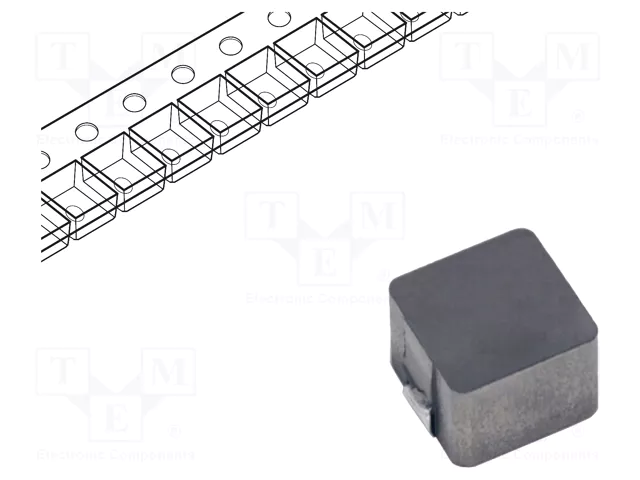

INDUCTOR: WIRE; SMD; 1.5UH; IOPER: 22A; 2.5MΩ; ±20%; ISAT: 27A
| Part | Ratings | Height - Seated (Max) | Height - Seated (Max) [Max] | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Material - Core | Package / Case | Inductance Frequency - Test | Tolerance | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | AEC-Q200 | 6 mm | 0.236 " | 22 A | 27 A | 1.5 µH | Shielded | 2.75 mOhm | 10 mm | 0.394 in | 12 mm | 0.472 in | Surface Mount | 155 C | -55 C | Metal Composite | Nonstandard | 100 kHz | 20 % | |
 KEMET | AEC-Q200 | 6 mm | 0.236 " | 32 A | 38 A | 0.68 µH | Shielded | 10 mm | 0.394 in | 12 mm | 0.472 in | Surface Mount | 155 C | -55 C | Metal Composite | Nonstandard | 100 kHz | 20 % | 1.54 mOhm | |
 KEMET | AEC-Q200 | 6 mm | 0.236 " | 26 A | 35 A | 1 µH | Shielded | 1.87 mOhm | 10 mm | 0.394 in | 12 mm | 0.472 in | Surface Mount | 155 C | -55 C | Metal Composite | Nonstandard | 100 kHz | 20 % |
