146852 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

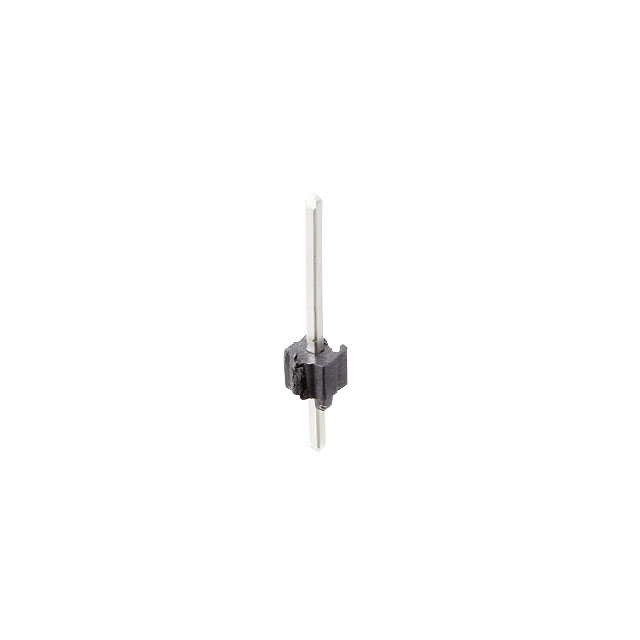

CONN HEADER VERT 25000POS 2.54MM
| Part | Contact Shape | Style | Insulation Height | Insulation Height | Connector Type | Pitch - Mating | Pitch - Mating | Contact Material | Termination | Number of Positions | Overall Contact Length | Overall Contact Length | Contact Length - Post | Contact Length - Post | Number of Rows | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Contact Type | Fastening Type | Contact Length - Mating [x] | Contact Length - Mating [x] | Insulation Material | Shrouding | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Mounting Type | Material Flammability Rating | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Square | Board to Board Cable | 0.1 in | 2.54 mm | Breakaway Header | 0.1 in | 2.54 mm | Copper Alloy | Solder | Cuttable | 13.55 mm | 0.533 in | 2.92 mm | 0.115 in | 1 | Black | -65 ░C | 105 ░C | Tin | Male Pin | Push-Pull | 0.318 " | 8.08 mm | Thermoplastic | Unshrouded | 2.54 µm | 100 µin | 2.54 çm | 100 çin | 3 A | Through Hole | UL94 V-0 | All |
