19397060 Series
Manufacturer: HARTING
Beta
⌘K
HAN 6 HP DIRECT M HOOD, TOP ENTRY, M20
| Part | Style | Connector Type | Housing Color | Ingress Protection | Housing Material | Thread Size | Operating Temperature [Max] | Operating Temperature [Min] | Lock Location | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size | Housing Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

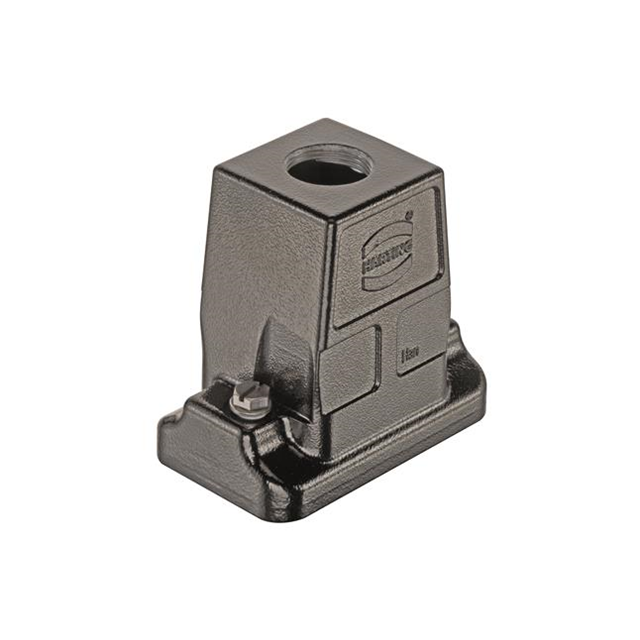

 HARTING | Top Entry | Hood | Black | IP66 IP68 IP69K | Aluminum Die Cast | M20 | 125 °C | -40 C | Screw Locks on Hood | 57 mm | 2.244 " | 3.661 " | 93 mm | 90 mm | 3.543 " | 6B | Powder Coated |

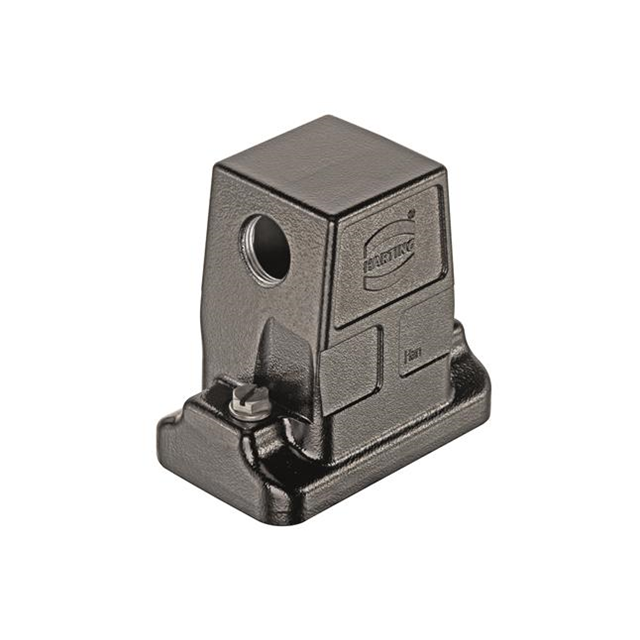

 HARTING | Side Entry | Hood | Black | IP66 IP68 IP69K | Aluminum Die Cast | M20 | 125 °C | -40 C | Screw Locks on Hood | 57 mm | 2.244 " | 3.661 " | 93 mm | 91 mm | 3.583 in | 6B | Powder Coated |
HARTING | Side Entry | Hood | Black | IP66 IP68 IP69K | Aluminum Die Cast | M32 | 125 °C | -40 C | Screw Locks on Hood | 57 mm | 2.244 " | 3.661 " | 93 mm | 91 mm | 3.583 in | 6B | Powder Coated |
HARTING | Top Entry | Hood | Black | IP66 IP68 IP69K | Aluminum Die Cast | 125 °C | -40 C | Screw Locks on Hood | 57 mm | 2.244 " | 3.661 " | 93 mm | 90 mm | 3.543 " | 6B | Powder Coated |
