ATMEGA169 Series

Manufacturer: Atmel

Catalog

IC MCU 8BIT 16KB FLASH 64QFN

Part	EEPROM Size [custom]	EEPROM Size [custom]	Peripherals	Program Memory Type	Oscillator Type	Connectivity	Package / Case	Program Memory Size	RAM Size	Number of I/O	Supplier Device Package	Speed	Core Size	Data Converters	Core Processor	Mounting Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package [x]	Supplier Device Package [y]
Atmel ATMEGA169P-16MCH	512	8	Brown-out Detect/Reset LCD POR PWM WDT	FLASH	Internal	SPI UART/USART USI	64-VQFN Dual Rows Exposed Pad	16 KB	1K x 8	54	64-QFN (7x7)	16 MHz	8-Bit	A/D 8x10b	AVR	Surface Mount	5.5 V	2.7 V	85 C	-40 ¯C
Atmel ATMEGA169P-16MCU	512	8	Brown-out Detect/Reset LCD POR PWM WDT	FLASH	Internal	SPI UART/USART USI	64-VQFN Dual Rows Exposed Pad	16 KB	1K x 8	54	64-QFN (7x7)	16 MHz	8-Bit	A/D 8x10b	AVR	Surface Mount	5.5 V	2.7 V	85 C	-40 ¯C

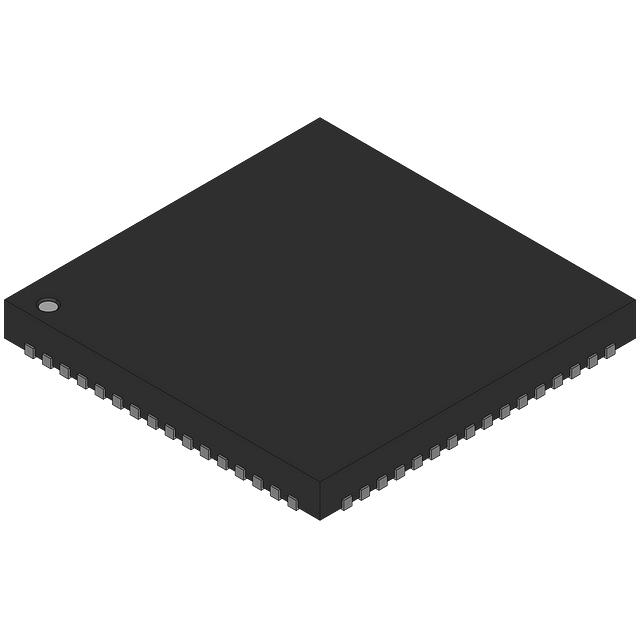

Atmel ATMEGA169PV-8MCHR	512	8	Brown-out Detect/Reset LCD POR PWM WDT	FLASH	Internal	SPI UART/USART USI	64-VQFN Dual Rows Exposed Pad	16 KB	1K x 8	54	64-QFN (7x7)	8 MHz	8-Bit	A/D 8x10b	AVR	Surface Mount	5.5 V	1.8 V	85 C	-40 ¯C
Atmel ATMEGA169-16MU	512	8	Brown-out Detect/Reset LCD POR PWM WDT	FLASH	Internal	SPI UART/USART USI	64-VFQFN Exposed Pad	16 KB	1K x 8	54	64-QFN	16 MHz	8-Bit	A/D 8x10b	AVR	Surface Mount	5.5 V	2.7 V	85 C	-40 ¯C	9	9
Atmel ATMEGA169-16AU	512	8	Brown-out Detect/Reset LCD POR PWM WDT	FLASH	Internal	SPI UART/USART USI	64-TQFP	16 KB	1K x 8	54	64-TQFP (14x14)	16 MHz	8-Bit	A/D 8x10b	AVR	Surface Mount	5.5 V	2.7 V	85 C	-40 ¯C
Atmel ATMEGA169PV-8MCH	512	8	Brown-out Detect/Reset LCD POR PWM WDT	FLASH	Internal	SPI UART/USART USI	64-VQFN Dual Rows Exposed Pad	16 KB	1K x 8	54	64-QFN (7x7)	8 MHz	8-Bit	A/D 8x10b	AVR	Surface Mount	5.5 V	1.8 V	85 C	-40 ¯C
