K120 Series Series

High Performance Key Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

High Performance Key Switch

Part	Features	Actuator Marking	Voltage Rating - DC	Circuit	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Current Rating (Amps)	Switch Function	Electrical Life	Actuator Type	Termination Style	Mounting Type	Type	Illumination Type, Color
Littelfuse/Commercial Vehicle Products K12PYE25N	Tactile Feedback	No Marking	30 V	SPST-NO	Yellow	85 °C	-40 °C	IP40	100 mA	Off-Mom	1000000 Cycles	Button Round	PC Pin	Through Hole	Keyswitch
Littelfuse/Commercial Vehicle Products K12ABK12.5N	Tactile Feedback	No Marking	30 V	SPST-NO	Black	85 °C	-40 °C	IP40	100 mA	Off-Mom	1000000 Cycles	Button Round	PC Pin	Through Hole	Keyswitch
Littelfuse/Commercial Vehicle Products K12PL0G15NLV315	Tactile Feedback	No Marking	30 V	SPST-NO	Black	85 °C	-40 °C	IP40	100 mA	Off-Mom	1000000 Cycles	Button Round	PC Pin	Through Hole	Keyswitch Illuminated	LED Orange

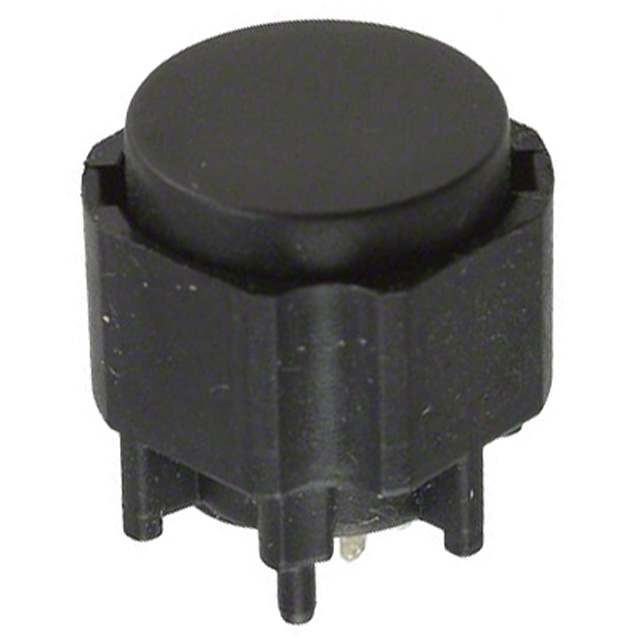

Littelfuse/Commercial Vehicle Products K12A BK 1.5 5N	Tactile Feedback	No Marking	30 V	SPST-NO	Black	85 °C	-40 °C	IP40	100 mA	Off-Mom	1000000 Cycles	Button Round	PC Pin	Through Hole	Keyswitch

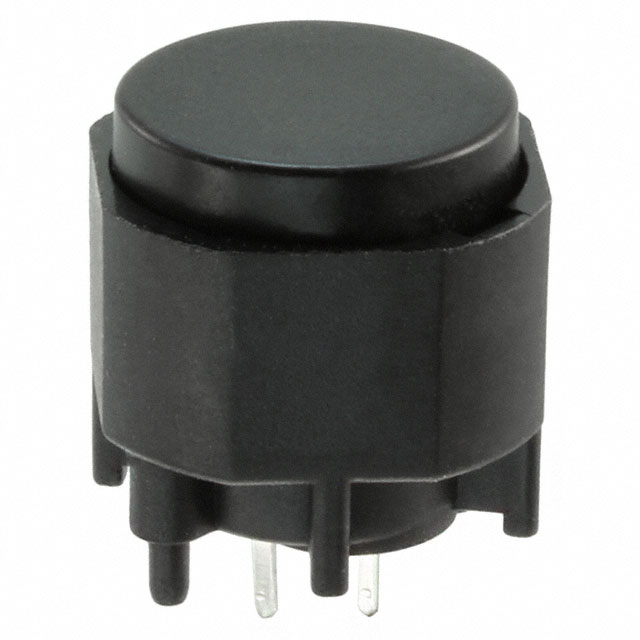

Littelfuse/Commercial Vehicle Products K12ABK15N	Tactile Feedback	No Marking	30 V	SPST-NO	Black	85 °C	-40 °C	IP40	100 mA	Off-Mom	1000000 Cycles	Button Round	PC Pin	Through Hole	Keyswitch
Littelfuse/Commercial Vehicle Products K12PBK23.5N	Tactile Feedback	No Marking	30 V	SPST-NO	Black	85 °C	-40 °C	IP40	100 mA	Off-Mom	1000000 Cycles	Button Round	PC Pin	Through Hole	Keyswitch
Littelfuse/Commercial Vehicle Products K12PBK1.51.5N0D1R	Tactile Feedback	No Marking	30 V	SPST-NC	Black	85 °C	-40 °C	IP40	100 mA	On-Mom	1000000 Cycles	Button Round	PC Pin	Through Hole	Keyswitch
Littelfuse/Commercial Vehicle Products K12PLRD1.55NLV352	Tactile Feedback	No Marking	30 V	SPST-NO	Black	85 °C	-40 °C	IP40	100 mA	Off-Mom	1000000 Cycles	Button Round	PC Pin	Through Hole	Keyswitch Illuminated	LED Red
Littelfuse/Commercial Vehicle Products K12PLGN15NLV306	Tactile Feedback	No Marking	30 V	SPST-NO	Black	85 °C	-40 °C	IP40	100 mA	Off-Mom	1000000 Cycles	Button Round	PC Pin	Through Hole	Keyswitch Illuminated	Green LED
Littelfuse/Commercial Vehicle Products K12PLGN1.52.5NLV306	Tactile Feedback	No Marking	30 V	SPST-NO	Black	85 °C	-40 °C	IP40	100 mA	Off-Mom	1000000 Cycles	Button Round	PC Pin	Through Hole	Keyswitch Illuminated	Green LED

Catalog

High Performance Key Switch

Key Features

• Excellent tactile feel

• Wide choice of LED colors, travel and actuator forces

• High reliability / long life

Description

With a wide choice of LED colors, travel and actuator forces available, C&K’s K12 High Performance keyswitch is perfect for motorcycles, off-road vehicles, joysticks, networking equipment or industrial electronics. The K12 is designed for low-level switching and is made to last. It can be sealed for environmental protection, and is available in double stroke or detector versions as well.
