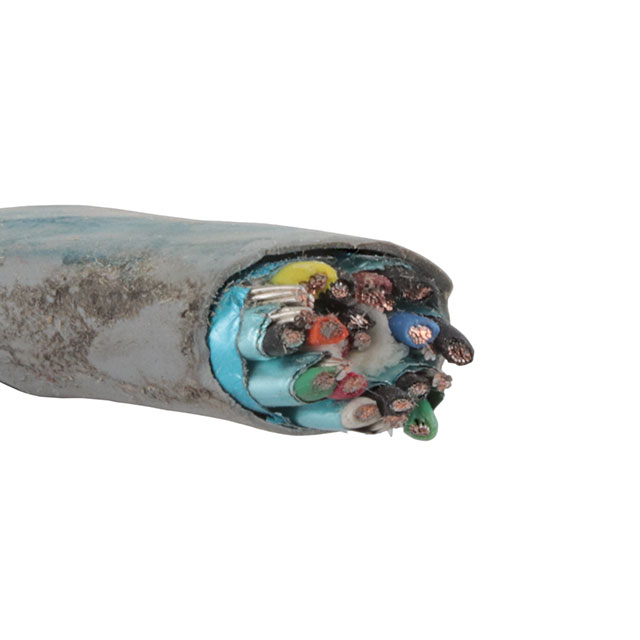

78248 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 16COND 20AWG
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Length | Length | Features | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Voltage | Ratings | Number of Conductors | Conductor Material | Wire Gauge | Cable Type | Conductor Insulation | Jacket (Insulation) Material | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 19 | 32 AWG | 9.37 mm | 0.369 " | 80 °C | -40 C | Slate | 304.8 m | 1000 ft | Biological Compatibility Drain Wire Rip Cord | 0.381 mm | 0.015 in | 300 VDC | ISO 10993 UL Style 21460 | 16 | Copper Tinned | 20 AWG | Multi-Pair | Polyphenylene Ether Modified (mPPE) | Polyphenylene Ether Modified (mPPE) | Foil |
