M4638 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

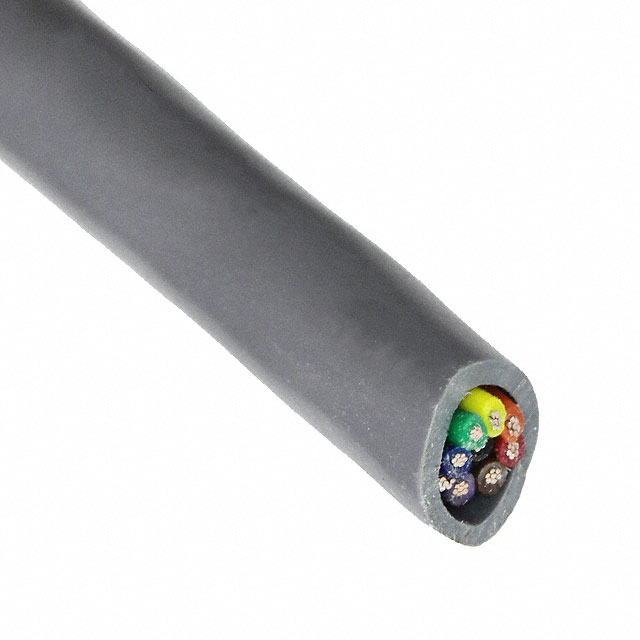

CABLE 8COND 22AWG SHLD 3000'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Voltage | Number of Conductors [custom] | Ratings | Cable Type | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Length | Length | Jacket Color | Conductor Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 0.813 mm | 0.032 in | Drain Wire Rip Cord | 6.02 mm | 0.237 " | 22 AWG | 300 VDC | 8 | UL Style 2464 | Multi-Conductor | Foil | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | 914.4 m | 3000 ' | Slate | Copper Tinned | ||
ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 0.813 mm | 0.032 in | Drain Wire Rip Cord | 6.02 mm | 0.237 " | 22 AWG | 300 VDC | 8 | UL Style 2464 | Multi-Conductor | Foil | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | Slate | Copper Tinned | 100 ft | 30.5 m | ||
ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 0.813 mm | 0.032 in | Drain Wire Rip Cord | 6.02 mm | 0.237 " | 22 AWG | 300 VDC | 8 | UL Style 2464 | Multi-Conductor | Foil | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Slate | Copper Tinned |
