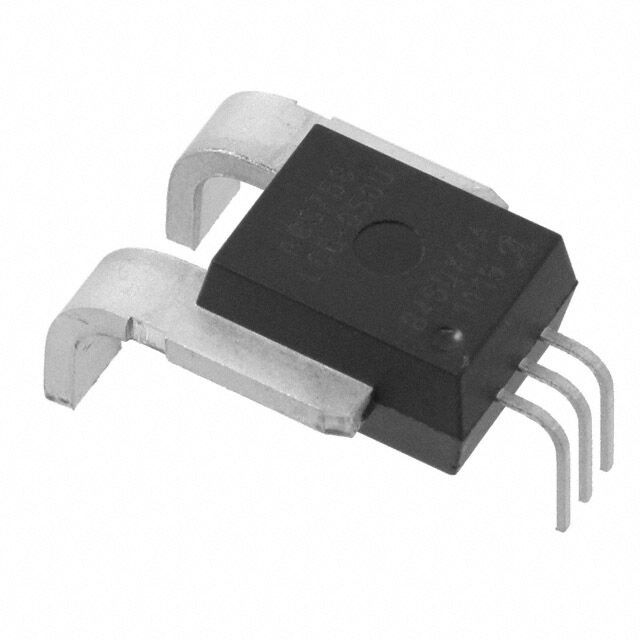

ACS772 Series
Manufacturer: Allegro MicroSystems
Beta
⌘K
BOARD MOUNT CURRENT SENSORS HIGH ACCURACY HALL-EFFECT CURRENT SENSOR IC
| Part | Package / Case | Sensitivity | Grade | Number of Channels [custom] | Current - Supply (Max) [Max] | Accuracy | Current - Sensing | Frequency [Min] | Frequency [Max] | Response Time | Voltage - Supply [Max] | Voltage - Supply [Min] | For Measuring | Linearity | Sensor Type | Polarization | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Qualification | Output | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Allegro MicroSystems | 5-CB Formed Leads PFF | 6.66 mV/A | Automotive | 1 | 15 mA | 1.7 % | 300 A | DC | 200 kHz | 2.5 µs | 5.5 V | 4.5 V | AC DC | 0.9 % | Hall Effect | Bidirectional | 5-CB Module | 85 °C | -40 C | AEC-Q100 | Ratiometric Voltage | Through Hole |
 Allegro MicroSystems | 5-CB Formed Leads PFF | 8 mV/A | Automotive | 1 | 15 mA | 250 A | DC | 200 kHz | 2.5 µs | 5.5 V | 4.5 V | AC DC | 0.9 % | Hall Effect Open Loop | Bidirectional | 5-CB Module | 85 °C | -40 C | AEC-Q100 | Ratiometric Voltage | Through Hole | |
 Allegro MicroSystems | 5-CB Formed Leads SMT | 20 mV/mT | Automotive | 1 | 15 mA | 100 A | DC | 200 kHz | 2.5 µs | 5.5 V | 4.5 V | AC DC | 0.9 % | Hall Effect | Bidirectional | 5-CB | 150 °C | -40 C | AEC-Q100 | Ratiometric Voltage | Surface Mount |
