1414469 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

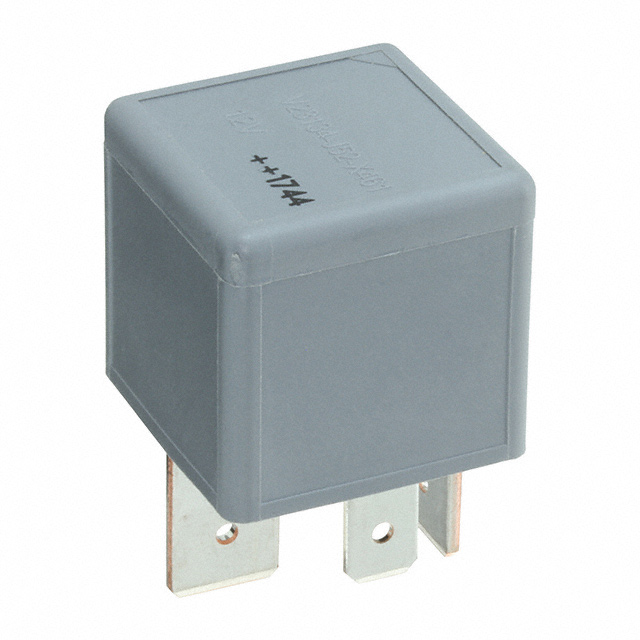

RELAY GEN PURPOSE SPST 70A 12V
| Part | Coil Power | Coil Resistance | Contact Material | Mounting Type | Must Operate Voltage | Operate Time | Release Time | Coil Current | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Must Release Voltage | Termination Style | Contact Rating (Current) | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1.6 W | 90 Ohms | Silver Alloy | Socketable | 7.2 VDC | 7 ms | 2 ms | 133.3 mA | 12 VDC | 125 °C | -40 C | SPST-NO (1 Form A) | 1.6 VDC | Plug In | 70 A | Non Latching |
