13-610 Series

Catalog

12-10 AWG NON-INSULATED BRAZED SEAM MULTI-STUD RING TONGUE TER

Part	Mounting Type	Terminal Type	Features	Termination	Length - Overall [x]	Length - Overall [x]	Thickness	Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Stud/Tab Size	Contact Finish	Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Material - Insulation	Color
3M Electronic Specialty 13-610-W	Free Hanging (In-Line)	Multi-Stud	Brazed Seam	Crimp	22.61 mm	0.89 in	0.04 in	1.02 mm	10 AWG	12 AWG	Copper ETP	6 Stud 8 Stud 10 Stud	Tin	Non-Insulated	0.39 in	9.91 mm

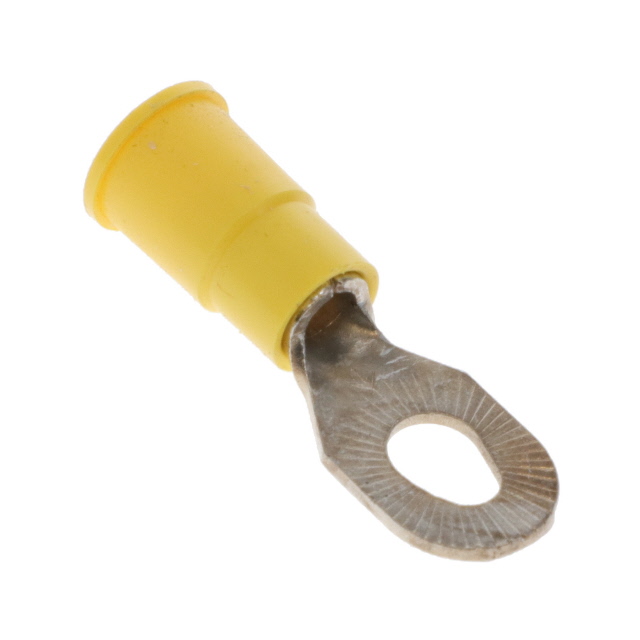

3M Electronic Specialty 13-610-P	Free Hanging (In-Line)	Multi-Stud	Butted Seam	Crimp	30.23 mm	1.19 in	0.04 in	1.02 mm	10 AWG	12 AWG	Copper ETP	6 Stud 8 Stud 10 Stud	Tin	Insulated	0.39 in	9.91 mm	6.35 mm	0.25 in	Vinyl	Yellow
