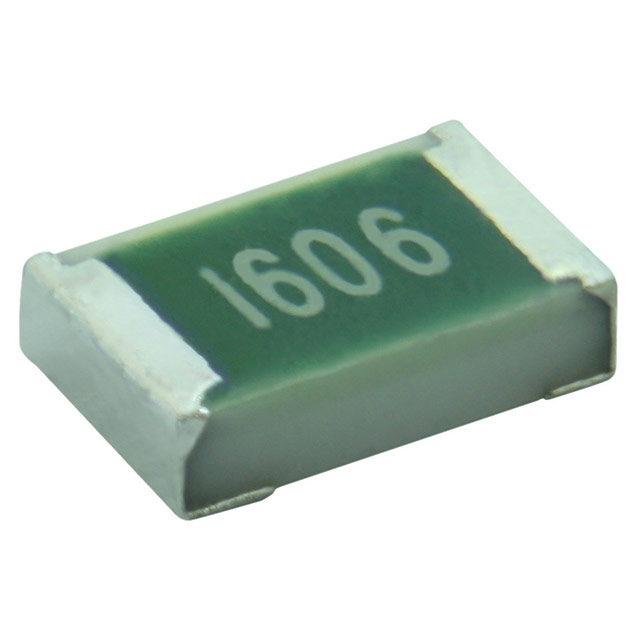

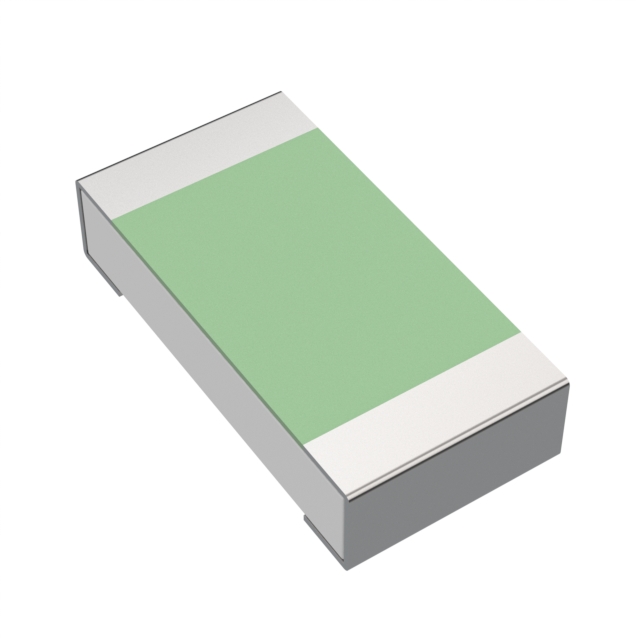

TNPW0805 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

Catalog

FIXED RESISTOR, THIN FILM, 0.125W, 105000OHM, 150V, 0.1% +/-TOL, 25PPM/CEL, SURFACE MOUNT, 0805, CHIP

...

Part	Supplier Device Package	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Features	Composition	Resistance	Number of Terminations	Temperature Coefficient	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Power (Watts)	Power (Watts)	Ratings	Power (Watts)
Vishay General Semiconductor - Diodes Division TNPW0805105KBETA	0805	2 mm	0.079 in	0.049 in	1.25 mm	0.1 %	-55 °C	125 °C	Military	Thin Film	105 kOhms	2	25 ppm/°C	0805	0.022 in	0.55 mm	0.125 W	0.125 W
Vishay General Semiconductor - Diodes Division TNPW0805100KBHEA	0805	2 mm	0.079 in	0.049 in	1.25 mm	0.1 %	-55 °C	347 °F	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	Thin Film	100 kOhms	2	50 ppm/°C	0805	0.022 in	0.55 mm			AEC-Q200	0.26 W
Vishay General Semiconductor - Diodes Division TNPW0805816RBECN	0805	2 mm	0.079 in	0.049 in	1.25 mm	0.1 %	-55 °C	125 °C	Military	Thin Film	816 Ohms	2	25 ppm/°C	0805	0.022 in	0.55 mm	0.125 W	0.125 W
Vishay General Semiconductor - Diodes Division TNPW0805316KBECN	0805	2 mm	0.079 in	0.049 in	1.25 mm	0.1 %	-55 °C	125 °C	Military	Thin Film	316 kOhms	2	25 ppm/°C	0805	0.022 in	0.55 mm	0.125 W	0.125 W
Vishay General Semiconductor - Diodes Division TNPW0805562KBETA	0805	2 mm	0.079 in	0.049 in	1.25 mm	0.1 %	-55 °C	125 °C	Military	Thin Film		2	25 ppm/°C	0805	0.022 in	0.55 mm	0.125 W	0.125 W
Vishay General Semiconductor - Diodes Division TNPW0805681RBEEN	0805	2 mm	0.079 in	0.049 in	1.25 mm	0.1 %	-55 °C	347 °F	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	Thin Film	681 Ohms	2	25 ppm/°C	0805	0.022 in	0.55 mm			AEC-Q200	0.26 W
Vishay General Semiconductor - Diodes Division TNPW080598K8BXEN	0805	2 mm	0.079 in	0.049 in	1.25 mm	0.1 %	-55 °C	347 °F	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	Thin Film	98.8 kOhms	2	15 ppm/°C	0805	0.022 in	0.55 mm			AEC-Q200	0.26 W
Vishay General Semiconductor - Diodes Division TNPW08056K73BETY	0805	2 mm	0.079 in	0.049 in	1.25 mm	0.1 %	-55 °C	125 °C	Military	Thin Film	6.73 kOhms	2	25 ppm/°C	0805	0.022 in	0.55 mm	0.125 W	0.125 W
Vishay General Semiconductor - Diodes Division TNPW080576R8BETA	0805	2 mm	0.079 in	0.049 in	1.25 mm	0.1 %	-55 °C	125 °C	Military	Thin Film	76.8 Ohms	2	25 ppm/°C	0805	0.022 in	0.55 mm	0.125 W	0.125 W
Vishay General Semiconductor - Diodes Division TNPW0805392RBEEA	0805	2 mm	0.079 in	0.049 in	1.25 mm	0.1 %	-55 °C	347 °F	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	Thin Film	392 Ohms	2	25 ppm/°C	0805	0.022 in	0.55 mm			AEC-Q200	0.26 W
