A123T11 Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Actuator Material	Voltage Rating - AC	Actuator Type	Mounting Type	Actuator Length [x]	Ingress Protection	Bushing Thread	Termination Style	Switch Function	Illumination	Voltage Rating - DC	Current Rating (Amps)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Circuit
Electroswitch A123T11TWZQ	60000 Cycles	Brass Chrome Plated	125 V	Standard Round	Panel Mount	11.89 mm	Splash Proof	15/32-32	Solder Lug	On-On	Non-Illuminated	28 V	6 A	Epoxy Sealed Terminals	-30 ░C	90 °C	SPDT
Electroswitch A123T11TWZB	60000 Cycles	Brass Chrome Plated	28 V	Standard Round	Panel Mount	11.89 mm	Splash Proof	15/32-32	Solder Lug	On-On	Non-Illuminated	28 V	0.5 VA	Epoxy Sealed Terminals	-30 ░C	90 °C	SPDT
Electroswitch A123T11TZQ	60000 Cycles	Brass Chrome Plated	125 V	Standard Round	Panel Mount	11.89 mm		15/32-32	Solder Lug	On-On	Non-Illuminated	28 V	6 A	Epoxy Sealed Terminals	-30 ░C	90 °C	SPDT

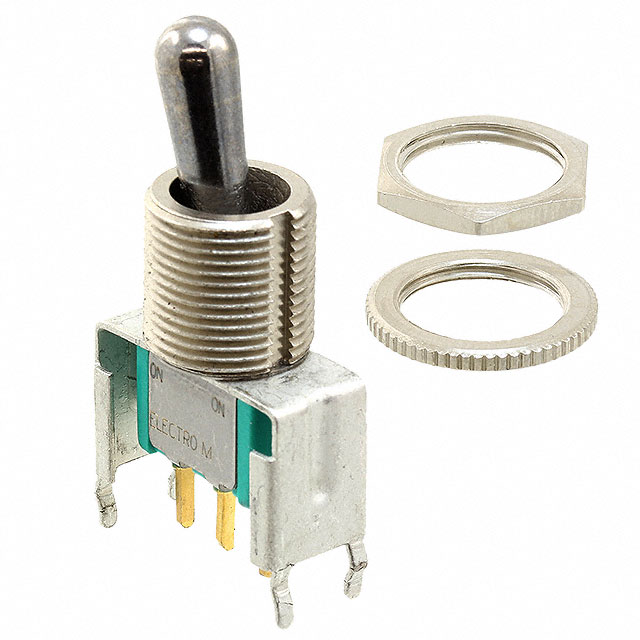

Electroswitch A123T11TXV61B	60000 Cycles	Brass Chrome Plated	28 V	Standard Round	Panel Mount	11.89 mm	Splash Proof	15/32-32	PC Pin	On-On	Non-Illuminated	28 V	0.5 VA	Epoxy Sealed Terminals	-30 ░C	90 °C	SPDT
