9WF Type Series

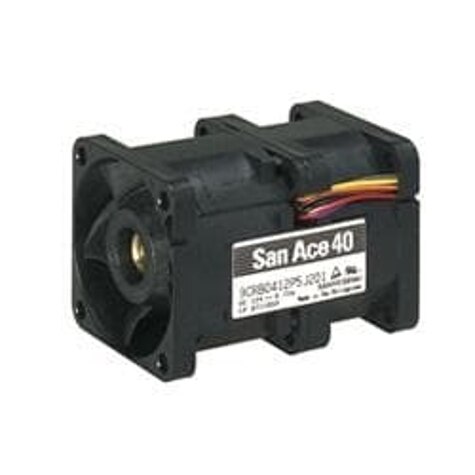

DC Fans DC Axial Fan, 40x40x15mm, 24VDC, Oil Proof, Locked Rotor Sensor
Manufacturer: Sanyo Denki America Inc.
Catalog
DC Fans DC Axial Fan, 40x40x15mm, 24VDC, Oil Proof, Locked Rotor Sensor
Beta
⌘K
DC Fans DC Axial Fan, 40x40x15mm, 24VDC, Oil Proof, Locked Rotor Sensor
DC Fans DC Axial Fan, 40x40x15mm, 24VDC, Oil Proof, Locked Rotor Sensor
DC Fans DC Axial Fan, 40x40x15mm, 24VDC, Oil Proof, Locked Rotor Sensor
| Part | Width [y] | Air Flow | Air Flow | Operating Temperature [Min] | Operating Temperature [Max] | Noise | Fan Type | Size / Dimension [x] | Size / Dimension [z] | Approval Agency | Static Pressure | Static Pressure | Ingress Protection | Weight [custom] | Weight [custom] | Bearing Type | Termination | Voltage - Rated | RPM | Features | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 15 mm | 0.193 m³/min | 6.9 CFM | -20 ░C | 70 °C | 38 dB(A) | Tubeaxial | 40 mm | 40 mm | CSA TUV UL | 79.7 Pa | 0.32 in H2O | Oil Resistant | 0.077 lb | 34.93 g | Ball | 3 Wire Leads | 24 VDC | 11300 RPM | Locked Rotor Sensor | |
 Sanyo Denki America Inc. | 20 mm | 0.258 m³/min | 9.2 CFM | -20 ░C | 70 °C | 42 dB | Tubeaxial | 40 mm | 40 mm | CSA TUV UL | 89.7 Pa | 0.36 in H2O | Oil Resistant | 0.111 lb | 50.35 g | Ball | 3 Wire Leads | 24 VDC | 13100 RPM | Speed Sensor (Tach) | 2.64 W |
