EG Series

Manufacturer: E-Switch

Catalog

SWITCH SLIDE SPDT 300MA 30V

Part	Electrical Life	Operating Force	Mechanical Life	Switch Travel	Current Rating (Amps)	Switch Function	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Contact Timing	Contact Finish	Circuit	Mounting Type	Actuator Length [x]	Voltage Rating - DC	Contact Material	Operating Force [Max]	Operating Force [Min]
E-Switch EG1221A	10000 Cycles	300 gf	10000 Steps	4 mm	300 mA	On-On	PC Pin	-20 ░C	70 °C	Standard	Non-Shorting (BBM)	Silver	SPDT	Right Angle Through Hole	9 mm	30 V
E-Switch EG2219					500 mA	On-On	PC Pin	-20 ░C	70 °C	Standard	Non-Shorting (BBM)	Silver	DPDT	Right Angle Through Hole	9 mm	15 V	Copper Alloy
E-Switch EG2301C				2 mm	200 mA	On-On-On	PC Pin	-20 ░C	70 °C	Standard	Not Specified	Silver	DP3T	Through Hole	12 mm	30 V	Copper Alloy	300 gf	200 gf
E-Switch EG2208					200 mA	On-On	PC Pin	-20 ░C	70 °C	Standard	Not Specified	Silver	DPDT	Right Angle Through Hole	4 mm	30 V	Copper Alloy

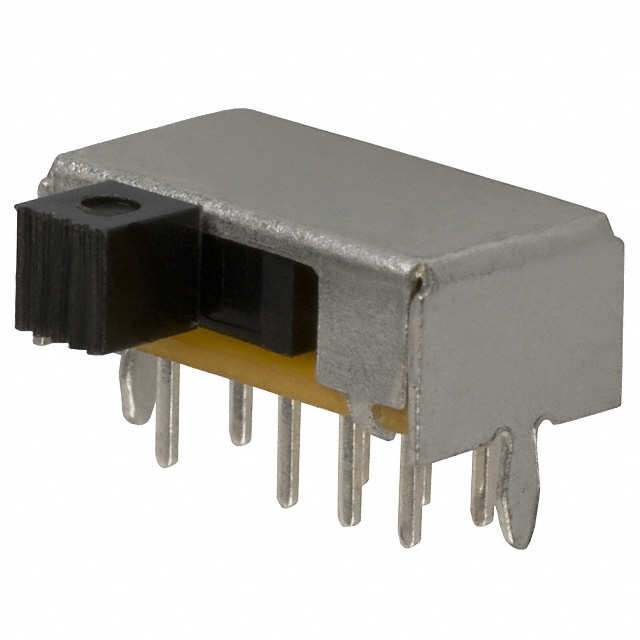

E-Switch EG2315				2 mm	200 mA	On-On-On	PC Pin	-20 ░C	70 °C	Standard	Not Specified	Silver	DP3T	Right Angle Through Hole		30 V	Copper Alloy	250 gf	200 gf
E-Switch EG2335	10000 Cycles		10000 Steps	2 mm	300 mA	On-On-On	PC Pin	-20 ░C	70 °C	Standard	Not Specified	Silver	DP3T	Right Angle Through Hole	5 mm	30 V		350 gf	250 gf
E-Switch EG4208A					200 mA	On-On	PC Pin	-20 ░C	70 °C	Standard	Not Specified	Silver	4PDT	Right Angle Through Hole	6 mm	30 V	Copper Alloy

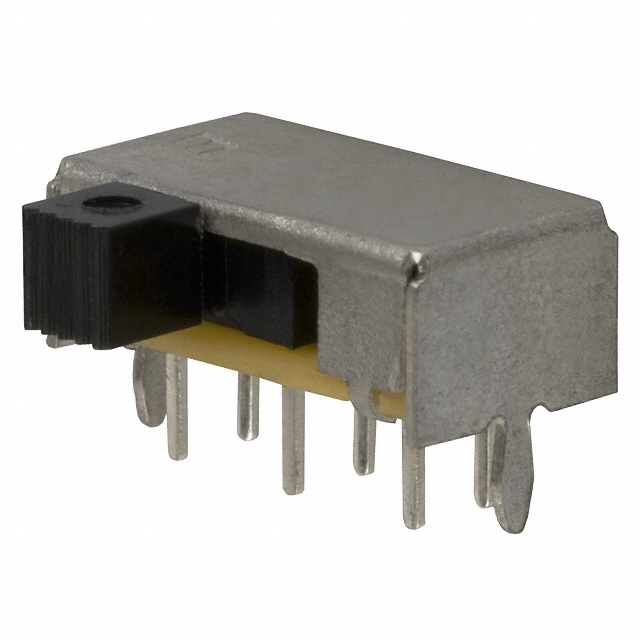

E-Switch EG2215		0.25 kgf		4 mm	200 mA	On-On	PC Pin	-20 ░C	70 °C	Standard	Not Specified	Silver	DPDT	Right Angle Through Hole		30 V	Copper Alloy

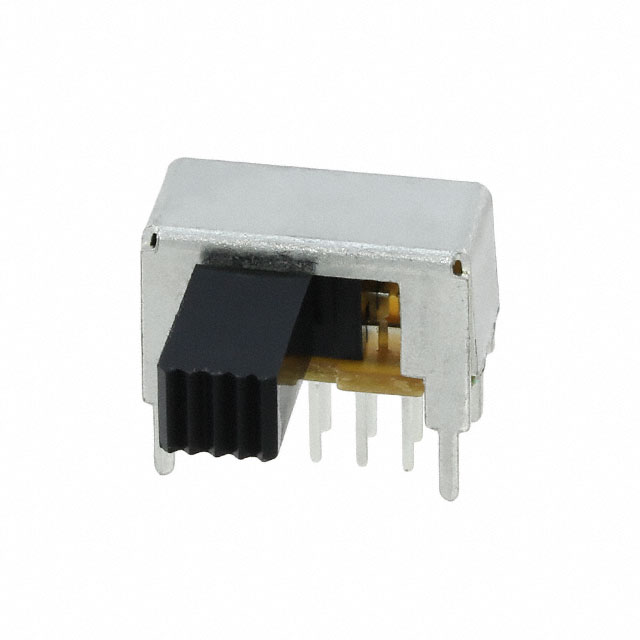

E-Switch EG2319				2 mm	500 mA	On-On-On	PC Pin	-20 ░C	70 °C	Standard	Not Specified	Silver	DP3T	Right Angle Through Hole	8.8 mm	15 V	Copper Alloy	300 gf	250 gf
