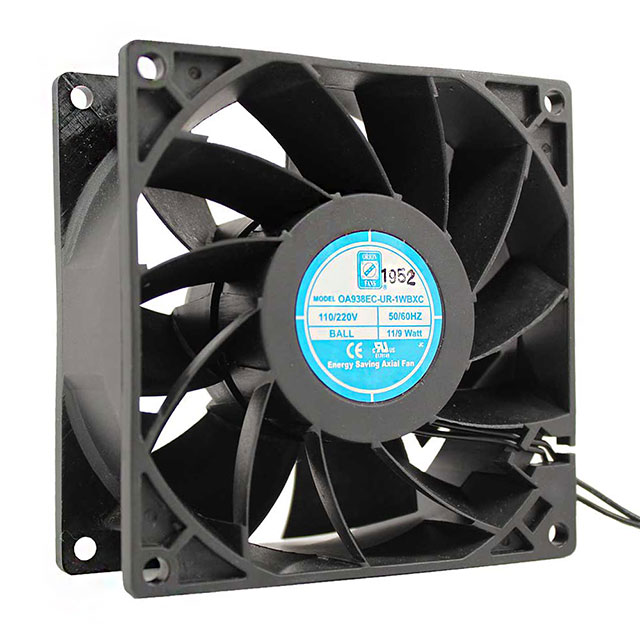

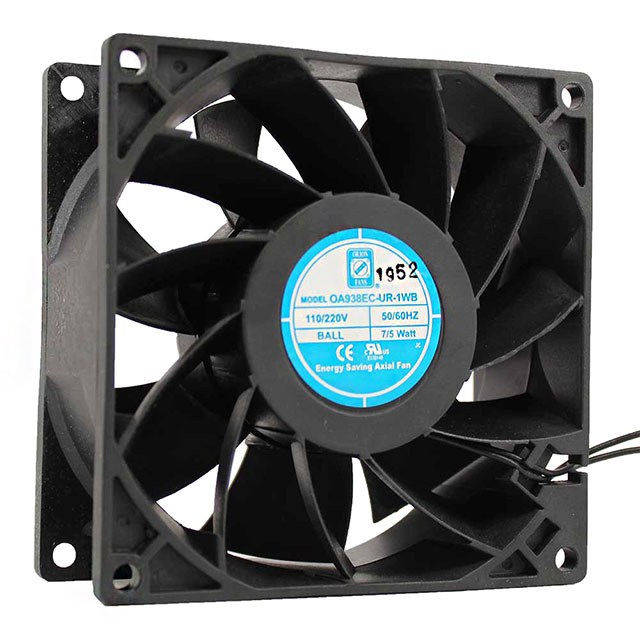

OA938EC Series
Manufacturer: ORION FANS
Beta
⌘K
AC AXIAL FAN, 110V / 220V, SQUARE, 92 MM, 38 MM, BALL BEARING, 88 CFM
| Part | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Material - Blade | Power (Watts) | Termination | Air Flow | Air Flow | Width [y] | RPM | Voltage - Rated [Max] | Voltage - Rated [Min] | Features | Static Pressure | Static Pressure | Approval Agency | Weight [custom] | Weight [custom] | Bearing Type | Size / Dimension [y] | Size / Dimension [x] | Fan Type | Operating Temperature [Max] | Operating Temperature [Min] | Noise | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 265 VAC | 85 VAC | 70000 Hrs | Polybutylene Terephthalate (PBT) | 7.9 W | 2 Wire Leads | 2.46 mł/min | 88 CFM | 38 mm | 4200 RPM | 220 VAC | 110 VAC | Dual Voltage Electronic Commutation (EC) | 124.5 Pa | 0.5 in H2O | CE cURus TUV UR | 190.51 g | 0.42 lb | Ball | 92 mm | 92 mm | Tubeaxial | 70 °C | -10 °C | 52 dB | |
 ORION FANS | 265 VAC | 85 VAC | 70000 Hrs | Polybutylene Terephthalate (PBT) | 2.2 W | 2 Wire Leads | 1.68 m³/min | 60 CFM | 38 mm | 3000 RPM | 220 VAC | 110 VAC | Dual Voltage Electronic Commutation (EC) | 67.2 Pa | CE cURus TUV UR | 190.51 g | 0.42 lb | Ball | 92 mm | 92 mm | Tubeaxial | 70 °C | -10 °C | 43 dB | 0.27 in H2O |
