MP0045 Series

Catalog

VANDAL RESISTANT SWITCH, DPDT, NATURAL, MP0045/1D SERIES, MOMENTARY, AMBER, SOLDER LUG

Part	Mechanical Life	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Actuator Marking	Termination Style	Voltage Rating - AC	Illumination Type, Color	Current Rating (Amps)	Circuit	Ingress Protection	Features	Illumination Voltage (Nominal)	Switch Function	Mounting Type	Type

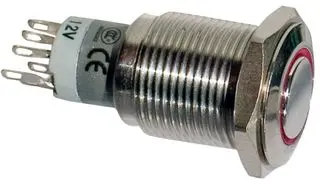

BULGIN LIMITED MP0045/1D2AM012	200000 Cycles	30000 Cycles	55 °C	-20 ░C	Button Flush Round	Silver	16.2 mm	No Marking	Solder Lug	250 V	Amber LED	3 A	DPDT	IP40	Stainless Steel	12 VDC	On-Mom	Panel Mount Front	Illuminated Standard
BULGIN LIMITED MP0045/1D1RD220S	200000 Cycles	30000 Cycles	55 °C	-20 ░C	Button Flush Round	Silver	16.2 mm	No Marking	Solder Lug	250 V	LED Red	3 A	DPDT	IP67 - Dust Tight Waterproof	Stainless Steel	220 V	On-Mom	Panel Mount Front	Illuminated Standard
BULGIN LIMITED MP0045/1D2AM012S	200000 Cycles	30000 Cycles	55 °C	-20 ░C	Button Flush Round	Silver	16.2 mm	No Marking	Solder Lug	250 V	Amber LED	3 A	DPDT	IP67 - Dust Tight Waterproof	Stainless Steel	12 VDC	On-Mom	Panel Mount Front	Illuminated Standard
BULGIN LIMITED MP0045/1E2GN012S	200000 Cycles	30000 Cycles	55 °C	-20 ░C	Button Flush Round	Silver	16.2 mm	No Marking	Solder Lug	250 V	Green LED	3 A	DPDT	IP67 - Dust Tight Waterproof	Stainless Steel	12 VDC	On-On	Panel Mount Front	Illuminated Standard
BULGIN LIMITED MP0045/1D2RD220S	200000 Cycles	30000 Cycles	55 °C	-20 ░C	Button Flush Round	Silver	16.2 mm	No Marking	Solder Lug	250 V	LED Red	3 A	DPDT	IP67 - Dust Tight Waterproof	Stainless Steel	220 V	On-Mom	Panel Mount Front	Illuminated Standard
BULGIN LIMITED MP0045/1E1RD012S	200000 Cycles	30000 Cycles	55 °C	-20 ░C	Button Flush Round	Silver	16.2 mm	No Marking	Solder Lug	250 V	LED Red	3 A	DPDT	IP67 - Dust Tight Waterproof	Stainless Steel	12 VDC	On-On	Panel Mount Front	Illuminated Standard
BULGIN LIMITED MP0045/1D2GN220S	200000 Cycles	30000 Cycles	55 °C	-20 ░C	Button Flush Round	Silver	16.2 mm	No Marking	Solder Lug	250 V	Green LED	3 A	DPDT	IP67 - Dust Tight Waterproof	Stainless Steel	220 V	On-Mom	Panel Mount Front	Illuminated Standard
BULGIN LIMITED MP0045/1E1RD220S	200000 Cycles	30000 Cycles	55 °C	-20 ░C	Button Flush Round	Silver	16.2 mm	No Marking	Solder Lug	250 V	LED Red	3 A	DPDT	IP67 - Dust Tight Waterproof	Stainless Steel	220 V	On-On	Panel Mount Front	Illuminated Standard

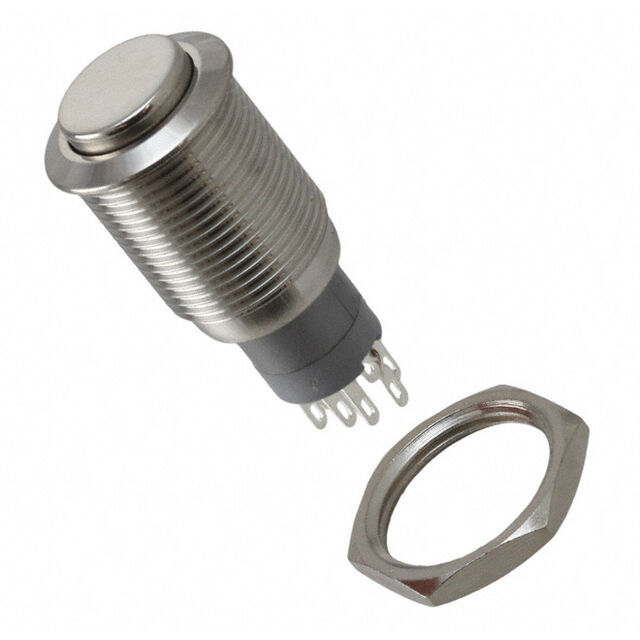

BULGIN LIMITED MP0045/3D0NN000	200000 Cycles	30000 Cycles	55 °C	-20 ░C	Button Round	Silver	16.2 mm	No Marking	Solder Lug	250 V		3 A	DPDT	IP40	Stainless Steel		On-Mom	Panel Mount Front	Standard
BULGIN LIMITED MP0045/1E2BL220S	200000 Cycles	30000 Cycles	55 °C	-20 ░C	Button Flush Round	Silver	16.2 mm	No Marking	Solder Lug	250 V	Blue LED	3 A	DPDT	IP67 - Dust Tight Waterproof	Stainless Steel	220 V	On-On	Panel Mount Front	Illuminated Standard
