IRF733 Series

Manufacturer: INFINEON

Catalog

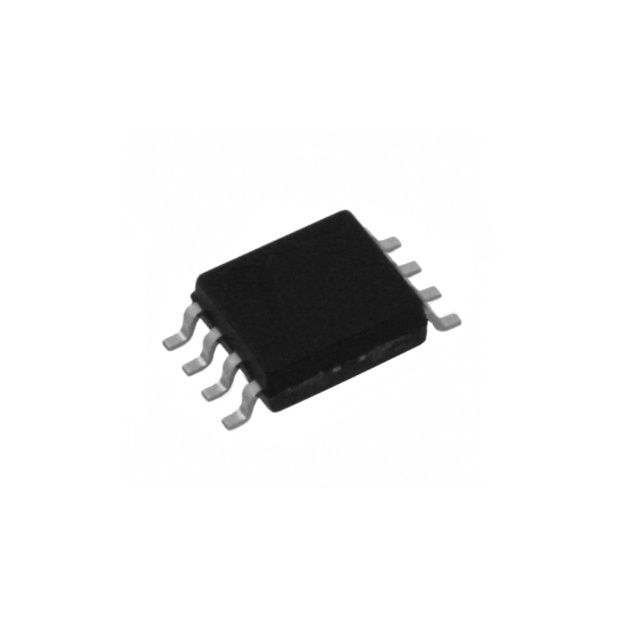

MOSFET 2N-CH 20V 7A 8SO

Part	Power - Max [Max]	Mounting Type	Configuration	Gate Charge (Qg) (Max) @ Vgs [Max]	Package / Case	Package / Case	Package / Case	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Max]	Operating Temperature [Min]	Drain to Source Voltage (Vdss)	Technology	Input Capacitance (Ciss) (Max) @ Vds	FET Feature	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs	Package / Case
INFINEON IRF7331PBF	2 W	Surface Mount	2 N-Channel (Dual)	20 nC	0.154 in	8-SOIC	3.9 mm	7 A	150 °C	-55 °C	20 V	MOSFET (Metal Oxide)	1340 pF	Logic Level Gate	1.2 V	30 mOhm	8-SO
INFINEON IRF7338PBF	2 W	Surface Mount	N and P-Channel		0.154 in	8-SOIC	3.9 mm	3 A 6.3 A	150 °C	-55 °C	12 V	MOSFET (Metal Oxide)	640 pF	Logic Level Gate	1.5 V	34 mOhm	8-SO	8.6 nC
INFINEON IRF7331TRPBF	2 W	Surface Mount	2 N-Channel (Dual)	20 nC	0.154 in	8-SOIC	3.9 mm	7 A	150 °C	-55 °C	20 V	MOSFET (Metal Oxide)	1340 pF	Logic Level Gate	1.2 V	30 mOhm	8-SO
INFINEON IRF7331TRPBF-1	2 W	Surface Mount	2 N-Channel (Dual)	20 nC	0.154 in	8-SOIC	3.9 mm	7 A	150 °C	-55 °C	20 V	MOSFET (Metal Oxide)	1340 pF		1.2 V	30 mOhm	8-SOIC
INFINEON IRF7331TR	2 W	Surface Mount	2 N-Channel (Dual)	20 nC	0.154 in	8-SOIC	3.9 mm	7 A	150 °C	-55 °C	20 V	MOSFET (Metal Oxide)	1340 pF	Logic Level Gate	1.2 V	30 mOhm	8-SO
INFINEON IRF7335D1TR	2 W	Surface Mount	2 N-Channel (Dual) Asymmetrical	20 nC		14-SOIC		10 A	150 °C	-55 °C	30 V	MOSFET (Metal Oxide)	1500 pF	Logic Level Gate	1 V	17.5 mOhm			0.154 in 3.9 mm
INFINEON IRF7331	2 W	Surface Mount	2 N-Channel (Dual)	20 nC	0.154 in	8-SOIC	3.9 mm	7 A	150 °C	-55 °C	20 V	MOSFET (Metal Oxide)	1340 pF	Logic Level Gate	1.2 V	30 mOhm	8-SO
