M5131 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

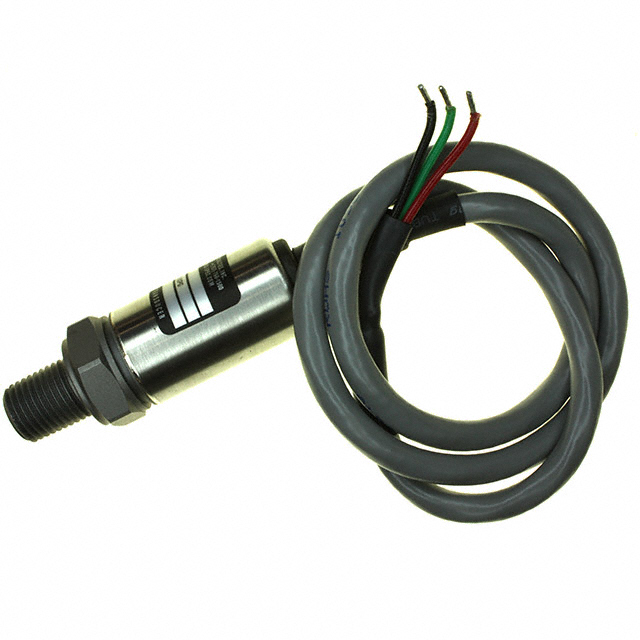

SENSOR PRESSURE 1KPSIG ANALOG
| Part | Applications | Output Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Port Style | Pressure Type | Operating Temperature [Max] | Operating Temperature [Min] | Maximum Pressure | Maximum Pressure [Max] | Output [Max] | Output [Min] | Termination Style | Port Size | Port Size | Port Size | Features | Package / Case | Operating Pressure | Operating Pressure | Accuracy | Maximum Pressure | Maximum Pressure [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Industrial Automation | Analog Voltage | 4.75 V | 5.25 V | Threaded | Vented Gauge | 125 °C | -40 C | 13789.51 kPa | 2000 PSI | 4.5 V | 0.5 V | Cable 2' | Male NPT | 0.25 " | 0.25 in | Temperature Compensated | Cylinder | 6894.76 kPa | 1000 PSI | 1 % | ||

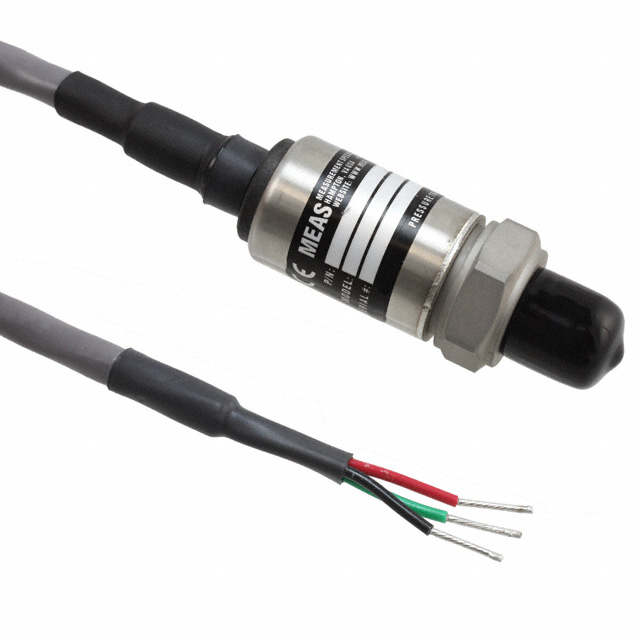

 TE Connectivity AMP Connectors | Industrial Automation | Analog Voltage | 4.75 V | 5.25 V | Threaded | Vented Gauge | 125 °C | -40 C | 3447.38 kPa | 4.5 V | 0.5 V | Cable 2' | Male NPT | 0.25 " | 0.25 in | Temperature Compensated | Cylinder | 1723.69 kPa | 250 PSI | 1 % | 500 PSI | ||
 TE Connectivity AMP Connectors | Industrial Automation | Analog Voltage | 4.75 V | 5.25 V | Threaded | Vented Gauge | 125 °C | -40 C | 6894.76 kPa | 4.5 V | 0.5 V | Cable 2' | Male NPT | 0.25 " | 0.25 in | Temperature Compensated | Cylinder | 3447.38 kPa | 500 PSI | 1 % | 1000 PSI | ||
 TE Connectivity AMP Connectors | Industrial Automation | Analog Voltage | 4.75 V | 5.25 V | Threaded | Vented Gauge | 125 °C | -40 C | 34473.79 kPa | 4.5 V | 0.5 V | Cable 2' | Male NPT | 0.25 " | 0.25 in | Temperature Compensated | Cylinder | 17236.89 kPa | 2500 PSI | 1 % | 5000 PSI | ||

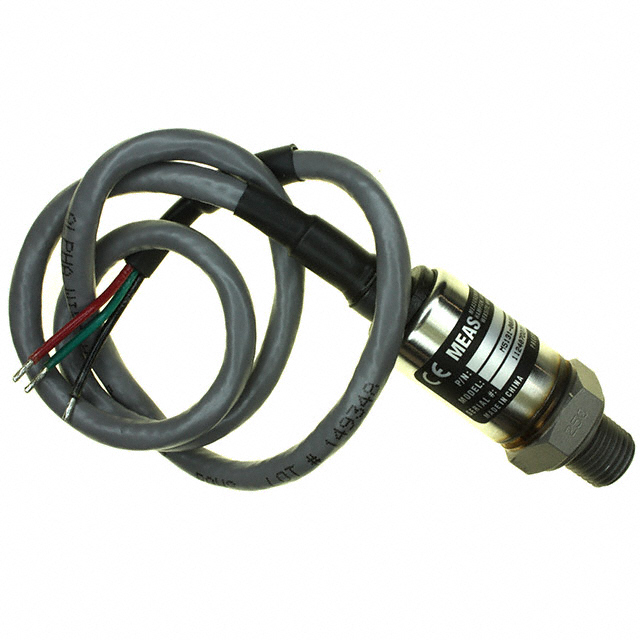

 TE Connectivity AMP Connectors | Industrial Automation | Analog Voltage | 4.75 V | 5.25 V | Threaded | Vented Gauge | 125 °C | -40 C | 1034.21 kPa | 4.5 V | 0.5 V | Cable 2' | Male NPT | 0.25 " | 0.25 in | Temperature Compensated | Cylinder | 517.11 kPa | 75 PSI | 1 % | 150 PSI | ||

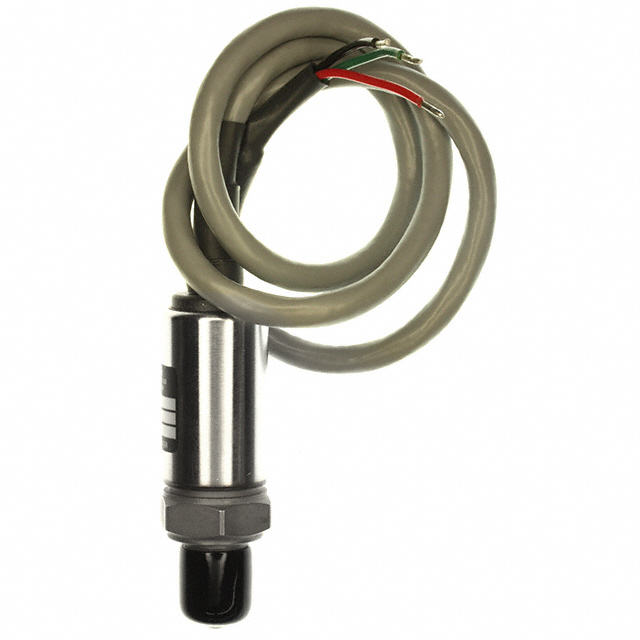

 TE Connectivity AMP Connectors | Industrial Automation | Analog Voltage | 4.75 V | 5.25 V | Threaded | Vented Gauge | 125 °C | -40 C | 10000 PSI | 4.5 V | 0.5 V | Cable 2' | Male NPT | 0.25 " | 0.25 in | Temperature Compensated | Cylinder | 34473.79 kPa | 5000 PSI | 1 % | 68947.57 kPa | ||

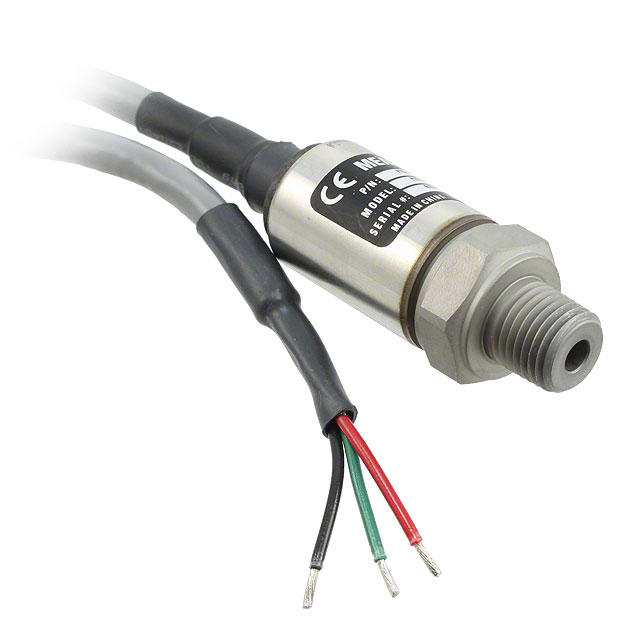

 TE Connectivity AMP Connectors | Industrial Automation | Analog Voltage | 4.75 V | 5.25 V | Threaded | Vented Gauge | 125 °C | -40 C | 689.48 kPa | 4.5 V | 0.5 V | Cable 2' | Male NPT | 0.25 " | 0.25 in | Temperature Compensated | Cylinder | 344.74 kPa | 50 PSI | 1 % | 100 PSI |
